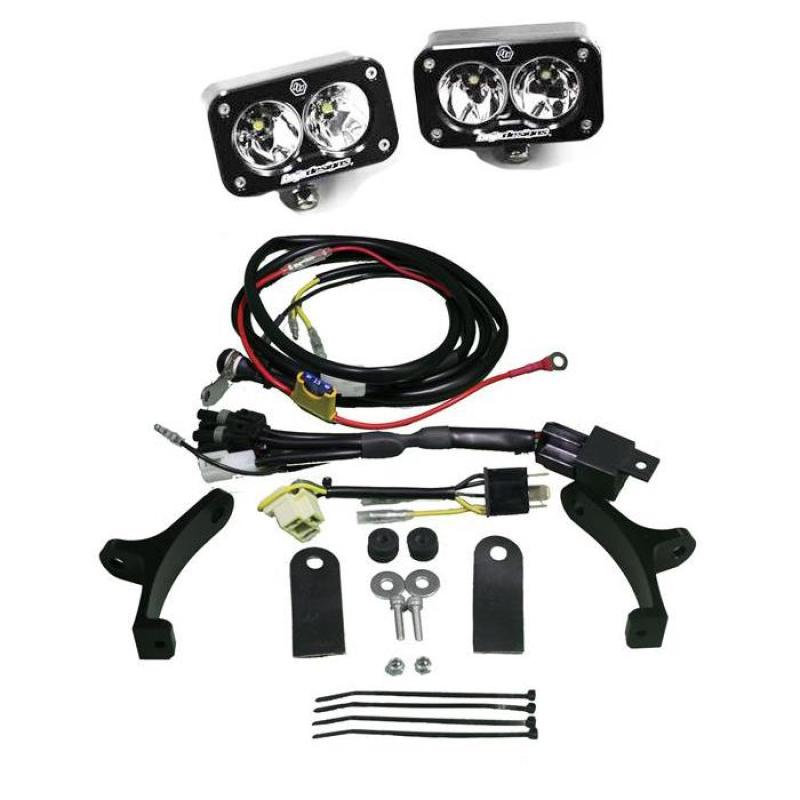

Baja Designs 05-07 KTM LED Light Kits KTM Squadron Pro 497041
Specifically designed for those riders who are looking for more than just your average headlight. The Squadron Pro, LED KTM 2005-2007 Kit is in a league of its own, producing 4,300 lumens and 40 watts giving you the perfect mix of power and performance. The Squadron Pro, LED KTM 2005-2007 Kit has been meticulously designed by our engineers to give our riders an extremely light weight (12 ounces) race light, while presenting a unique style and appearance that you will only find from Baja Designs. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Only plug and play for the 2007 EXC’s. Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
Only plug and play for the 2007 EXC’s. Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header.
SKU: 490003
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | Cree LED (2 Types) |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
