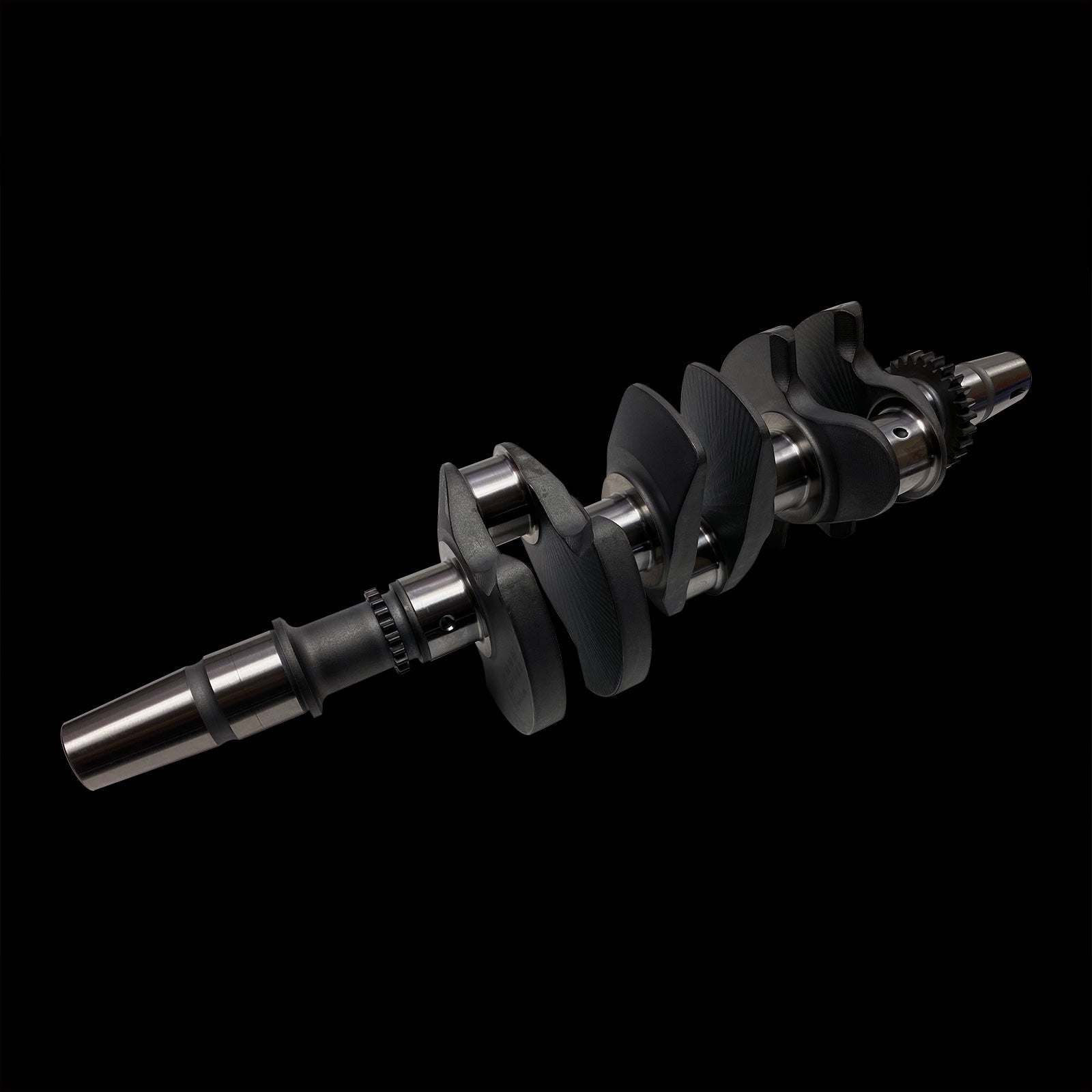

Brian Crower CAN-AM X3 (17-up) Large Radius EN40B BILLET CRANKSHAFT (73.5mm STROKE) BC5933

Brian Crower CAN-AM X3 (17-up) Large Radius EN40B BILLET CRANKSHAFT (73.5mm STROKE) BC5933

sku: 9IU36 | mpn: BC5933
Regular price $2,000.00
Regular price $3,360.00 Sale price $2,000.00
Sale Sold out
Shipping calculated at checkout.

30 in stock

Emissions

This is not an emissions item.
Quantity
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

EN40B billet, large radius snout with an added .080" O.D. snout diameter and no radius around the timing chain area to handle the most aggressive clutch and anti-lag setups. Builds full boost 2000 rpm sooner than stock stroke with unlimited boost capabilities. CNC machined from EN40B billet round bar, the hardest material available with through hardening capabilities not possible on standard 4340 steel. All cranks are stress relieved, shot peened, magna flux inspected and nitrided (multi step heat treatment) for ultimate performance. Fully profiled counterweights are designed for reduced windage through the crankcase creating less oil resistance for better rpm potential. These cranks are fully system balanced to the following bobweight:

• BC Rod (BC6935 w/20mm Pin): 398g
• CP Piston (75mm bore): 225g
• CP Pin (20mm OD, .220” wall: 90g
• CP Ring Pack: 17g
• ACL Bearings: 24g
• CP Locks: 2g
Stroke 73.5mm
Rod Journal 36mm
Main Journal 36mm
Weight 19.2 Lbs
