AutoMeter Stack Multi-Function Dash Display Logger (MFD) 0-8K RPM - Black ST8916S-A
AutoMeter Stack Multi-Function Dash Display Logger (MFD) 0-8K RPM - Black ST8916S-A
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
- Shipping dimensions (L × W × H)
- Shipping weight
- 6.0 lb
- Barcode
- 46074157011
Billable shipping weight; may include dimensional weight.
AM Stack Gauges
Electronic Multi-Purpose Gauge
STACK INSTRUMENTS

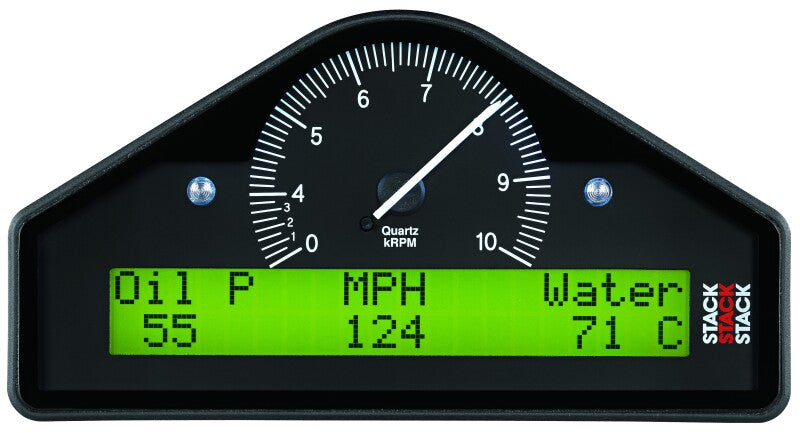

The St8916 Multi-Function Display System Combines The Proven Benefits Of Integrated Stack Display Systems With The Latest Stack Multi-Function Technology. The Stack Mfd Comes Standard With 14 Inputs (Enough To Handle Most Drivetrain And Driver Input Data Streams) And Can Be Expanded To Monitor Up To 45 Channels For More Advanced Users. System Includes Internal Voltage Channel, 3 +/- 6G Internal Accelerometers, And Lap Sensor Channel Standard As Well As 4 Universal Pulse (Speed) / Analog (0-5V) Inputs And 6 Standard Analog (0-5V) Inputs. Lap Beacon Receiver And Wheel Speed Sensor Standard, To Enable Engine Rpm, Wheelspeed, G-Force Data And Track Mapping Out Of The Box. Stack Mfds Have 32Mb Of Memory, And User Selectable Channel Recording Frequencies Of Up To 200Hz (200 Samples Per Second) With 10 Bit Resolution (16 Bit Digital Inputs Optional), With A Maximum System Sample Rate Of 4000 Samples Per Second For A Total Of 20 Channels Able To Be Recorded At Maximum Frequencies For Extremely Detailed Data Analysis.
Stack Instruments Series, Multi-Function Dash Display Logger (Mfd), Black, 0-8K RPM
