• Autometer Line, Braided Stainless Steel, #3 Dia., 3Ft. Length, -3An & 1/8" Npt 3234 Photo - Primary
  • Autometer Line, Braided Stainless Steel, #3 Dia., 3Ft. Length, -3An & 1/8" Npt 3234 Logo Image
1 2
Autometer Authorized Dealer

Autometer Line, Braided Stainless Steel, #3 Dia., 3Ft. Length, -3An & 1/8" Npt

Autometer Line, Braided Stainless Steel, #3 Dia., 3Ft. Length, -3An & 1/8" Npt

sku: 075WT | mpn: 3234
$76.09
$76.09
Sale Sold out
Shipping calculated at checkout.

18 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

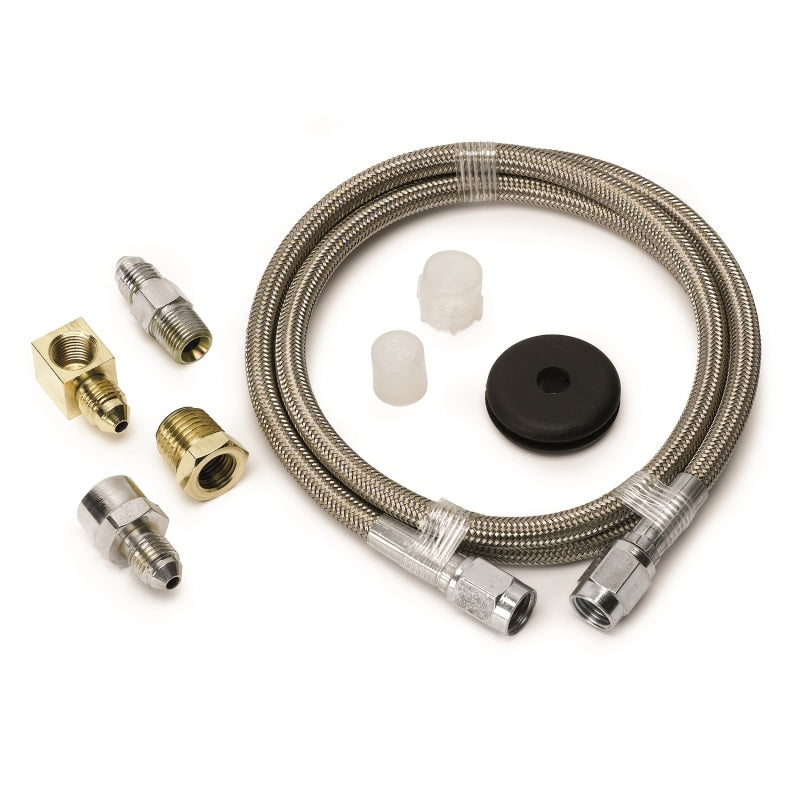

Includes 3ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Feature Points

  • 3ft hose length
  • PTFE lined hose, resistant to most fluids
  • Type 304 Stainless braid
  • Maximum Operating Pressure - 3000 PSI
  • Burst Pressure - 12,000 PSI
  • `-65 °F to 450 °F Operating Temperature Range
  • Includes 1/8"NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings
View full details
