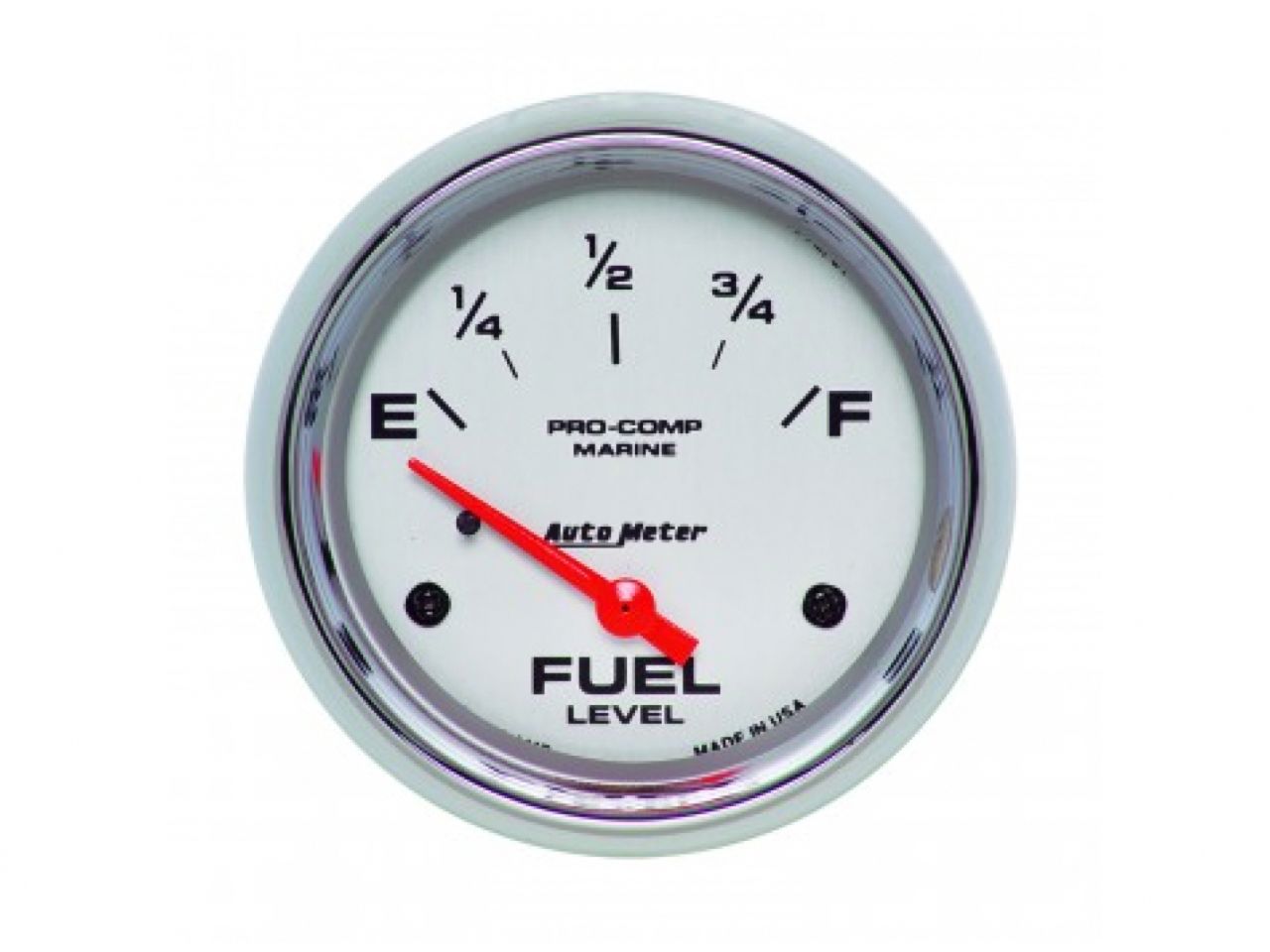

Autometer Gauge, Fuel Level, 2 5/8", 240E to 33F, Elec, Marine Chrome

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering a variety of different fuel level gauges to match the resistance range of your existing fuel sending unit. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks. Don’t get stranded down the road or at the track.

Feature Points

Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage

Requires AutoMeter sending unit 990345 or equivalent 240E/33F fuel level sender

12 and 16 volt compatible, well-suited with nearly every marine electrical system

Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation

12 month limited warranty

AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat

Traditional incandescent lighting illuminates around the perimeter of the dial

Specification:

Size: 2-5/8" (66.7mm)

Type: Air-Core

Range: 240 Ω Empty / 33 Ω Full

Lighting: Incandescent
