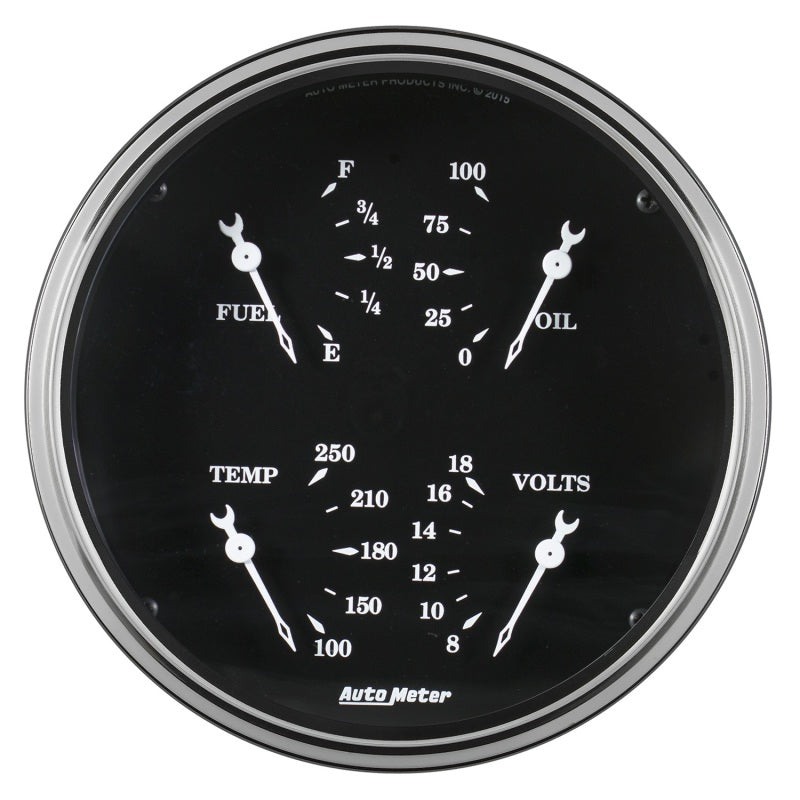

Autometer 5" Quad Gauge, 240-33 ?, Old Tyme Black

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Features:

Traditional incandescent lighting illuminates around the perimeter of the dial

4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Specifications:

• Size: 5" (127mm)
• Type: Air-Core
• Range: 100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
• Lighting: Incandescent
