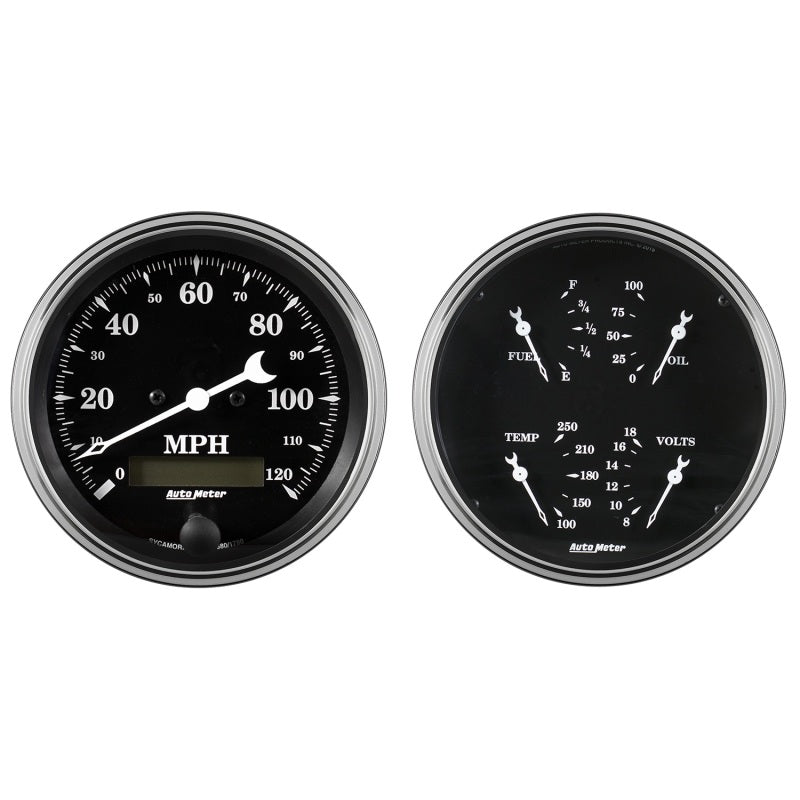

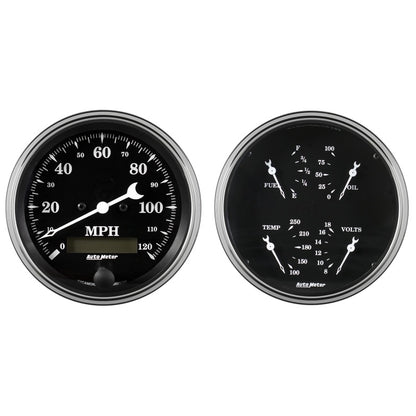

Autometer Old Tyme Black Series; 2 Piece Gauge Kit; Electric

Save space on your dash and provide a clean look with AutoMeter’s Electronic Tach/Speedo Combo. Taking the highly precise circuits from the individual speedometer and tach and combining them into one unit gives you the accuracy and the response time you need and the convenience of a one piece solution. Compatible with nearly any factory speed sender and 1-12 cylinder applications, this unit is simple to calibrate and designed with the type of durability you expect in an AutoMeter gauge. AutoMeter’s GPS Speed Sender is also compatible for an easy, plug and play solution.

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).

Feature Points

Traditional incandescent lighting illuminates around the perimeter of the dial

Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.

AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.

Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.

Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers

4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters

Specifications:

• Size: 5" (127mm)
• Type:Air-Core
• Range:120 MPH/100 PSI/100-250 °F/8-18V/240ΩE-33ΩF
• Lighting:Incandescent
