ATS Diesel 68RFE Five Star Torque Converter - Mid Stall
ATS Diesel 68RFE Five Star Torque Converter - Mid Stall
Out of stock
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

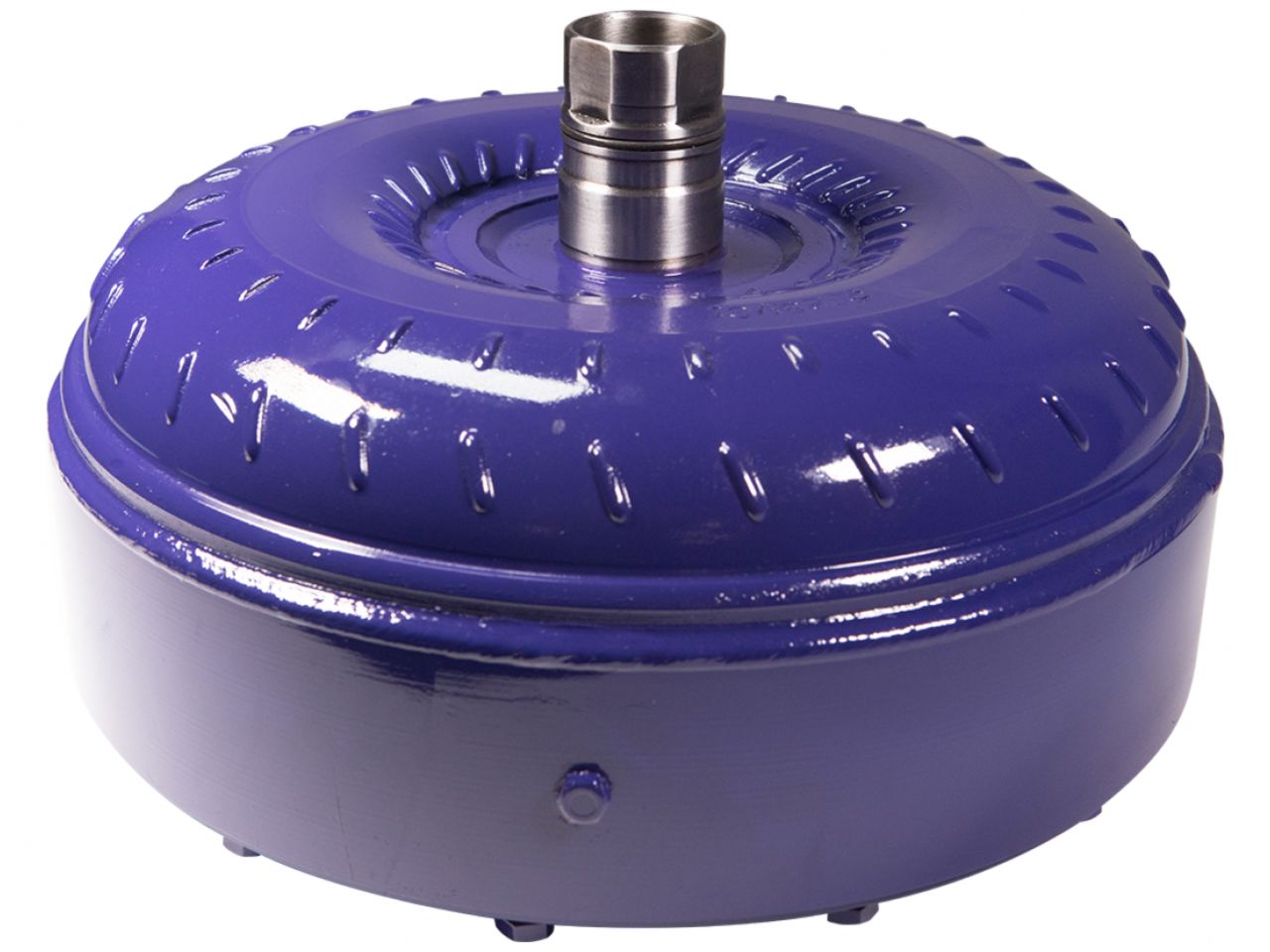

Standard in all transmission packages, and available individually, is the ATS Five Star Torque Converter. This torque converter is built to handle daily driving and towing duties while delivering reliable performance.
The ATS Five Star utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS Five Star boasts 2.4:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.
Specifications
Dimensions: 15L x 15W x 11H
Weight: 79 Lbs
Key features of the ATS Five Star Torque Converter include:
- Patented Viskus Clutch Drive System for increased efficiency
- Billet Cover with Patented Square Flank Drive
- Square Tab Construction (Not Round)
- Viskus Disc CNC Laser Cut Clutch Plates
- Billet Piston with Patented Flank Drive Tab design
- Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)
- Redesigned Spring Dampener supports increased torque loads
- 4340 hardened turbine splines provide longevity and reliability
- Fully welded turbine and impeller vanes
- CNC Stator with high flow windows increase oil flow, providing increased efficiency
- Full roller bearing construction between high load areas
- 4340 CNC cut pump drive hub locked into impeller housing
- Plasma welded for unsurpassed strength
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009 | Dodge | Ram 2500 | Crew |
| 2008 | Dodge | Ram 2500 | SLT Big Horn |
| 2007 - 2008 | Dodge | Ram 2500 | SLT Sport |
| 2007 | Dodge | Ram 2500 | Sport, TRX4 |
| 2007 - 2010 | Dodge | Ram 2500 | ST, Power Wagon, Laramie, SLT |
| 2008 - 2010 | Dodge | Ram 2500 | SXT |
| 2010 | Dodge | Ram 2500 | TRX |
| 2007 - 2010 | Dodge | Ram 3500 | SLT, Laramie, ST |
| 2008 - 2010 | Dodge | Ram 3500 | SXT |
| 2007 | Dodge | Ram 3500 | TRX4, Sport |
| 2013 - 2015 | Ram | 2500 | Big Horn, Lone Star, Tradesman |
| 2012 - 2015 | Ram | 2500 | Hemi Sport, R/T |
| 2014 - 2015 | Ram | 2500 | Laramie Limited |
| 2011 | Ram | 2500 | SLT Sport |
| 2011 - 2015 | Ram | 2500 | ST, Power Wagon, SLT, Outdoorsman, Laramie Longhorn, Laramie |
| 2011 - 2013 | Ram | 2500 | SXT |
| 2013 - 2015 | Ram | 3500 | Big Horn, Lone Star, Tradesman |
| 2014 - 2015 | Ram | 3500 | Laramie Limited |
| 2011 - 2015 | Ram | 3500 | Laramie, Laramie Longhorn, SLT, ST |
| 2011 - 2013 | Ram | 3500 | SXT |
