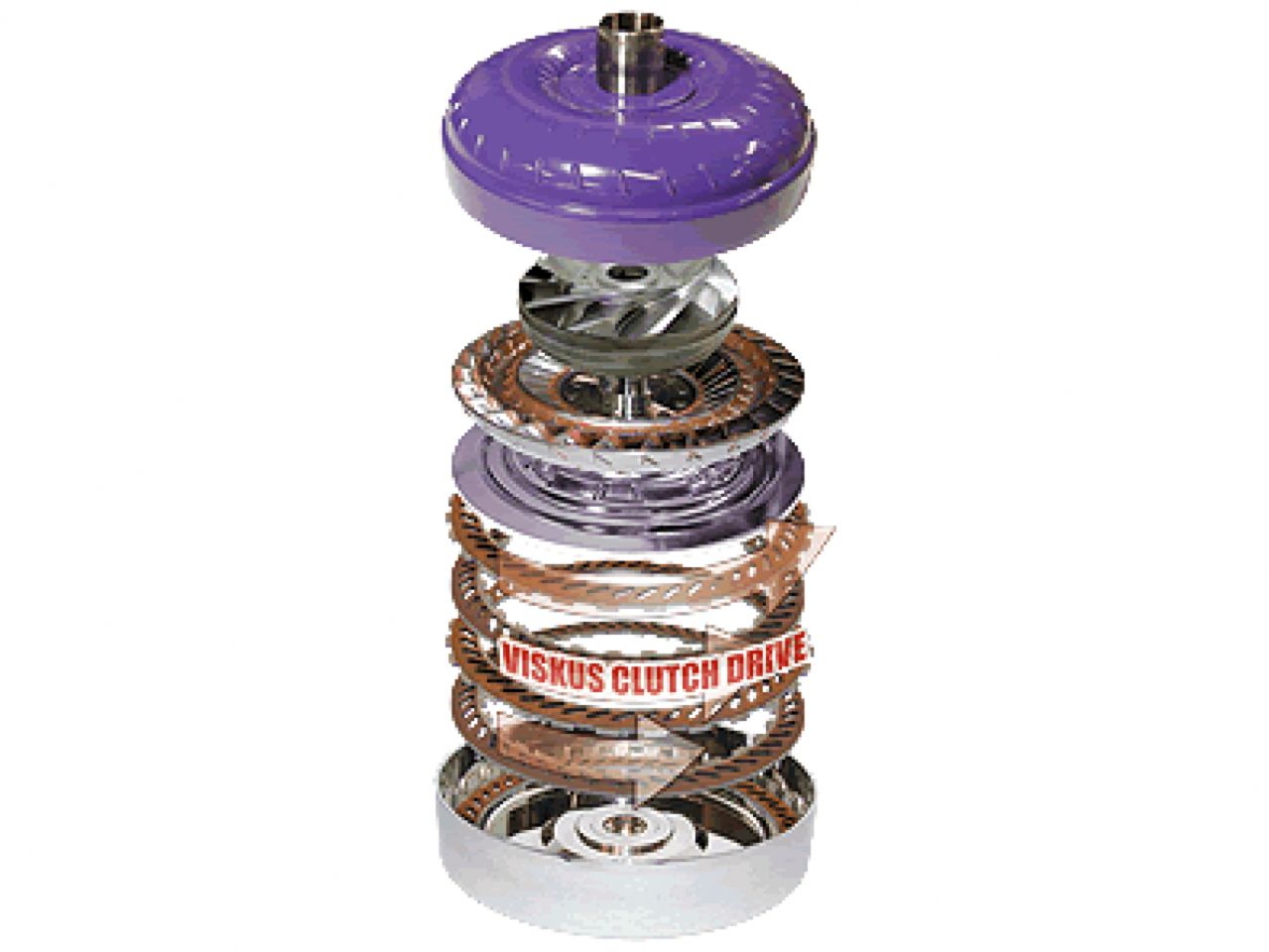

ATS Diesel 1994 - Early 07 Dodge 47RH/47RE/48RE TripleLok Torque Converter

• Patented Viskus Clutch Drive System for increased efficiency

• Billet Cover with Patented Square Flank Drive

• Square Tab Construction (Not Round)

• Viskus Disc CNC Laser Cut Clutch Plates

• Billet Piston with Patented Flank Drive Tab design

• Proprietary ATS exclusive Clutch Formulation with unique bonding technology (ensures 100% chemical Bond)

• Redesigned Spring Dampener supports increased torque loads

• 4340 hardened turbine splines provide longevity and reliability

• Fully welded turbine and impeller vanes

• Custom Stator with high flow windows increase oil flow, providing increased efficiency

• Full roller bearing construction between high load areas

• 4340 CNC cut pump drive hub locked into the impeller housing

• Plasma welded for unsurpassed strength

The ATS TripleLok utilizes an optimized factory stall speed that features improved torque multiplication. With factory torque multiplication at approximately 1.25:1, the ATS TripleLok increases it to 2.0:1. This occurs when peak engine torque is achieved. Increased torque multiplication results in improved vehicle response, towing and driving ability.

Every TripleLok comes standard with a 5 year / 500,000 mile warranty. When the most efficient torque converter is required, look no further than ATS' TripleLok Torque Converter.
