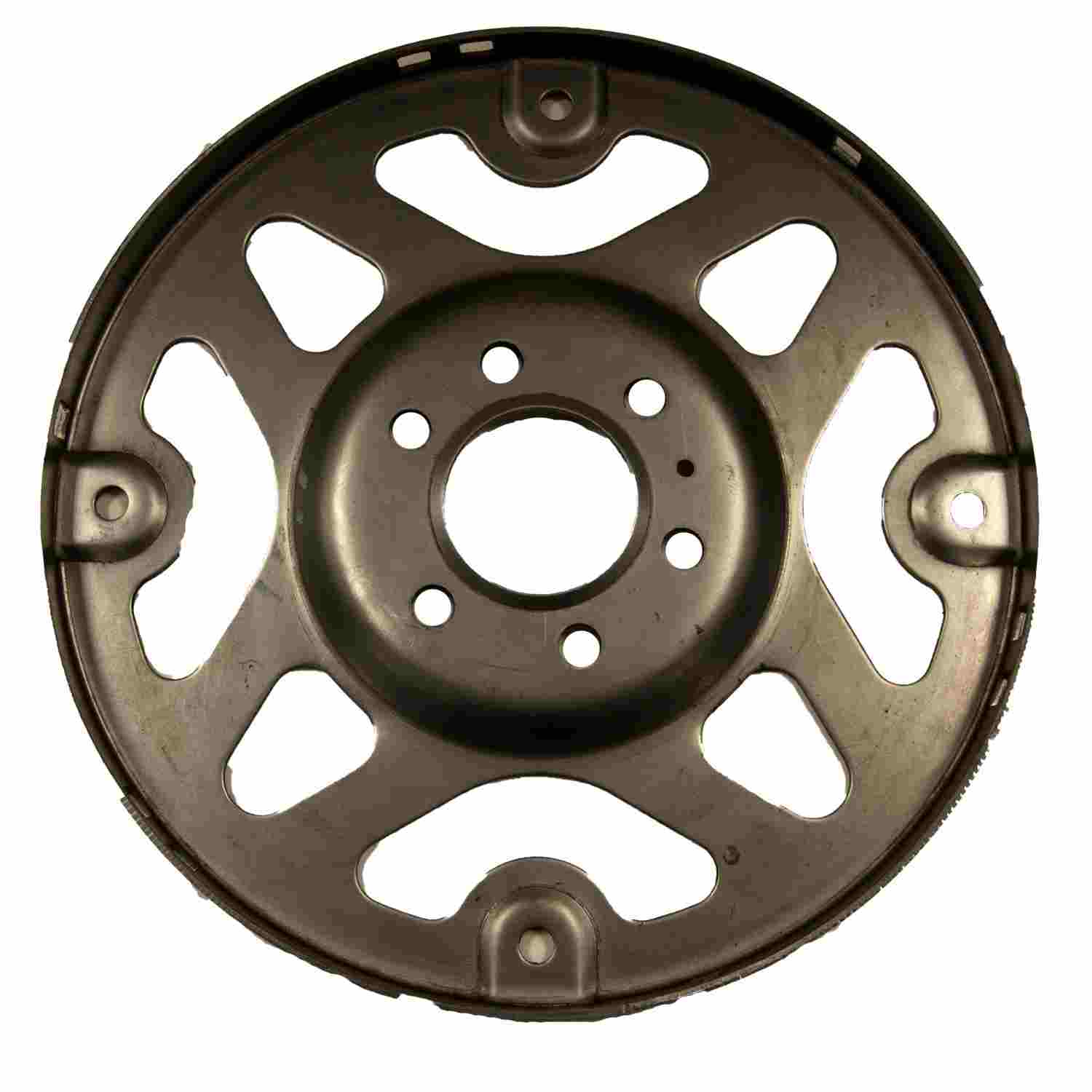

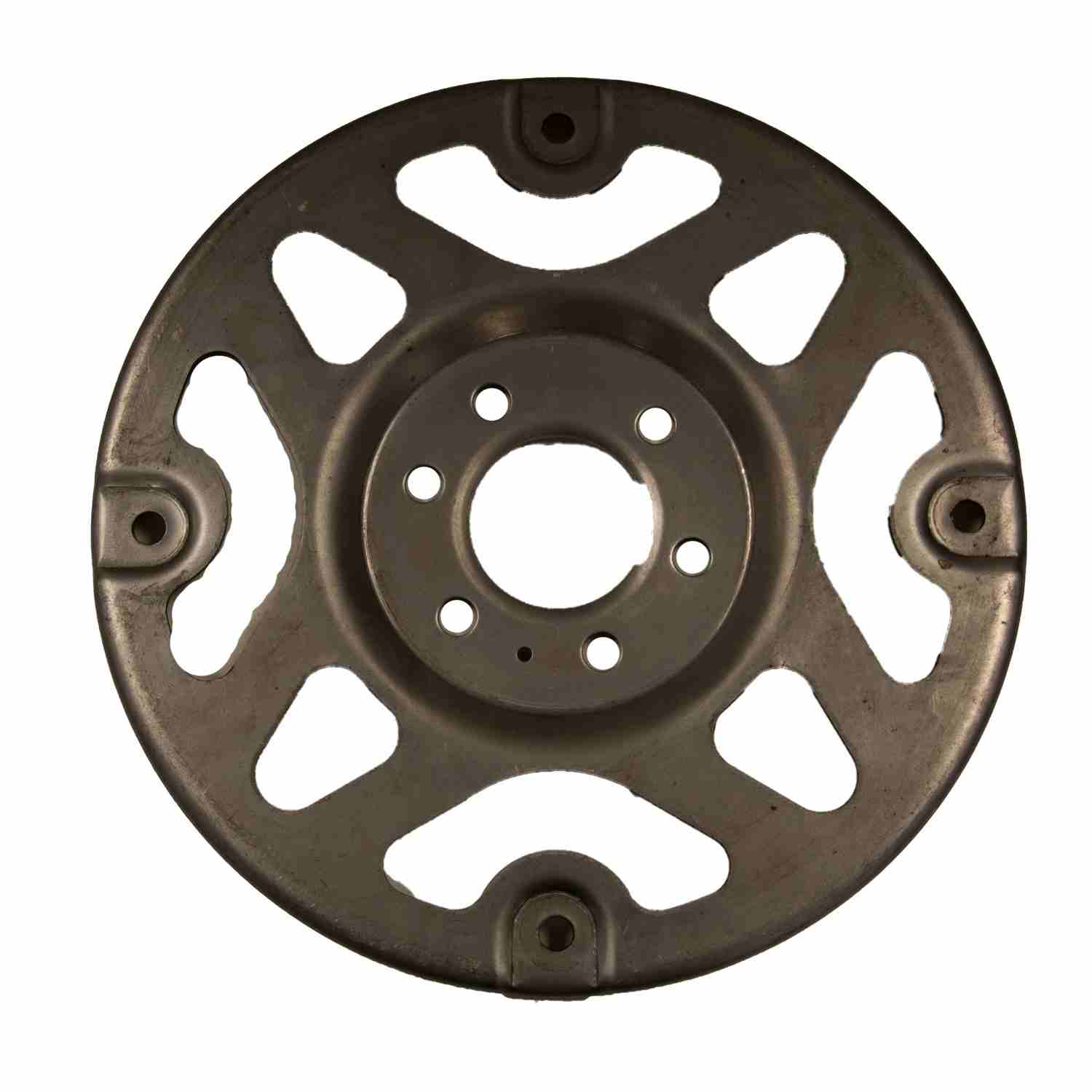

ATP Automatic Transmission Flexplate Z-340
Automatic Transmission Flexplate. (Z-340) by ATP
Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability
Fits: Dodge B150 94-92, Dodge B1500 95, Dodge B250 94-92, Dodge B2500 95, Dodge Dakota 95-92, Dodge Ram 1500 95-94
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 1994 | Dodge | B150 | Base |
| 1995 | Dodge | B1500 | Base |
| 1992 - 1994 | Dodge | B250 | Base |
| 1995 | Dodge | B2500 | Base |
| 1992 - 1995 | Dodge | Dakota | Base, Sport |
| 1992 - 1993 | Dodge | Dakota | LE, S |
| 1994 - 1995 | Dodge | Dakota | WS, SLT |
| 1994 - 1995 | Dodge | Ram 1500 | Base, Custom, Lujo, Runner |
