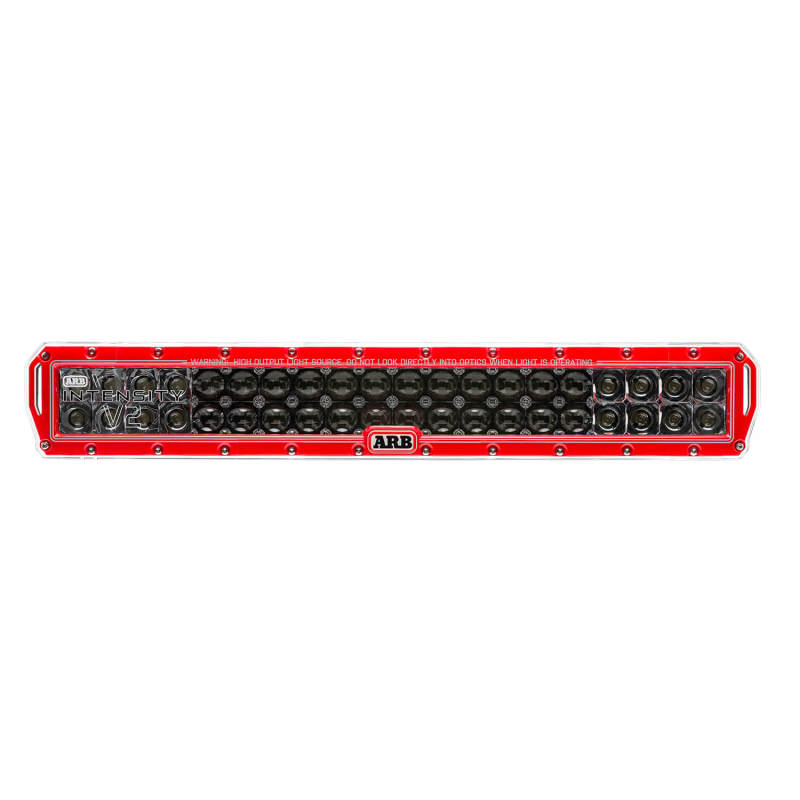

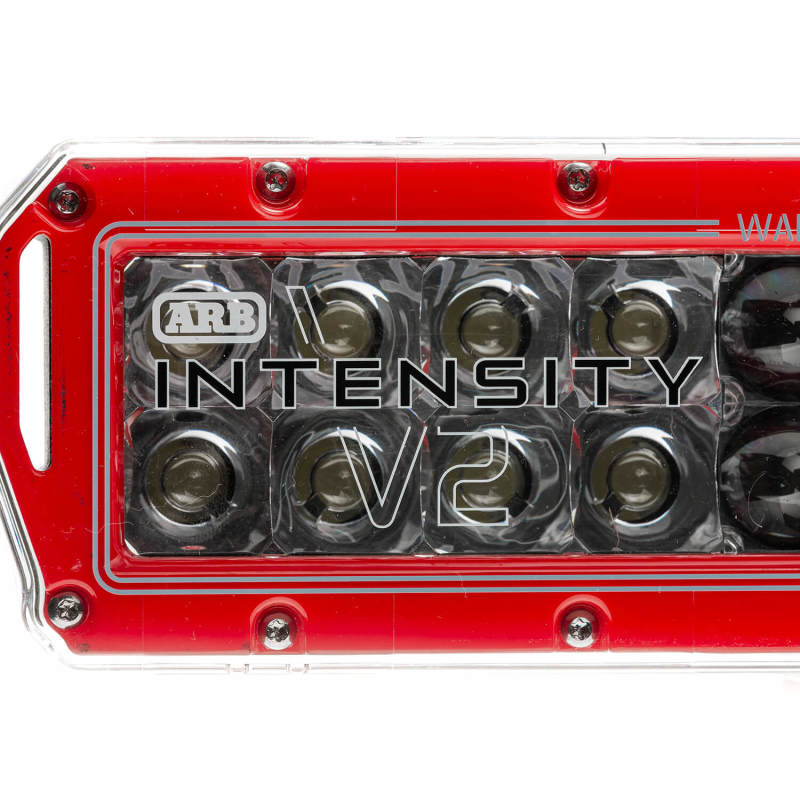

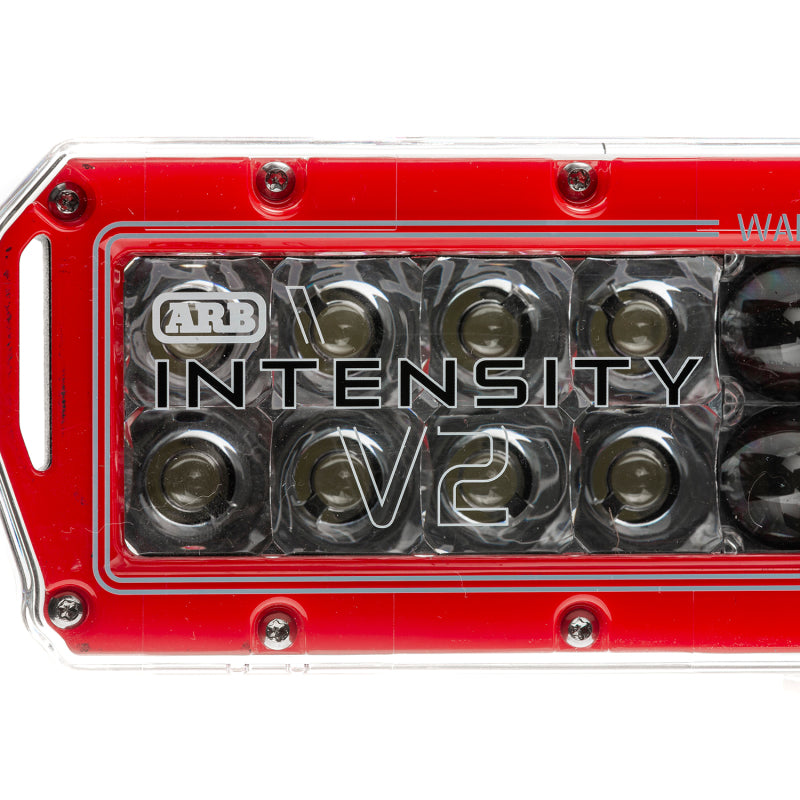

ARB Intensity V2 Light Bar Combination AR40CV2
ARB Intensity V2 Light Bar Combination AR40CV2
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Overview

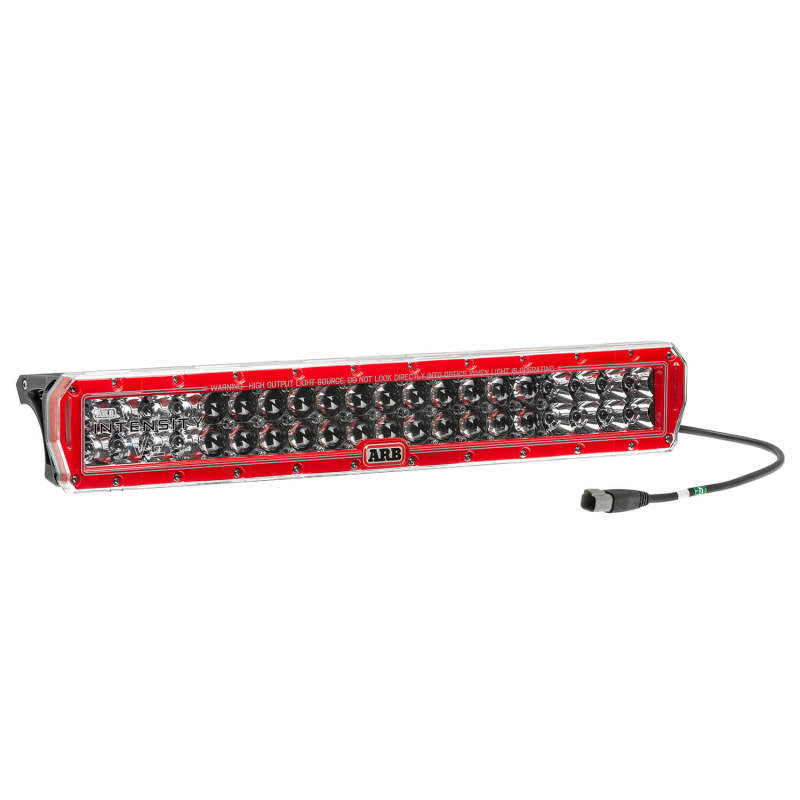

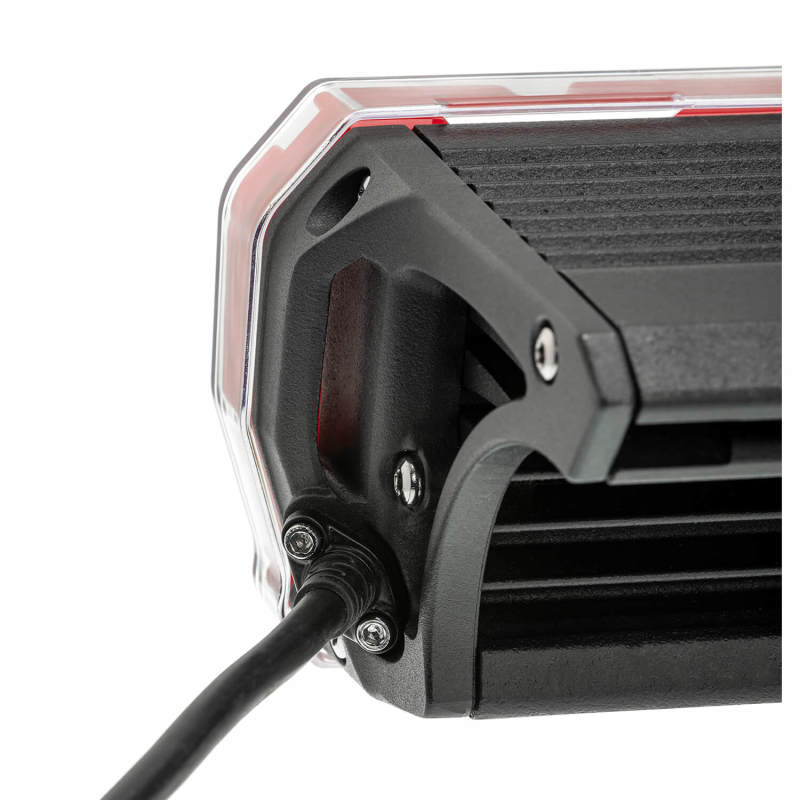

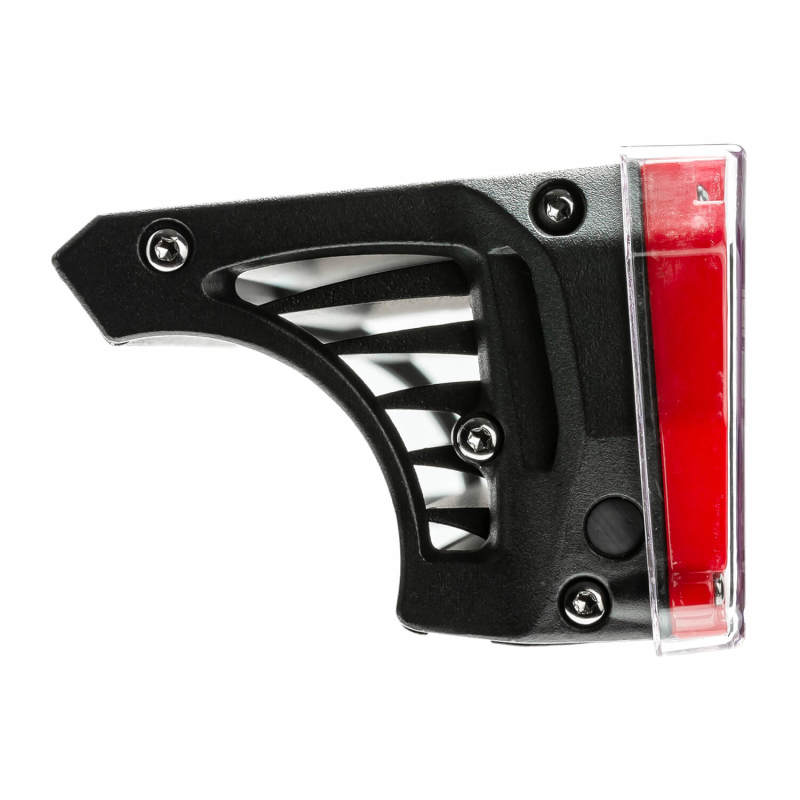

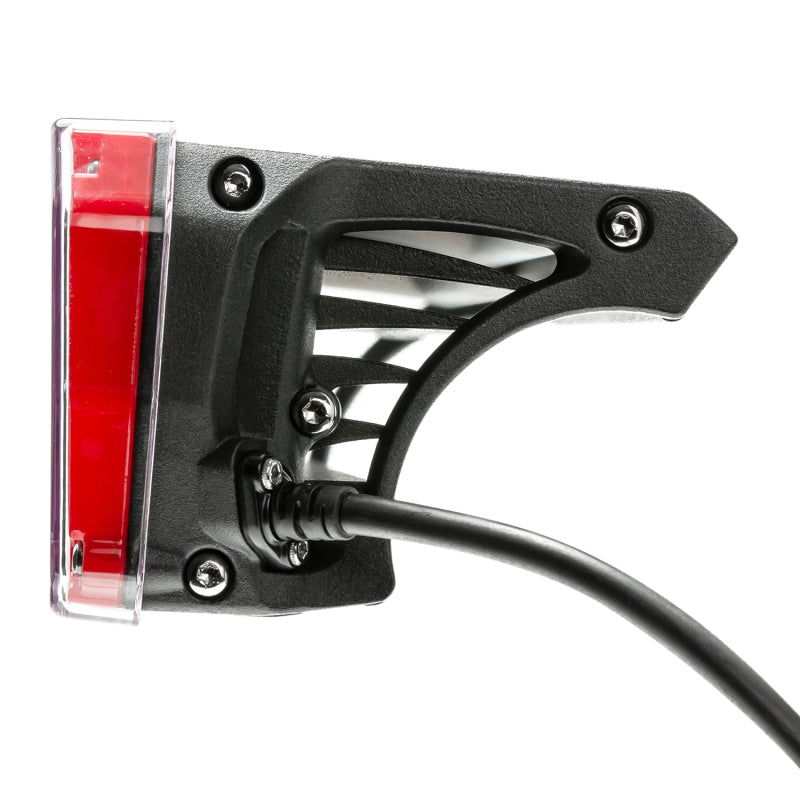

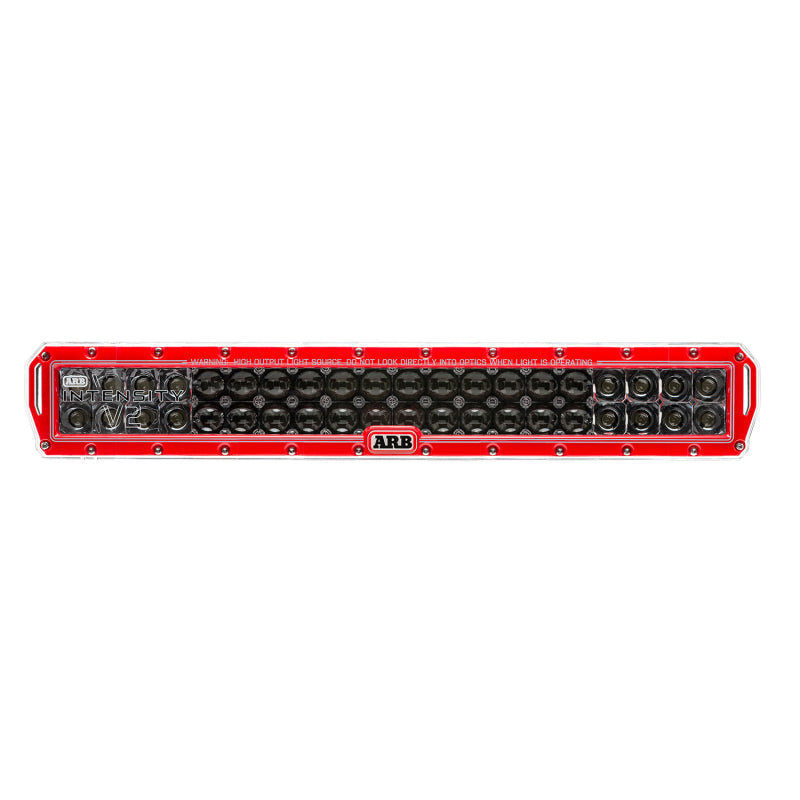

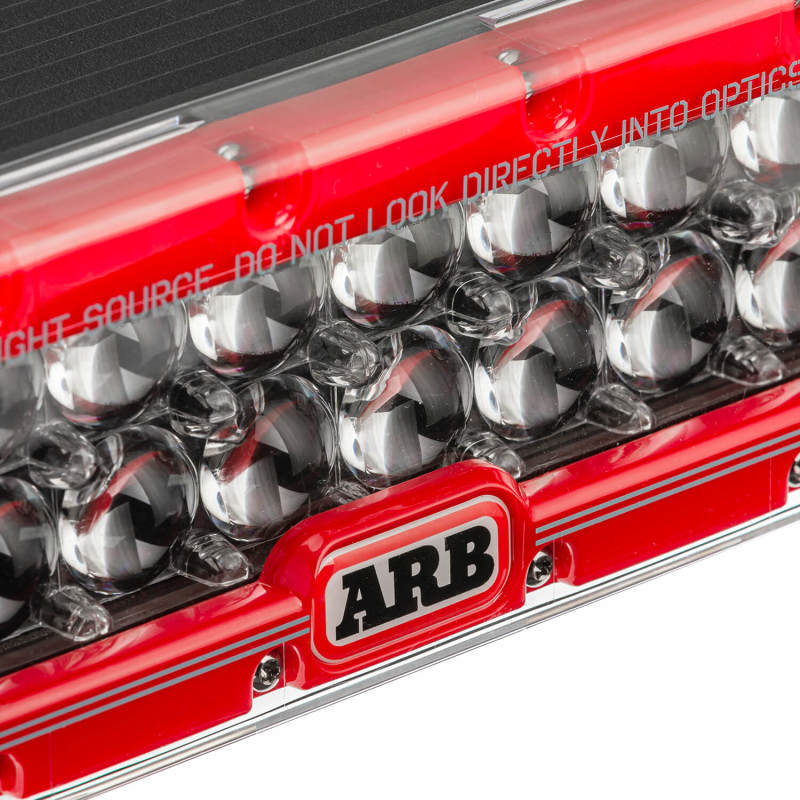

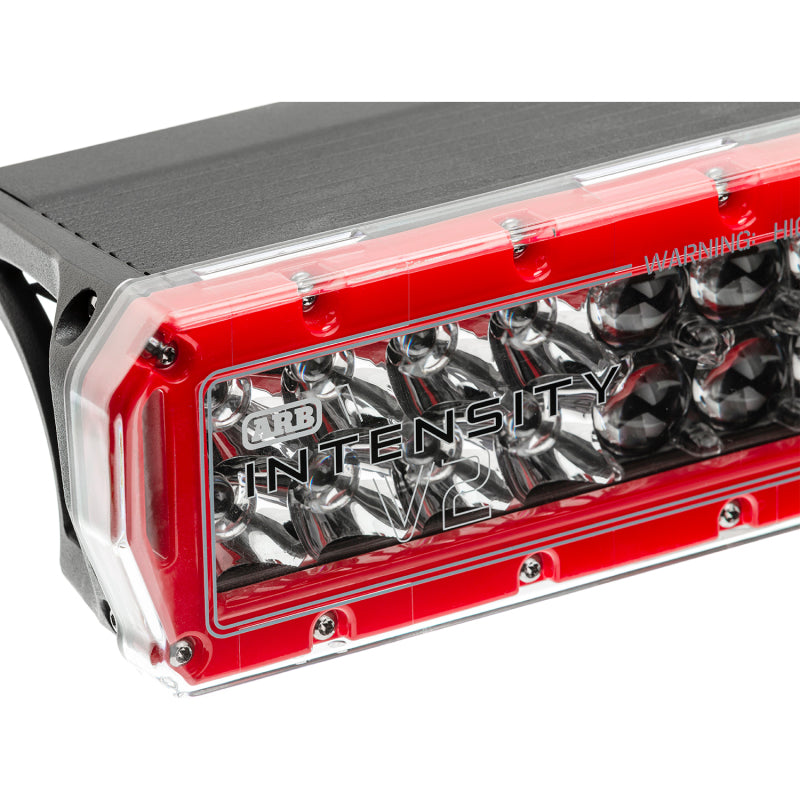

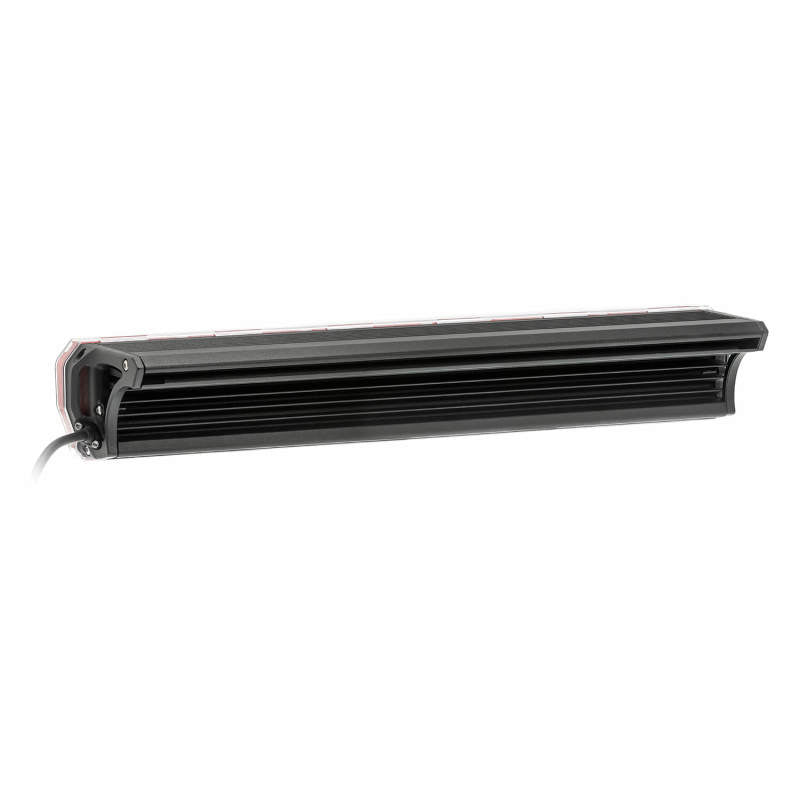

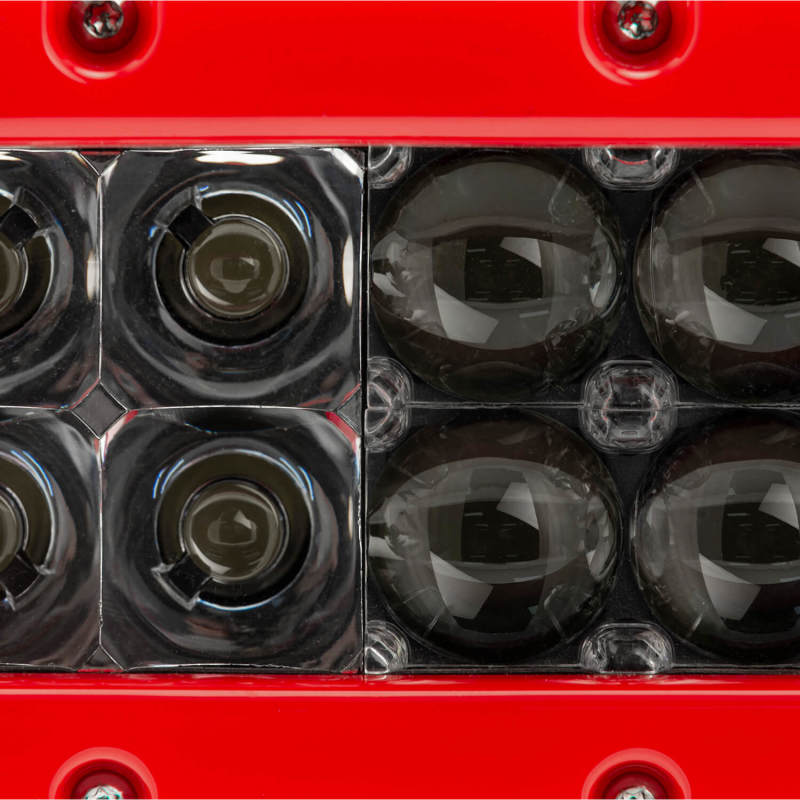

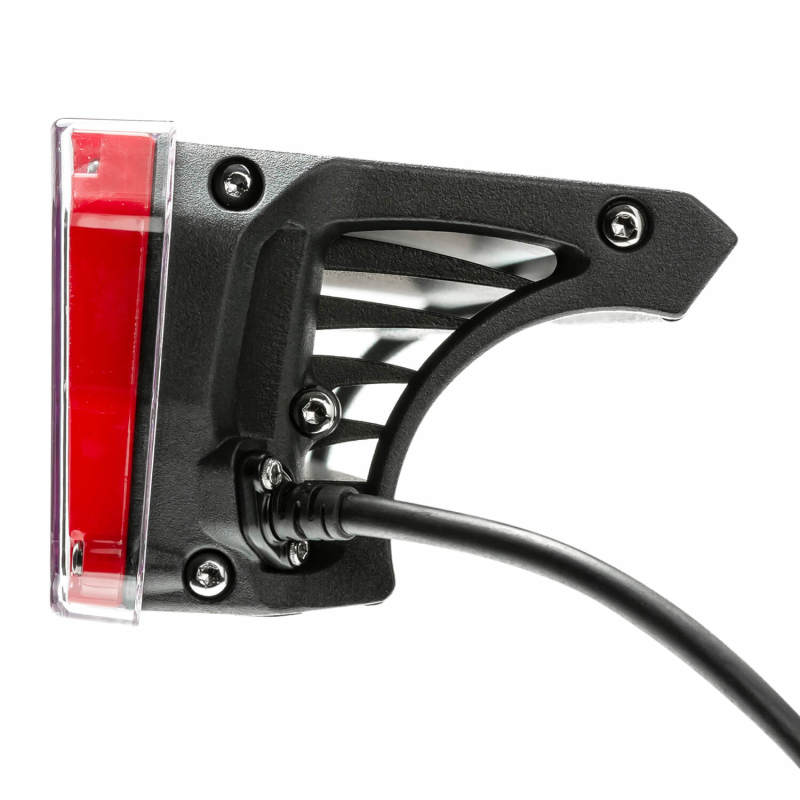

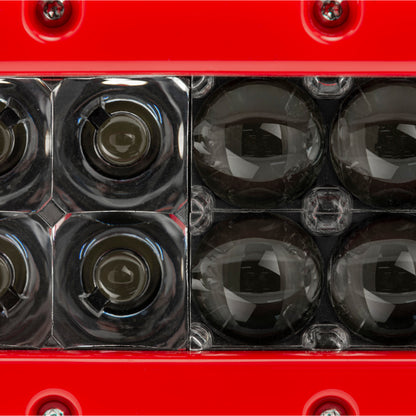

The ARB Intensity V2 LED light bar utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminum body with high-pressure die-cast end caps. Designed to integrate with the top tube of the bumper, the extruded alloy housing wraps around the tube, providing a low-profile integration with the bumper to maximize airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it wont interfere with aerial mounting tabs. Performance is paramount, with a heat sink that allows the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed. ;
Features & Benefits
- High output OSRAM square LED's
- Powder-coated aluminum extruded body
- Dimensions - 560mm (22.1 in) x 91mm (3.6 in) x 125mm (4.9 in)
- 25,080 Raw Lumens for the AR40CV2 Combo.
- 9-36 Volts operating
- 305 watts of power
- 21A @ 14.4V (Requires new looms)
- 1 Lux @ 926m (3038ft)
- 6 degree Spread for Spot and 20 degree spread for Flood
- Input Cable Length 400mm (15.74 )
- Operating Temp -40C to 63C (-40F to +145F)
- Operating Temp -40C to 63C (-40?F to +145?F)
Specifications
| Weight | 8.9lbs |
| Color Temp | 5700k |
| Dimensions | 22.1 in (L) X 3.6 in (H) X 4.9 in (H) |
| Output Raw Lumens | 25,080 lumens |
| Operating Temperature | From -40F to 145F |
| Lux | 1 LUX @ 3,038ft |
| Watts | 305 Watts |
| Spread | 6 degrees spot/20 degrees flood |
| Prop 65 | No |
