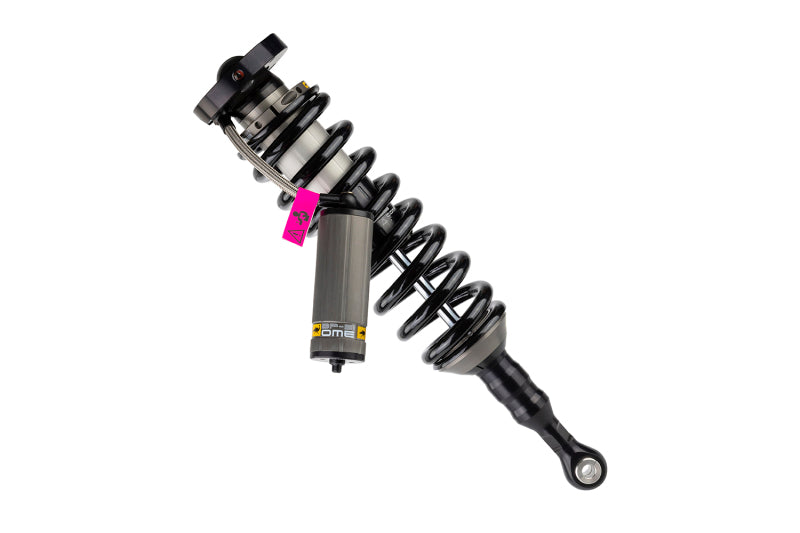

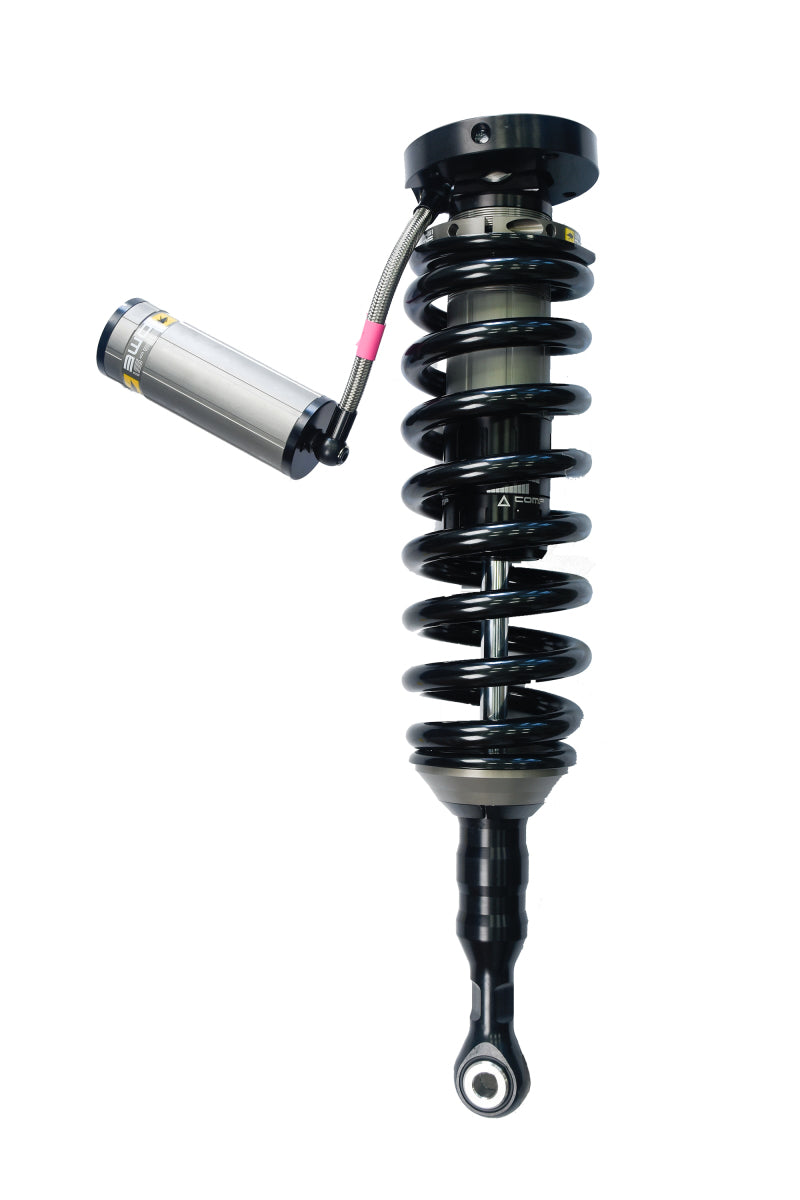

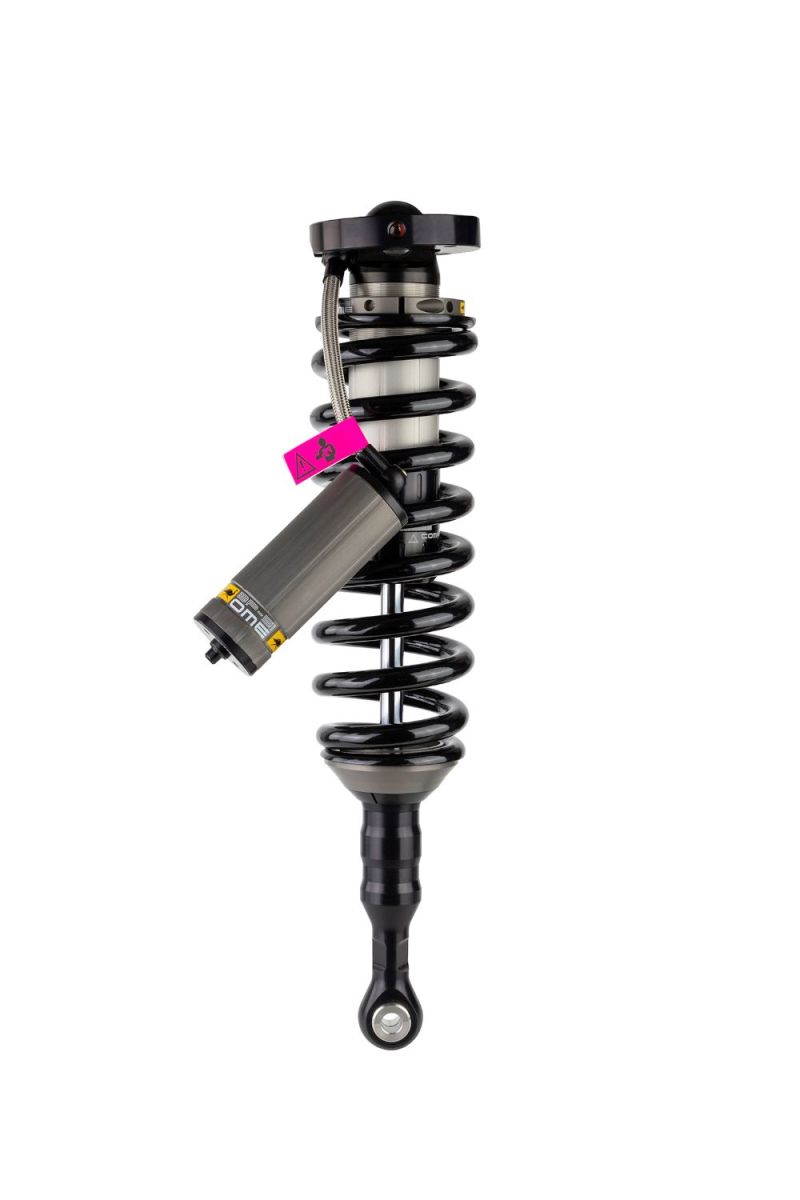

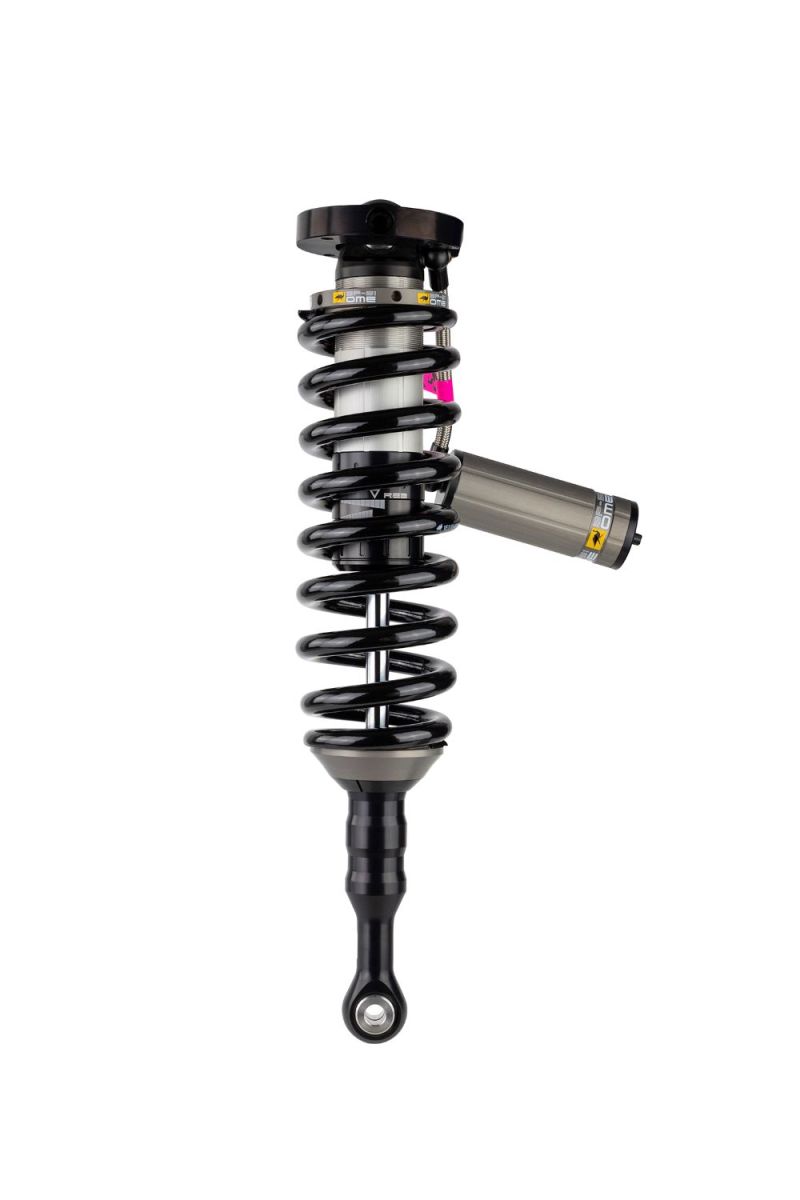

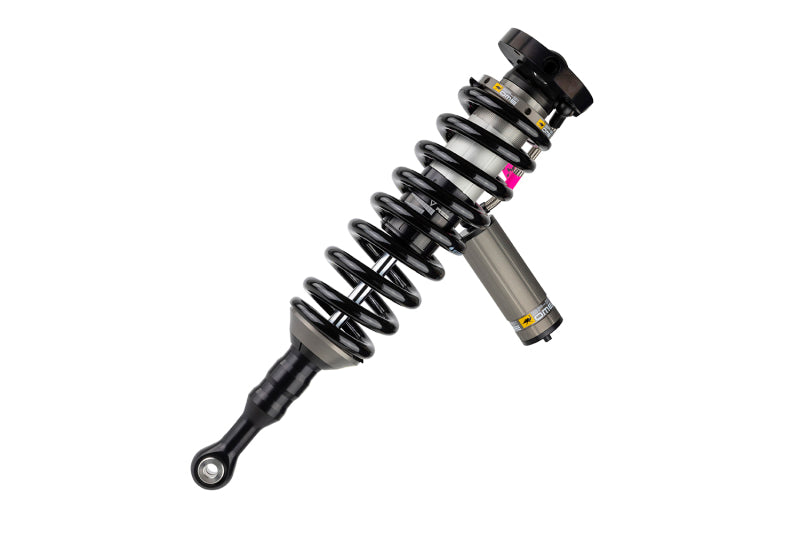

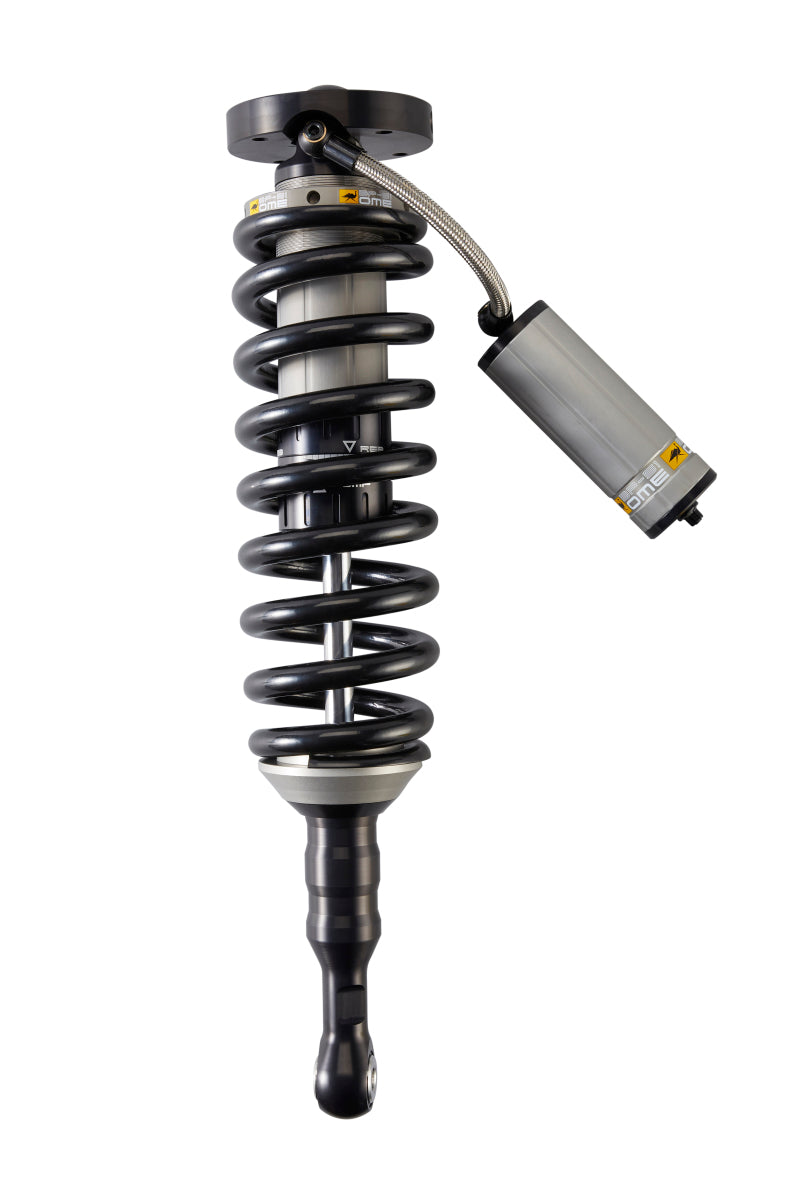

ARB / OME Bp51 Coilover S/N..Tundra Front Rh BP5190010R

Overview
Bring race technology to your adventures with Old Man Emu's BP-51 Suspension system, featuring revolutionary patent-pending technology developed to deliver unparalleled on and off road performance. For use on coil over models, BP-51 employs high-quality X5K grade steel coils that incorporate application-specific design. Because they are engineered, developed, tested and manufactured entirely in-house by the Old Man Emu team, ARB can guarantee the highest possible quality. All Old Man Emu Suspension systems come with a 3-year warranty. ;
Features & Benefits
- Internal Bypass/Shim Controlled/Position Sensitive Damping
- Provides Comfort At Ride Height
- Damping Increases As You Get Closer To The End Zone
- Increased Control At End Zones
- Maximum Bore Size And Bypass Diameter
- Greater Oil Volume
- More Tunable Ability To Generate Force
- On Car Adjustable
Specifications
| Color | Grey |
| Material | Aluminum |
| CA Prop 65 | No |
| Open Length | 625mm |
| Closed Length | 397.5mm |
| Construction | 51mm Bore, 6061 Grade Aluminum Body |
| Prop 65 | No |
| Design | BP-51 |
Fitment
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 2018-2021 | Toyota | Tundra | 1794 | 5.7 | 8 | GAS | 4 |
| 2014-2018 | Toyota | Tundra | 1794 Edition | 5.7 | 8 | FLEX | 4 |
| 2014-2021 | Toyota | Tundra | 1794 Edition | 5.7 | 8 | GAS | 4 |
| 2007-2013 | Toyota | Tundra | Base | 4 | 6 | GAS | 2 |
| 2008-2013 | Toyota | Tundra | Base | 4 | 6 | GAS | 4 |
| 2010-2013 | Toyota | Tundra | Base | 4.6 | 8 | GAS | 2 |
| 2010-2013 | Toyota | Tundra | Base | 4.6 | 8 | GAS | 4 |
| 2007-2009 | Toyota | Tundra | Base | 4.7 | 8 | GAS | 2 |
| 2008-2009 | Toyota | Tundra | Base | 4.7 | 8 | GAS | 4 |
| 2009-2013 | Toyota | Tundra | Base | 5.7 | 8 | FLEX | 2 |
| 2009-2013 | Toyota | Tundra | Base | 5.7 | 8 | FLEX | 4 |
| 2007-2013 | Toyota | Tundra | Base | 5.7 | 8 | GAS | 2 |
| 2008-2013 | Toyota | Tundra | Base | 5.7 | 8 | GAS | 4 |
| 2020 | Toyota | Tundra | Base | 5.7 | 8 | GAS | 4 |
| 2021 | Toyota | Tundra | Base | 5.7 | 8 | GAS | 4 |
| 2010 | Toyota | Tundra | Limited | 4.6 | 8 | GAS | 4 |
| 2007-2009 | Toyota | Tundra | Limited | 4.7 | 8 | GAS | 4 |
| 2009-2018 | Toyota | Tundra | Limited | 5.7 | 8 | FLEX | 4 |
| 2007-2021 | Toyota | Tundra | Limited | 5.7 | 8 | GAS | 4 |
| 2017 | Toyota | Tundra | Ltd | 5.7 | 8 | GAS | 4 |
| 2021 | Toyota | Tundra | Nightshade | 5.7 | 8 | GAS | 4 |
| 2010 | Toyota | Tundra | Platinum | 4.6 | 8 | GAS | 4 |
| 2010 | Toyota | Tundra | Platinum | 5.7 | 8 | FLEX | 4 |
| 2013 | Toyota | Tundra | Platinum | 5.7 | 8 | FLEX | 4 |
| 2014-2018 | Toyota | Tundra | Platinum | 5.7 | 8 | FLEX | 4 |
| 2010 | Toyota | Tundra | Platinum | 5.7 | 8 | GAS | 4 |
| 2013 | Toyota | Tundra | Platinum | 5.7 | 8 | GAS | 4 |
| 2014-2021 | Toyota | Tundra | Platinum | 5.7 | 8 | GAS | 4 |
| 2014 | Toyota | Tundra | SR | 4 | 6 | GAS | 2 |
| 2014 | Toyota | Tundra | SR | 4 | 6 | GAS | 4 |
| 2014-2017 | Toyota | Tundra | SR | 4.6 | 8 | GAS | 2 |
| 2014-2019 | Toyota | Tundra | SR | 4.6 | 8 | GAS | 4 |
| 2014-2017 | Toyota | Tundra | SR | 5.7 | 8 | FLEX | 2 |
| 2014-2018 | Toyota | Tundra | SR | 5.7 | 8 | FLEX | 4 |
| 2014-2017 | Toyota | Tundra | SR | 5.7 | 8 | GAS | 2 |
| 2014-2021 | Toyota | Tundra | SR | 5.7 | 8 | GAS | 4 |
| 2010 | Toyota | Tundra | SR5 | 4 | 6 | GAS | 2 |
| 2007-2011 | Toyota | Tundra | SR5 | 4 | 6 | GAS | 4 |
| 2010 | Toyota | Tundra | SR5 | 4.6 | 8 | GAS | 2 |
| 2010-2011 | Toyota | Tundra | SR5 | 4.6 | 8 | GAS | 4 |
| 2013 | Toyota | Tundra | SR5 | 4.6 | 8 | GAS | 4 |
| 2014-2019 | Toyota | Tundra | SR5 | 4.6 | 8 | GAS | 4 |
| 2007 | Toyota | Tundra | SR5 | 4.7 | 8 | GAS | 2 |
| 2007-2010 | Toyota | Tundra | SR5 | 4.7 | 8 | GAS | 4 |
| 2010 | Toyota | Tundra | SR5 | 5.7 | 8 | FLEX | 2 |
| 2009-2011 | Toyota | Tundra | SR5 | 5.7 | 8 | FLEX | 4 |
| 2013 | Toyota | Tundra | SR5 | 5.7 | 8 | FLEX | 4 |
| 2014-2019 | Toyota | Tundra | SR5 | 5.7 | 8 | FLEX | 4 |
| 2010 | Toyota | Tundra | SR5 | 5.7 | 8 | GAS | 2 |
| 2007-2021 | Toyota | Tundra | SR5 | 5.7 | 8 | GAS | 4 |
| 2021 | Toyota | Tundra | Trail | 5.7 | 8 | GAS | 4 |
| 2020-2021 | Toyota | Tundra | TRD Off-Road | 5.7 | 8 | GAS | 4 |
| 2021 | Toyota | Tundra | TRD Off-Road Premium | 5.7 | 8 | GAS | 4 |
| 2015-2017 | Toyota | Tundra | TRD Pro | 5.7 | 8 | FLEX | 4 |
| 2015-2017 | Toyota | Tundra | TRD Pro | 5.7 | 8 | GAS | 4 |
| 2019 | Toyota | Tundra | TRD Pro | 5.7 | 8 | GAS | 4 |
| 2020-2021 | Toyota | Tundra | TRD Pro | 5.7 | 8 | GAS | 4 |
| 2020 | Toyota | Tundra | TRD Sport | 5.7 | 8 | GAS | 4 |
| 2021 | Toyota | Tundra | TRD Sport Premium | 5.7 | 8 | GAS | 4 |

ARB / OME Bp51 Coilover S/N..Tundra Front Rh BP5190010R
Sale price$949.95 USD
Regular price$950.00 USD
