ARB 18-20 Jeep JL 4-Door BP51 Heavy Load Kit OMEJL4DBP51HK

Overview

Old Man Emu brings racing technology to every day adventures: BP-51 (Bypass 51mm diameter bore) shock absorbers feature revolutionary, patent pending technology developed to deliver unparalleled on and off road performance. Developed and extensively tested under the harshest conditions in Australia, these big bore, position sensitive bypass shock absorbers with remote reservoir are designed to bolt onto your vehicle without any vehicle modifications and combine considerable ride comfort around town with significant amounts of end-zone damping for exceptional chassis control and handling off road. The damping performance is easily adjustable across a wide range of rebound and compression, resulting in significant changes to the ride performance of your vehicle, enabling a custom tune to suit the conditions and vehicle set up. The body, reservoir and components are all made from 6061-T6 aluminum, Type 3, 40 micron hard anodized ensuring exceptional heat dissipation, corrosion resistance and resistance to stone damage. ;

Features & Benefits

• Suits 4-door models
• Accommodates heavy load 90-195 lb
• Due to differences in OE ride height, the kit will net 3.5 in for non Rubicon models and 2.5 in for Rubicon models

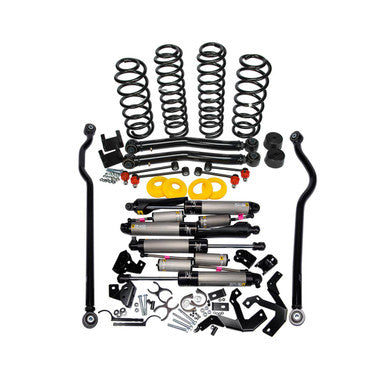

Kit Components

• OMEJKPF10Coil Spring Trim Packer,2
• 3138Rear Coil Spring Set,1
• 3135Front Coil Spring Set,1
• LCAJLFRAdjustable Front Lower Control Arms,1
• BP5160034RRear BP-51 Bypass Shock Absorber,1
• BP5160034LRear BP-51 Bypass Shock Absorber,1
• BP5160033Front BP-51 Bypass Shock Absorber,2
• FK92Front Bump Stop Spacer Kit,1
• VM80010039Rear BP-51 Shock Fitting Kit,1
• VM80010038Front BP-51 Shock Fitting Kit,1
• FK105Sway Bar Link Kit,1
• OMEJLPR10Rear Coil Spring Trim Packer,2
• PANRJL002Adjustable Rear Panhard Rod,1
• PANRJL001Adjustable Front Panhard Rod,1
