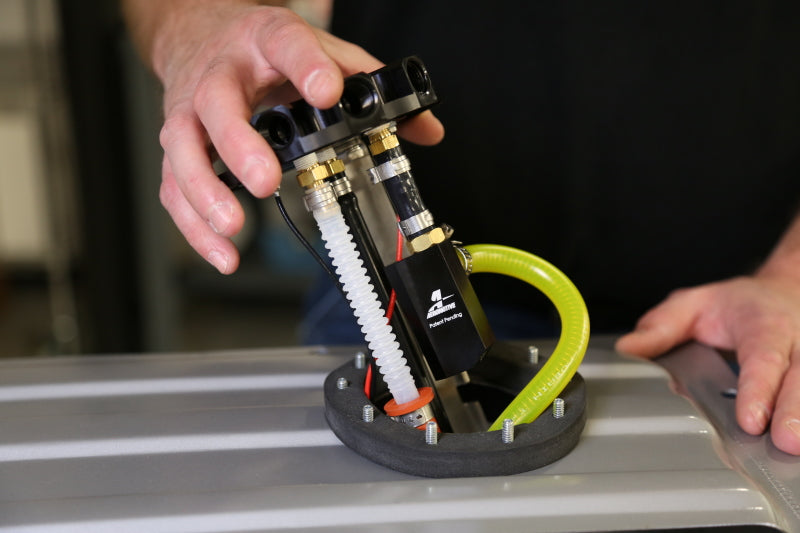

Aeromotive Apex Phantom
The Apex Phantom utilizes advanced, patent-pending jet siphon technology to provide a constant supply of cool fuel to the Phantom bladder, which allows the system to dominate in extreme applications from all out road-racing to radical rock crawling. From extreme cornering loads to extreme off-angle vehicle environments, the Apex Phantom maintains fuel supply to the Phantom pump and bladder assembly, even when fuel tank levels are low and fuel is moving away from the pump location.
Aeromotive's Apex Phantom is highly recommended for most tanks, including saddle-bag tanks. The Apex Phantom opens the door to OEM convenience but with high horsepower pump flow rates that only Aeromotive pumps can provide. With the Aeromotive Apex jet siphon your Phantom System will have a continuous supply of fuel from the off-tank or saddle-bag to maintain optimal fuel supply, both to the Phantom baffle and then to the main tank. And you'll never have to worry about priming the Apex Phantom thanks to the ingenious, patent-pending jet siphon design that automatically floods and primes the pump, regardless of whether it gets a gulp of air when the off-tank is low, or even if the off tank runs dry before you get it refilled.

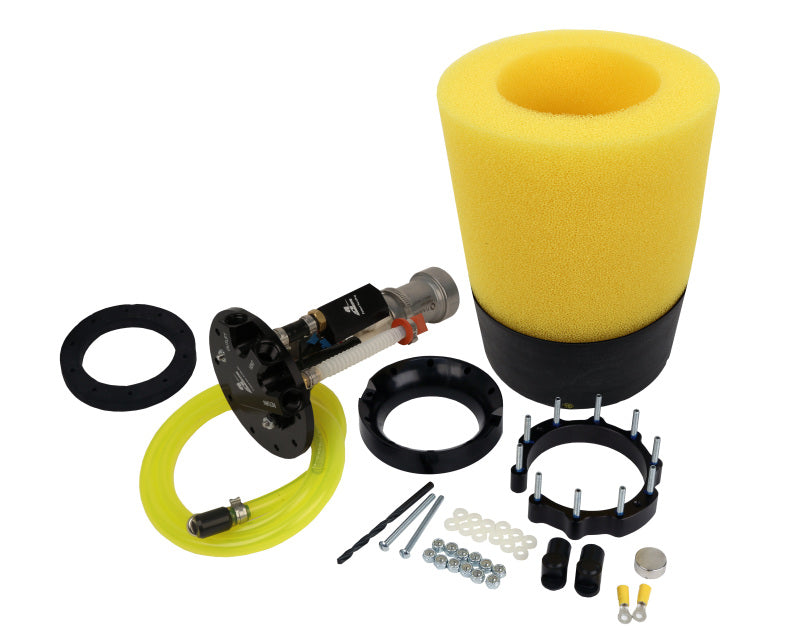

Features:
- Black anodized hanger assembly
- (3) ORB-06 Ports ? Supply, Return, Vent
- Fuel resistant baffle / basket (Includes: Foam and Bladder)
- Universal high flow pre-pump filter
- Modular design can be cut to height to fit almost any fuel tank
- Jet Siphon and 4-feet of gasoline and ethanol rated suction line
- Must be used with a return style EFI system
- Powerful, two-magnet system, secures pickup line in the exact intended position
- For even more fuel control, add Phantom Bladder Baffles
