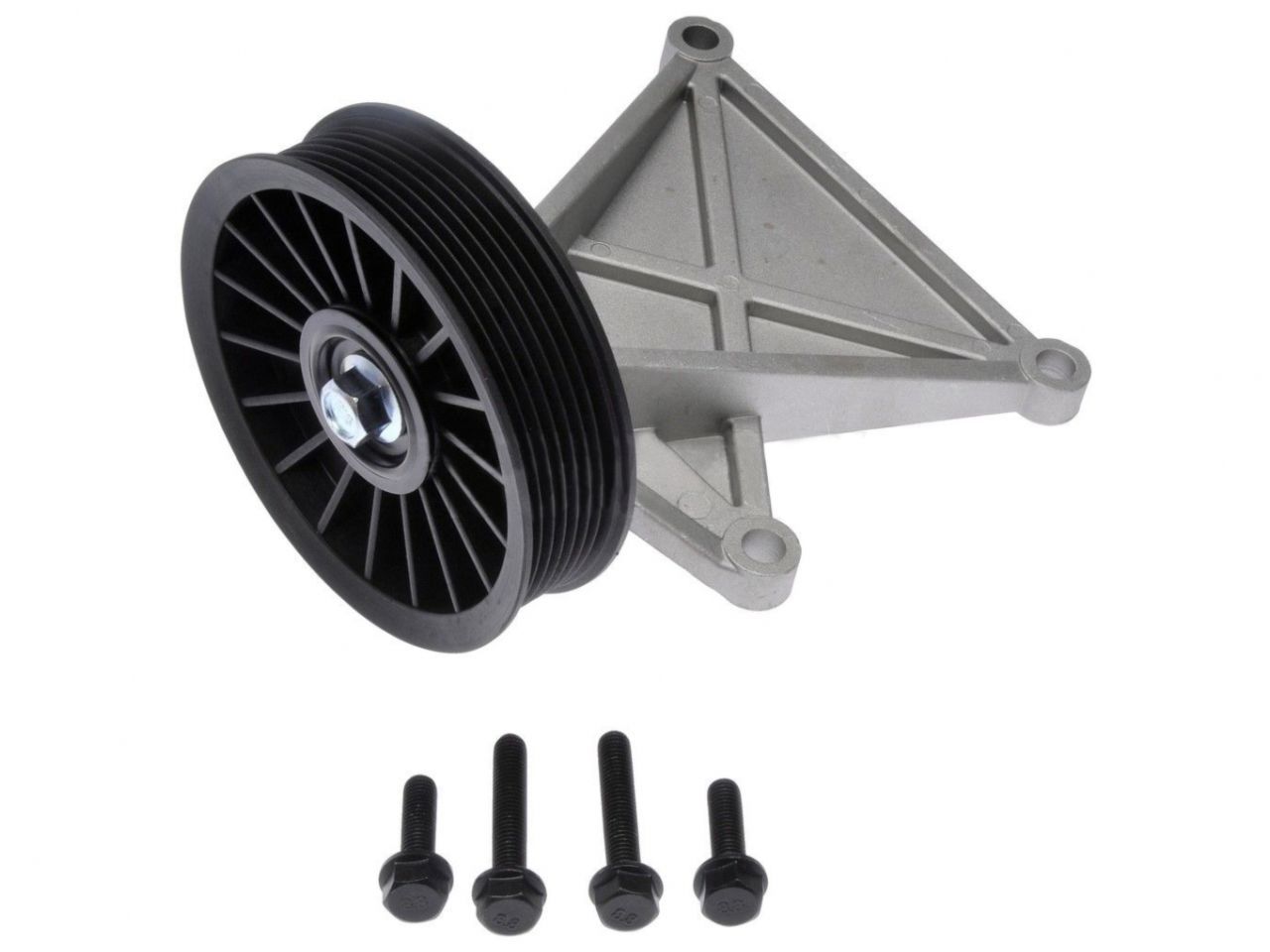

Dorman Air Conditioning Bypass Pulley

Air Conditioning Bypass Pulley

Now there's an affordable, effective way to get your vehicle up and running after a seized A/C compressor renders it inoperable. Dorman's A/C Compressor By-Pass Pulley is installed in place of a new compressor, significantly reducing parts and labor costs.

-Significantly cuts costs by eliminating the need for a new A/C compressor

-Uses original length serpentine belt

-Lightweight for easy handling

-Rigorous quality control measures have been undertaken to ensure that this part conforms to product standards

Application Summary: Acura ILX 2014-13, Acura RDX 2012-07, Honda Civic 2014-12, Honda CR-V 2014-07

Product Specifications

• Air Conditioning Component Material: Plastic Pulley, Aluminum Bracket
• Bracket Included: Yes
• Color: Natural
• Compressor Type: TRSE09
• Installation Hardware Included: Yes
• Installation Instructions Included: Yes
• Mount Hole Diameter: 10 mm
• Mount Hole Quantity: 4
• Number of Pulleys Included: 1
• Outside Diameter (In): 118 mm
• Package Contents: Bracket and Pulleys
• Package Quantity: 1
• Packaging Type: Box
• Pulley Type/Grooves: 7-groove Serpentine Belt
• Width: 33 mm
