AIM RPM, ARP 04 Signal Filter, Flying Leads 0HRN0
AIM RPM, ARP 04 Signal Filter, Flying Leads 0HRN0
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Data Logging Unit Cable
- Category
- Vehicle Repair & Specialty Tools
- Shipping dimensions (L × W × H)
- Shipping weight
- 2.0 lb
Billable shipping weight; may include dimensional weight.

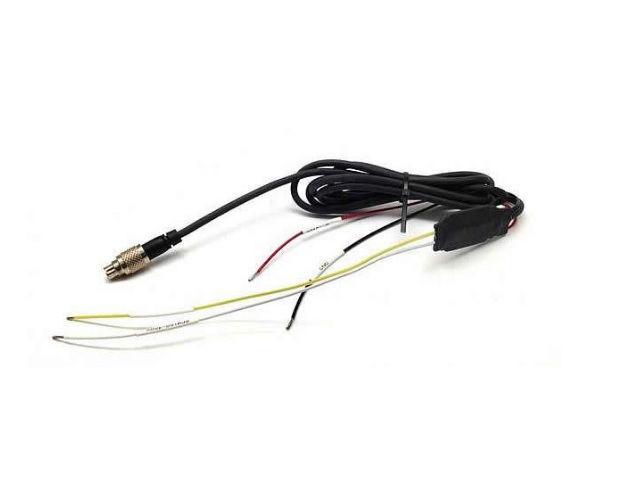

Aim RPM Car Coil Adapter For EVO4 - ARP04 X50AARP040 RPM coil adapter has been properly designed to be connected to EVO4. It filters the signal out coming from the coil before it enters EVO4, reducing noise and generating the square wave. The output signal is a square wave. Images here below show - on the left - RPM signal out coming from the coil and - on the right - the signal filtered to square wave.
Connecting RPM coil adapter
With reference to the image here below, to install the adapter:
- connect the cable that ends with a 5 pins Binder 712 male connector to RPM input of EVO4
- connect the black cable labelled GND to vehicle reference ground
- connect the red cable labelled 9-15 VDC to a switched 12V power supply
- connect the white cable labelled RPM 150-450V to the coil earth trigger.
