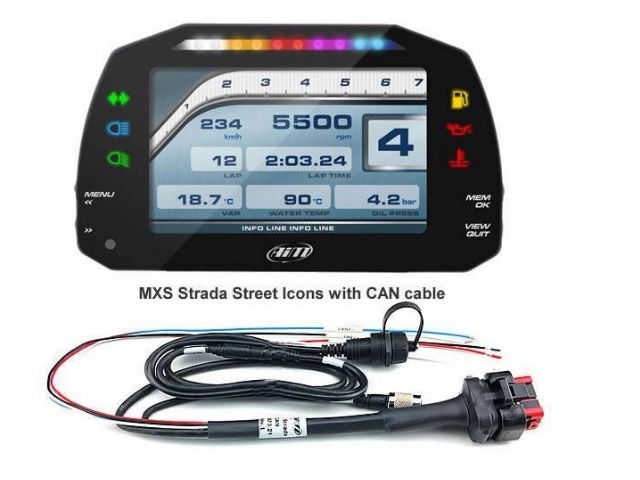

AIM MXS Strada Icon with CAN Cable
The Aim MXS Strada Motorcycle Racing Dash Display with Icons version is a color, high-contrast, 5" TFT dash display developed for race street and race car/bike installations which are fully configurable. It comes with two loom options, CAN or OBDII. You can configure alarm LEDs choosing color, blinking frequency and defining the logic for turning them on or off.
Simply The Best Motorcycle Dash/Display Ever"
It is a color, high-contrast, 5" TFT dash display developed for race street and race car/bike installations which are fully configurable. It comes with two loom options, CAN or OBDII .You can configure alarm LEDs choosing color, blinking frequency and defining the logic for turning them on or off.
MXS Strada ECU Connection
Aim systems acquire data from the ECU of your bike. The list of available ECU drivers is constantly updated and upgraded on our support site. Aim systems manage the following data lines:
- CAN
- RS232
- K-Line
MXS Strada Technical Specifications
Display: 5" TFT
Resolution: 800x480 pixels
Contrast: 600:1
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 6 RGB freely configurable
Shift light: 10 integrated freely configurable RGB LEDs
CAN connections: 2
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs

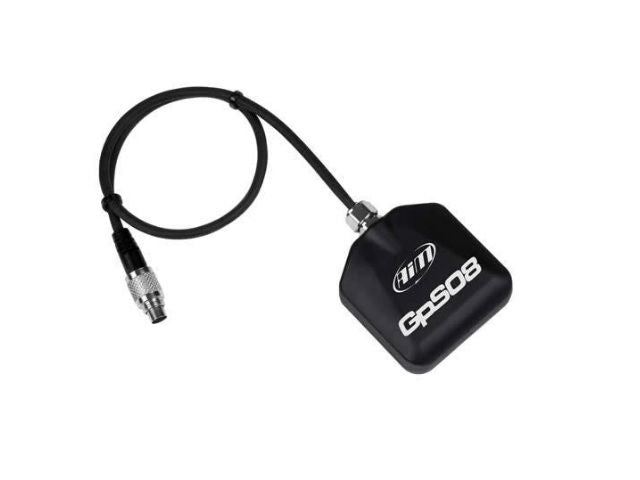

Expansion CAN connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
Analog inputs: 4 fully configurable, max 1,000 Hz each
Digital inputs: 1 speed input, lap signal, coil RPM input
Digital outputs: 1 (1 Amp max)
Second CAN: Yes
Body: Anodized Aluminum
Pushbuttons: Metallic
Connectors: 2 AMP connectors
Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
Waterproof: IP65
In The Box
MXS Strada
USB cable
14 pin standard wiring
23 pin connector + contacts
Race Studio 3
