AIM MXS 12C8Q

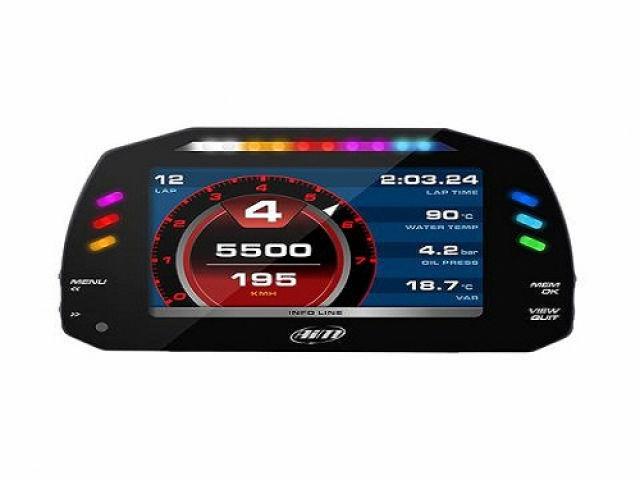

The Aim MXS Compact 5" Motorcycle Dash Data Logger is specifically designed to be small and compact to acquire and display data from your motorcycle ECU.This includes data from the internal accelerometer, gyro and from the GPS Module included in the kit.
Accurate, Powerful and Flexible is what makes the MXS the worlds best motorcycle data logger for improving bike engine and rider performance.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
ECU Connection
Aim data systems acquire data from the ECU of your vehicle. The list of available ECU drivers, constantly updated and upgraded, is published here: it includes > 1,000 different ECUs, either Stock and Racing. They are sorted by manufacturer/vehicle model: for each ECU you find the proprietary communication protocols, including the standard OBDII ones.
From a hardware perspective, Aim systems manage the following data lines:
- CAN
- RS232
- K-Line
Analog/Digital Inputs
Aim systems analog inputs are recorded up to 1000 times per second each. You can connect and monitor all kinds of sensors, like:
- Ratiometric potentiometers
- Pressure sensors
- Thermo-resistances
- K-type thermocouples
and many others, all your custom sensors included.
Aim systems also feature digital inputs:
- Speed signals From the ECU, from the GPS and from the wheel sensors.
- RPM From the ECU or from a digital input connected to a square wave signal (8 to 50 V) or to a low voltage (from 150 to 400 V) of the coil.
- Lap signal Lap and split times are sampled by the GPS or via optical receiver/transmitter.
Internal Accelerometer and Gyro
The internal three-axial accelerometer and the gyroscope provide the AiM systems a very powerful array of information. These force and motion sensors enable you to quantify the dynamic characteristics of your vehicle. Measuring acceleration forces and gyro rates can assist in determining how to improve your vehicle performances.
Second CAN
An innovative AiM systems feature is its CAN2 line, managing data coming from your additional modules i.e. ABS, traction control, infrared temperature sensors and more. This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.
GPS08 Module
Thanks to GPS08 Module (included in the kit) and its Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving rider performance.
High Contrast TFT Display
A high contrast TFT display identifies MXS at the first glance.
An ambient light sensor keeps the backlight at optimum brightness levels.
Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.Swapping between pages can be managed pushing one or two push buttons.
Flexible alarms
The MXS features configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.
Two Digital Outputs
The MXS features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground) which can be configured to be turned on/off depending on the value of the analog or digital inputs.
They allow it to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Integrated Light Display
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required.
Expand The System According To Your Needs
Using the built-in CAN bus, you can add expansion modules to the MXS to increment the performance and the data acquired:
GPS Module
Thanks to GPS05 Module (included in the kit) and its GPS Manager software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
LCU-One Lambda Controller
LCU-One Lambda Controller Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburetion.
SmartyCam HD cameras
The on-board cameras that overlays on videos the data sampled by your logger.
Memory Module
Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXS/MXG and to all Aim loggers.
Race Studio 3 & Configuration
Race Studio 3 is the heart of your MXS.With Race Studio 3 you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam HD cameras.
