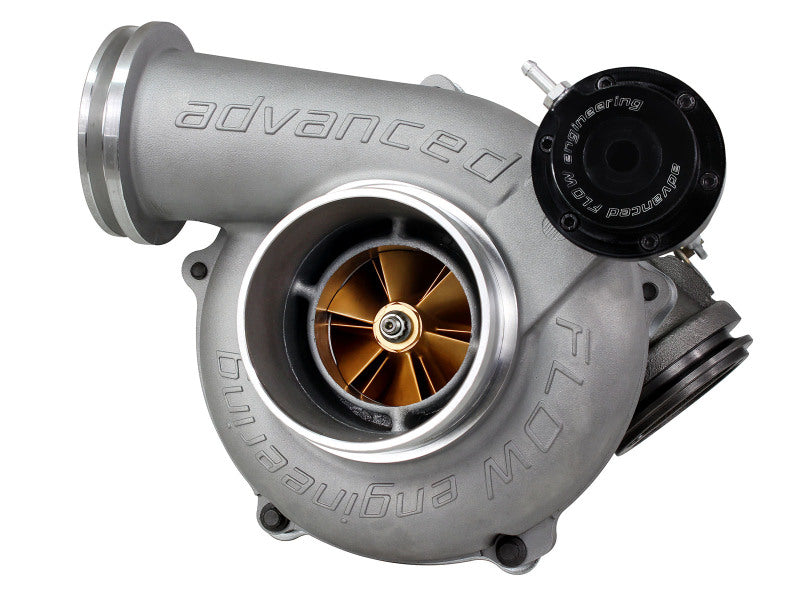

aFe BladeRunner GT Series Turbocharger: Ford Diesel Trucks 99-03 V8-7.3L (
- In house testing produced a max gain of +49 horsepower and +124 lbs. x ft. of torque, verified by our in house dyno*
- Stock upgrade with no core charge

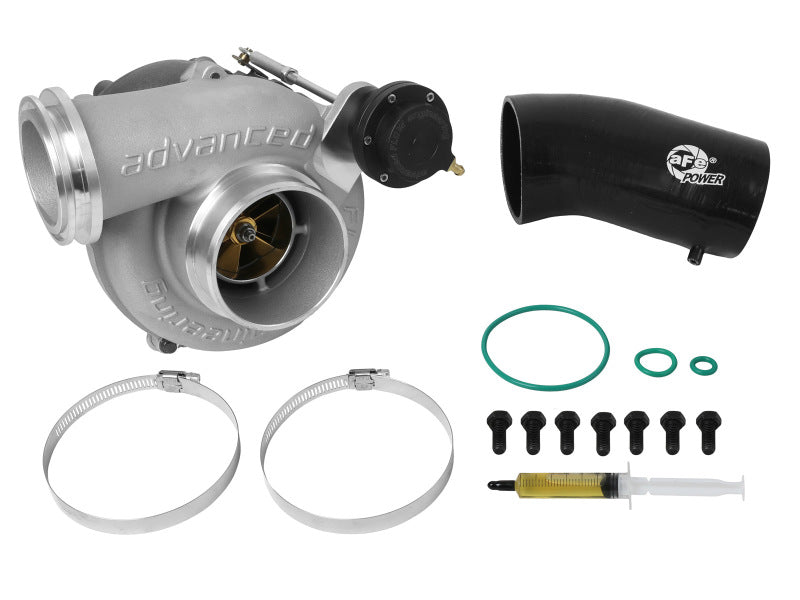

- A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
- Billet adjustable wastegate actuator is included
- Torque booster tube is included
- 2-Year Warranty
- Specifications
- Compressor Inducer - 66 mm
- Compressor Exducer - 88 mm/ Trim 56
- Turbine Inducer - 76 mm
- Turbine Exducer - 67 mm/ Trim 78
- Exhaust A/R - 1.0
-
4" Anti-Surge Chamber w/ High-Temp 5-Ply Silicone torque booster tube: This turbo has an oversized 4" inlet featuring a ported shroud compressor housing which helps to reduce "turbo bark". A 5-PLY reinforced high temperature silicone torque booster tube is included for a hassle-free installation.

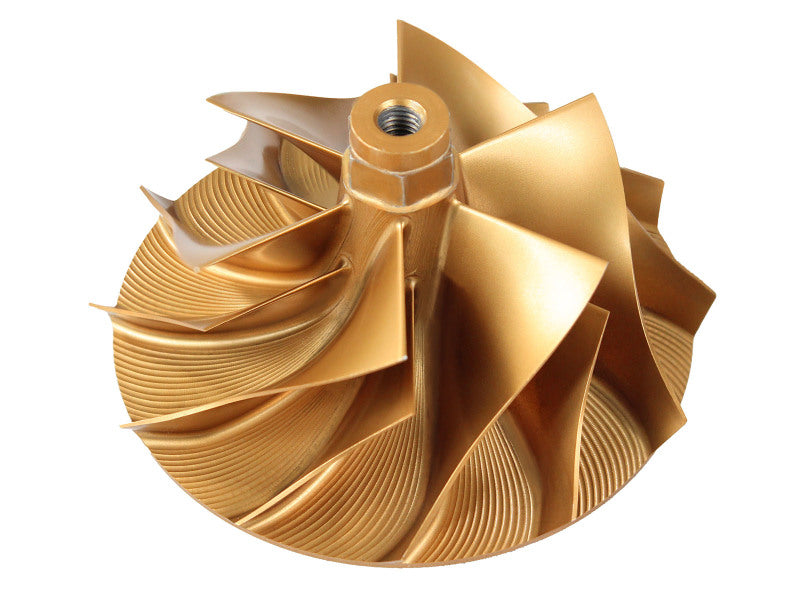

Billet Wheel: The compressor features a gold anodized 6/12 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo.

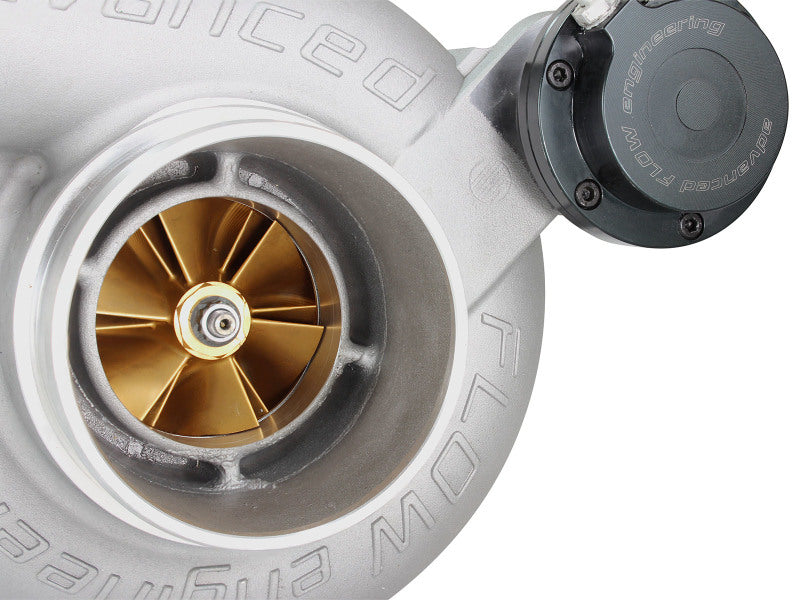

Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 66mm inducer and 88mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator.

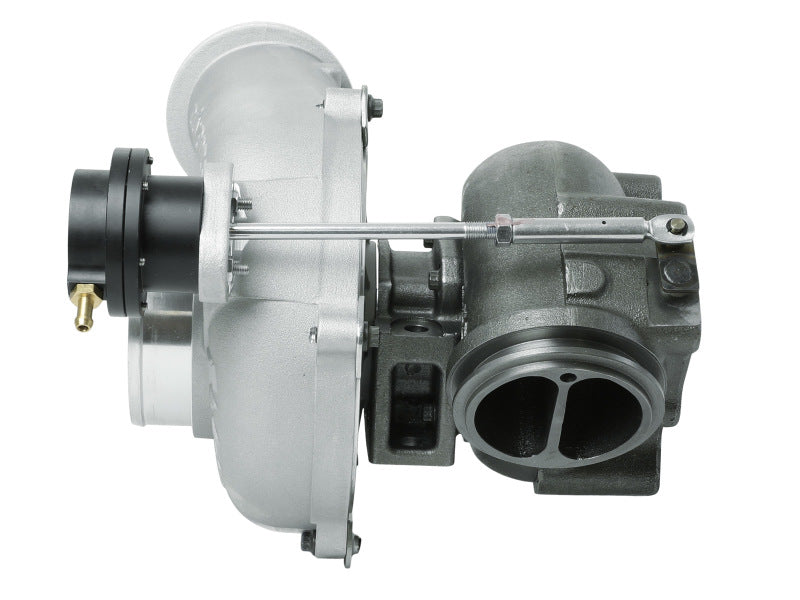

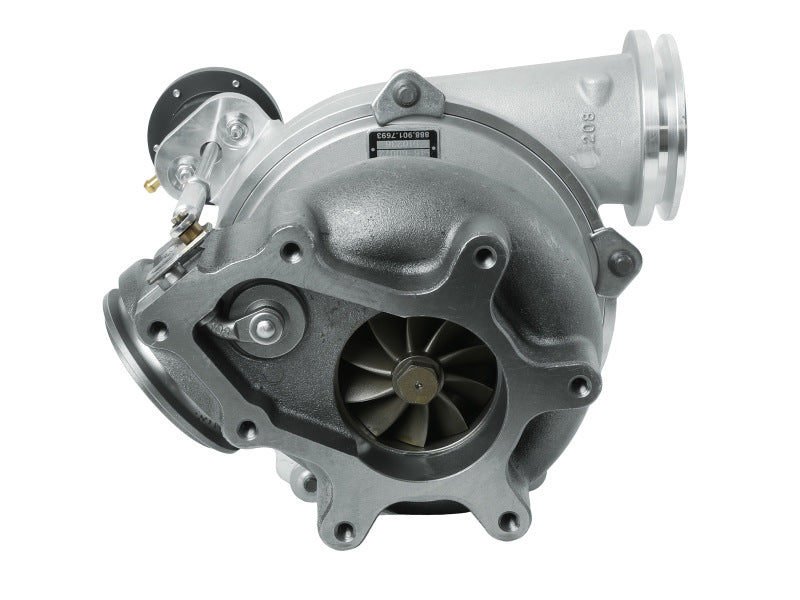

1.0 A/R Turbine Housing: The larger 1.0 A/R housing vs. Stock .84 A/R results in lower EGT's.

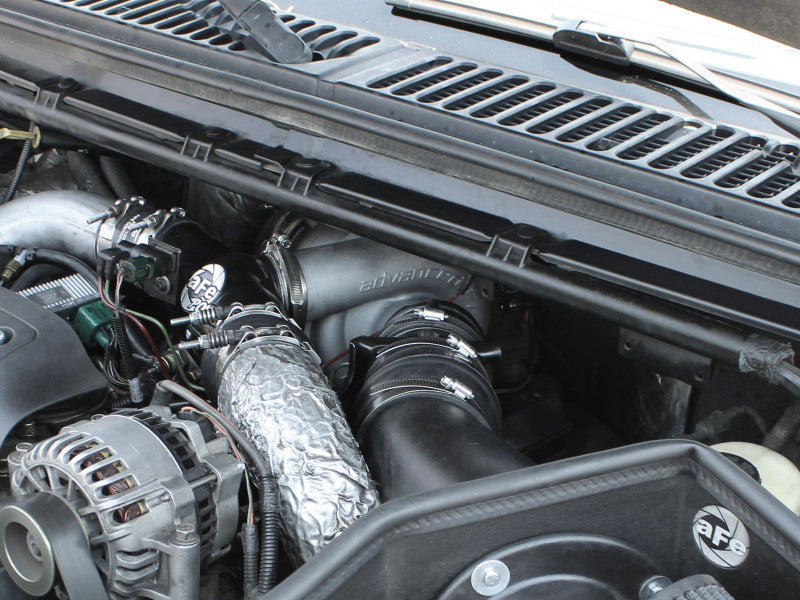

Direct Replacement: This turbo can be installed on 1999.5-2003 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.
*Dyno results with aftermarket tuner set on performance
Note: This is a "Race Only" product used solely for competition. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use including recreational off-road use could be in violation of local, state and federal laws.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2003 | Ford | Excursion | Eddie Bauer |
2000 - 2003 | Ford | Excursion | Limited, XLT |
1999 - 2003 | Ford | F-250 Super Duty | XLT, Lariat, XL |
2003 | Ford | F-350 Super Duty | King Ranch |
1999 - 2003 | Ford | F-350 Super Duty | XLT, XL, Lariat |
