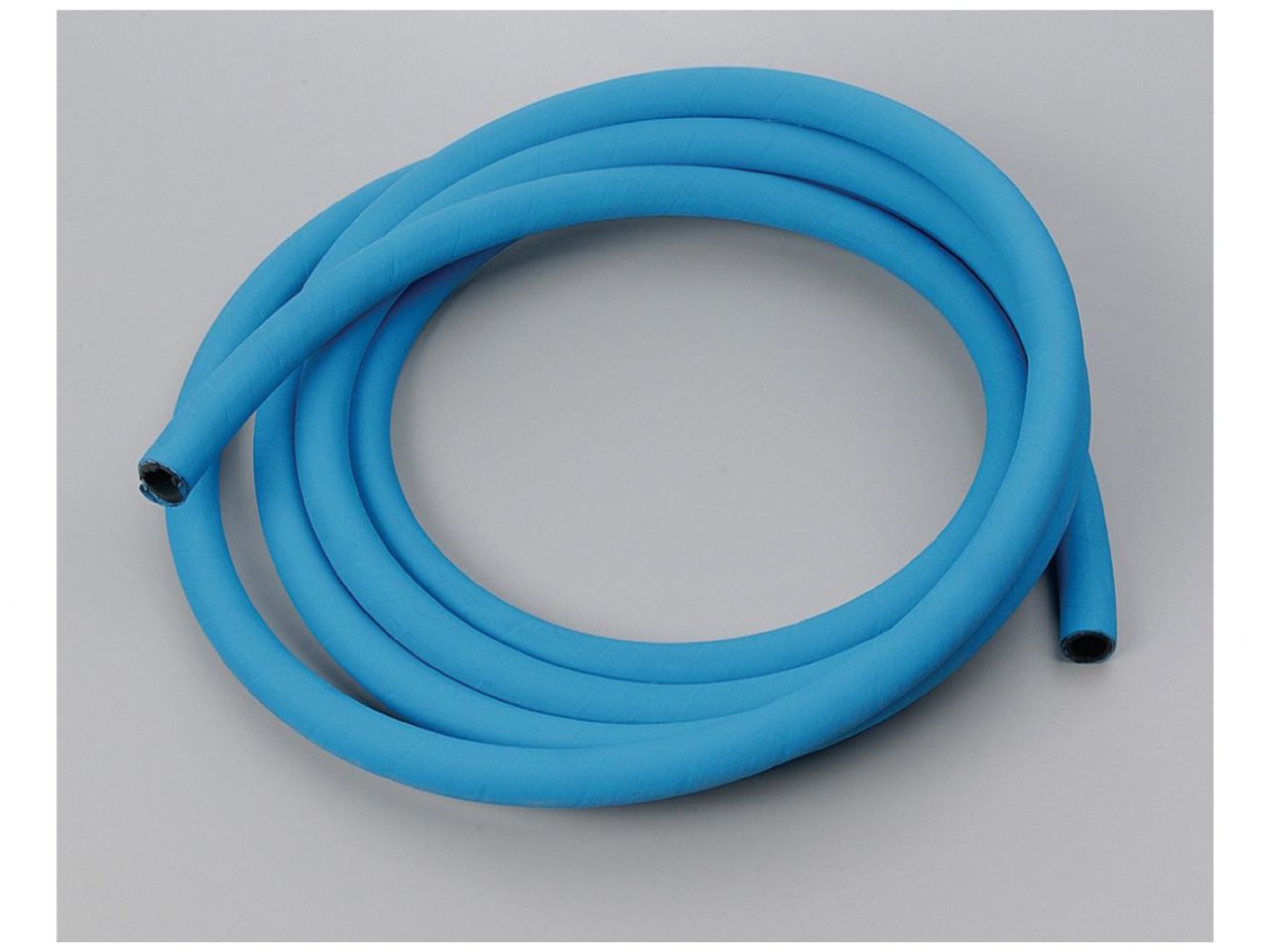

Aeroquip 10 Ft. Hose; -04AN Dash Size
GENERAL SPECIFICATIONS
PRODUCT LENGTH: 120 IN
PRODUCT HEIGHT: .49 IN
PRODUCT WIDTH: .49 IN
PRODUCT WEIGHT: .8 LB
PRODUCT SPECIFICATIONS
VACUUM RATING: 28 iHg
CONSTRUCTION: 1 Ply Braid
TUBE MATERIAL: Elastomer
COLOR: Blue
CONDUCTIVITY: Conductive
DASH SIZE: -4
MINIMUM WORKING TEMPERATURE: -40 F
WORKING PRESSURE: 250 Psi
PACKAGE FORM: Cut length
LAY LINE STYLE: Ink Jet
OUTSIDE DIAMETER: .49 IN
REINFORCEMENT MATERIAL: Textile
INSIDE DIAMETER: .25 IN
COVER MATERIAL: Elastomer
MINIMUM BEND RADIUS: 3 IN
BURST PRESSURE: 1200 Psi
CONDITIONAL TEMPERATURE RANGE: Air not to exceed 121 C [250 F] and water not to exceed 82 C [180 F]
LENGTH CONFIGURATION: 3, 6, 10, 15, 20, 25
QUALIFIED HOSE FITTINGS: Reusable
MAXIMUM WORKING TEMPERATURE: 300 F
Aeroquip 10 Ft. Hose; -04AN Dash Size
Sale price$61.59 USD
