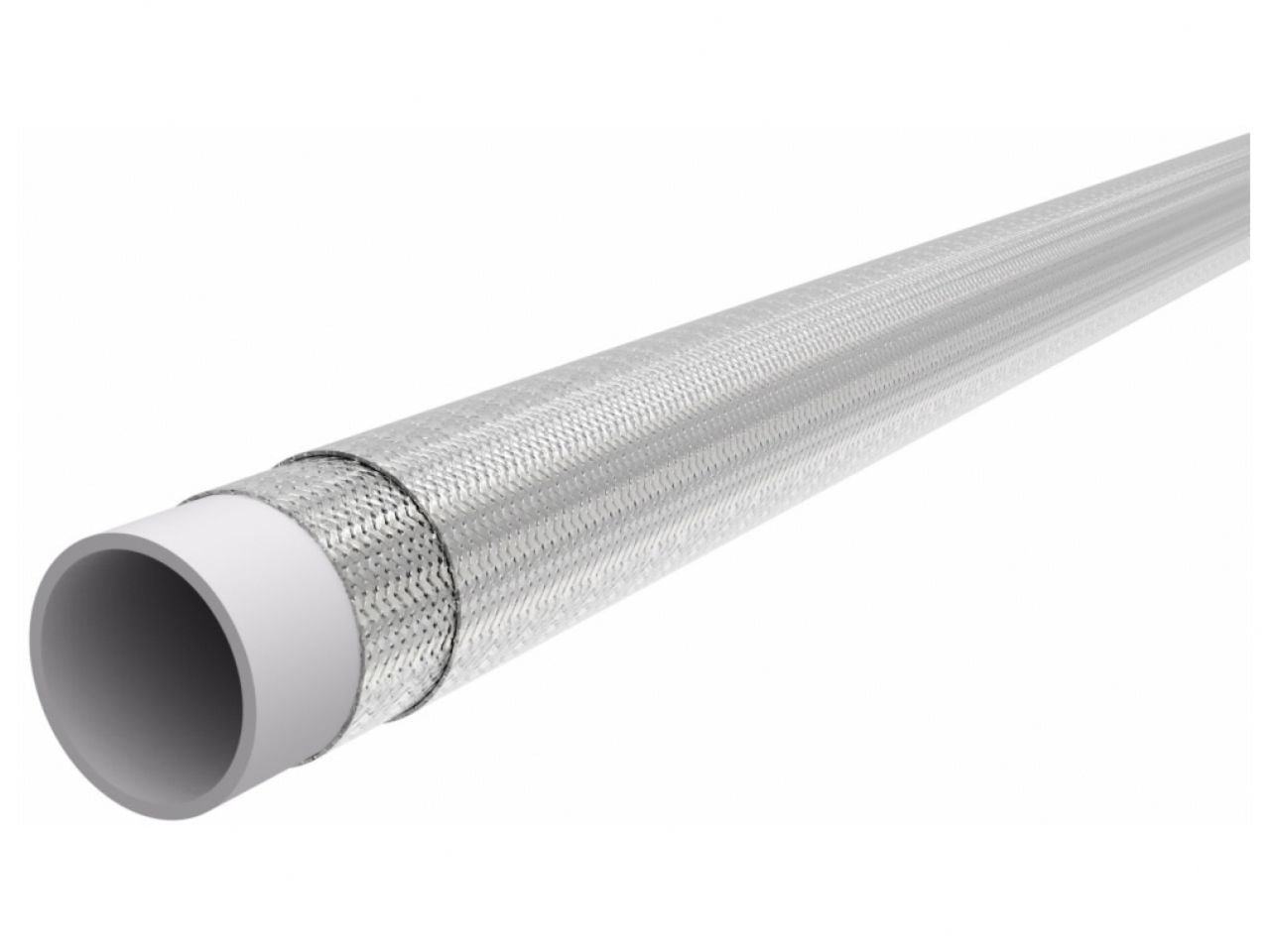

Aeroquip 2Ft. Hose; -32AN Dash; 1.75 IN. I.D.; 2.09 IN. O.D.; 50 PSI; 12.5 Min.
Aeroquip 2Ft. Hose; -32AN Dash; 1.75 IN. I.D.; 2.09 IN. O.D.; 50 PSI; 12.5 Min.
sku: 1114E | mpn: FCA3202
Regular price
$83.13
Regular price
$140.90
Sale price
$83.13
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
GENERAL SPECIFICATIONS
PRODUCT LENGTH: 24 IN
PRODUCT HEIGHT: 2.09 IN
PRODUCT WIDTH: 2.09 IN
PRODUCT WEIGHT: 1.96 LB
PRODUCT SPECIFICATIONS
CONSTRUCTION: 2-ply braid
TUBE MATERIAL: Elastomer
COLOR: Stainless Steel
CONDUCTIVITY: Conductive
DASH SIZE: -32
MINIMUM WORKING TEMPERATURE: -55 F
WORKING PRESSURE: 50 Psi
PACKAGE FORM: Cut length
OUTSIDE DIAMETER: 2.09 IN
REINFORCEMENT MATERIAL: Elastomer with partial stainless steel wire braid
INSIDE DIAMETER: 1.75 IN
COVER MATERIAL: Stainless Steel
MINIMUM BEND RADIUS: 12.5 IN
BURST PRESSURE: 200 Psi
LENGTH CONFIGURATION: 2, 3
QUALIFIED HOSE FITTINGS: Reusable and Crimp fittings
MAXIMUM WORKING TEMPERATURE: 300 F
