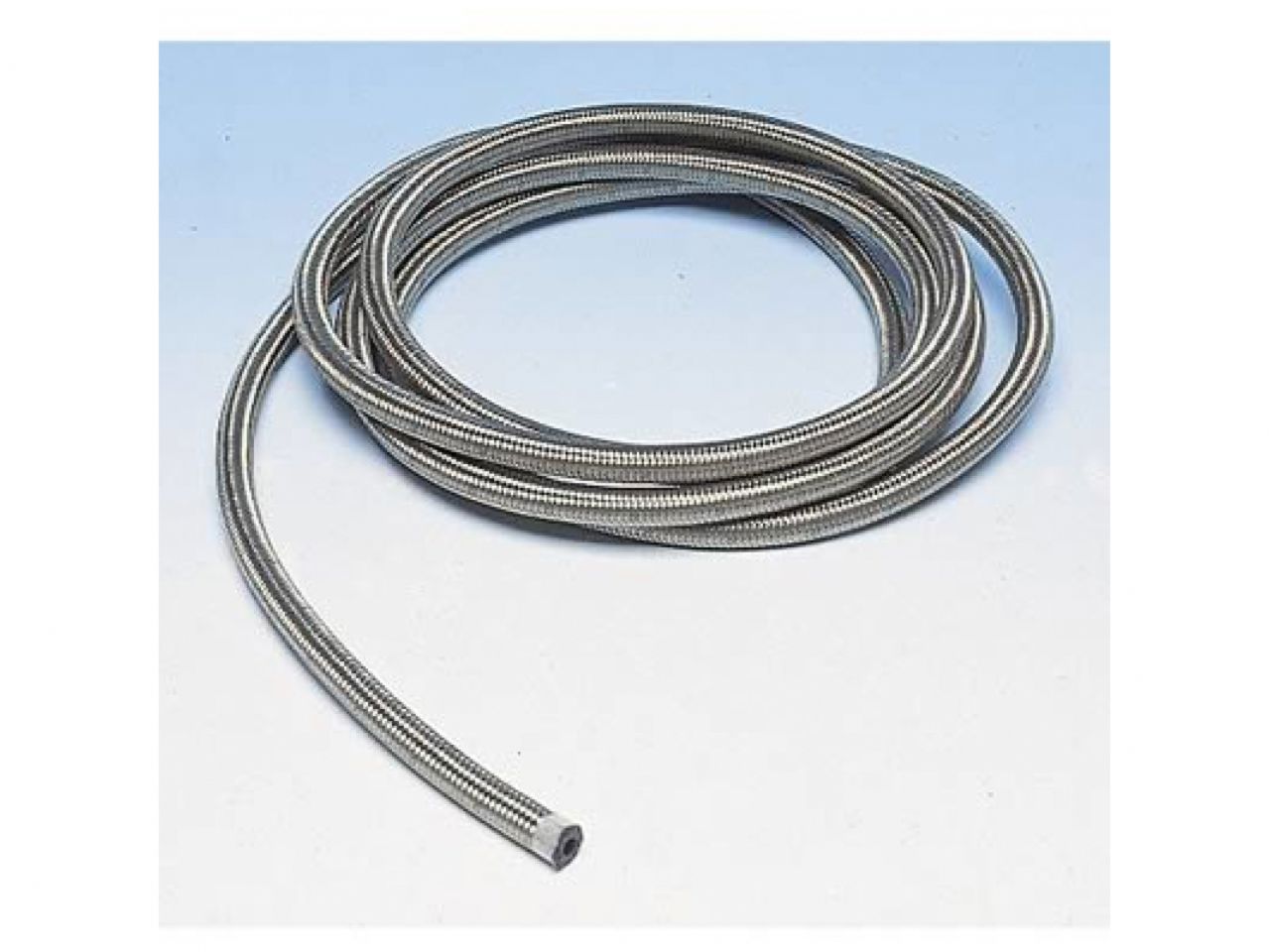

Aeroquip 20ft. Hose; -20AN Dash; 1.13in. I.D.; 1.41in. O.D.; 500 PSI; 8in. Min.
Aeroquip 20ft. Hose; -20AN Dash; 1.13in. I.D.; 1.41in. O.D.; 500 PSI; 8in. Min.
sku: 1114B | mpn: FCA2020
Regular price
$602.49
Regular price
$602.49
Sale price
$602.49
Shipping calculated at checkout.
Low stock: 1 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
GENERAL SPECIFICATIONS
PRODUCT LENGTH: 240 IN
PRODUCT HEIGHT: 1.41 IN
PRODUCT WIDTH: 1.41 IN
PRODUCT WEIGHT: .098 LB
PRODUCT SPECIFICATIONS
CONSTRUCTION: 2-ply braid
TUBE MATERIAL: Elastomer
COLOR: Stainless Steel
CONDUCTIVITY: Conductive
DASH SIZE: -20
MINIMUM WORKING TEMPERATURE: -55 F
WORKING PRESSURE: 500 Psi
PACKAGE FORM: Cut length
OUTSIDE DIAMETER: 1.41 IN
REINFORCEMENT MATERIAL: Elastomer with partial stainless steel wire braid
INSIDE DIAMETER: 1.1299 IN
COVER MATERIAL: Stainless Steel
MINIMUM BEND RADIUS: 8 IN
BURST PRESSURE: 2000 Psi
LENGTH CONFIGURATION: 3, 6, 10, 15, 20
QUALIFIED HOSE FITTINGS: Reusable and Crimp fittings
MAXIMUM WORKING TEMPERATURE: 300 F
