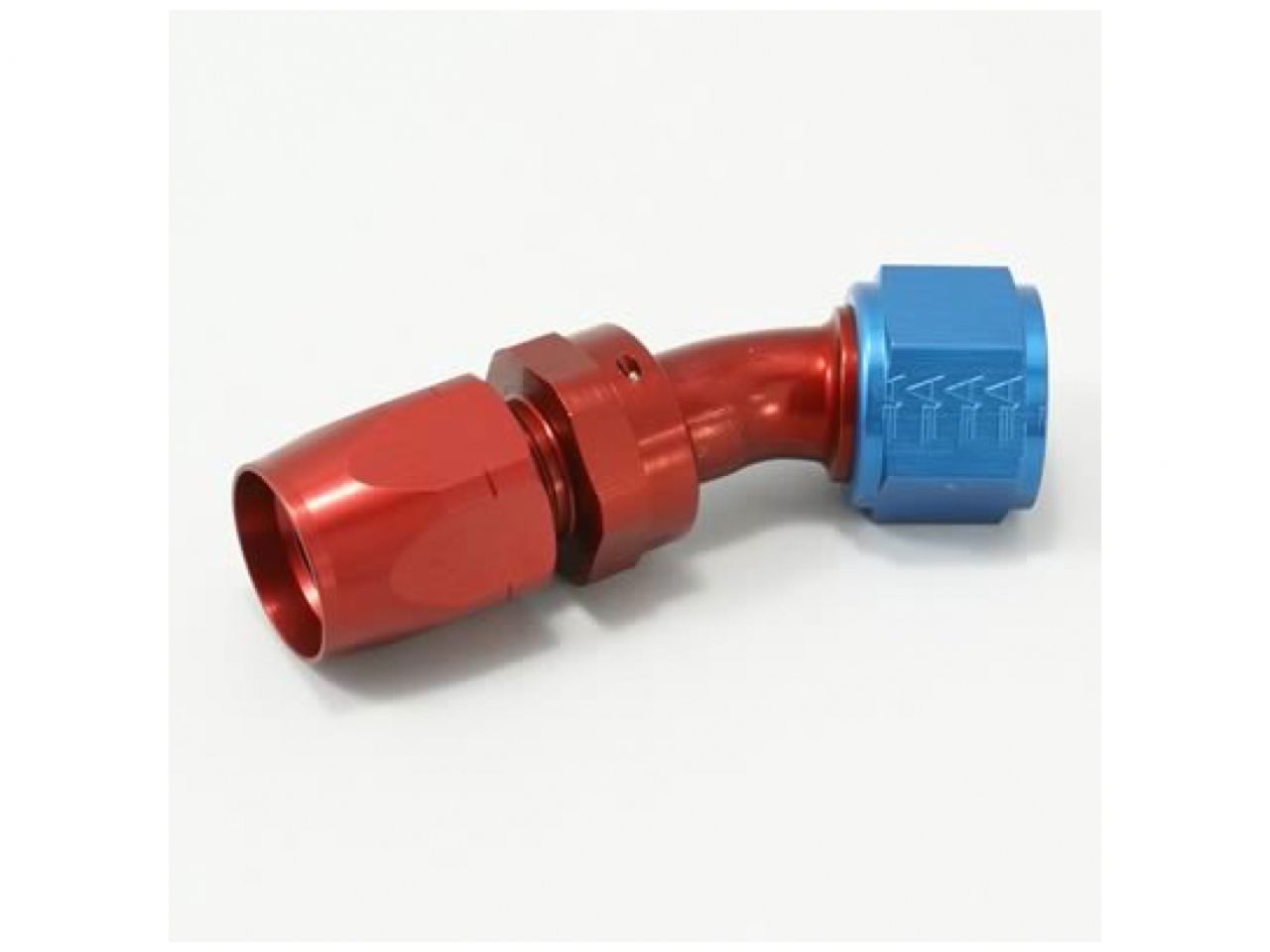

Aeroquip -12AN Hose Size; 30 Deg. Elbow; Reusable Aluminum Swivel

Aeroquip -12AN Hose Size; 30 Deg. Elbow; Reusable Aluminum Swivel

sku: 10ZE5 | mpn: FBM4075
$36.79
$77.26 $36.79
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

GENERAL SPECIFICATIONS

PRODUCT LENGTH: 3.49 IN
PRODUCT HEIGHT: .454 IN
PRODUCT WIDTH: 1.25 IN
PRODUCT WEIGHT: .01 LB

PRODUCT SPECIFICATIONS

COMPATIBLE HOSES: FBA
ITEM TYPE: Fitting Assembly
PRODUCT MATERIAL: Aluminum
THREAD SEALANT: No
HOSE DASH SIZE: -12
OUTSIDE DIAMETER: 1.25 IN
FINISH/PLATING: Red / Blue Anodized
ANGLE (SHAPE): 30 Degree
INSIDE DIAMETER: .59 IN
HEX SIZE 1: 1.25 IN
DROP DIMENSION: .454
THREAD SIZE 1: 1 1/16-12
CONSTRUCTION STYLE: Reusable
END TYPE 2: Line/Hose/Tube
END GENDER 1: Female
END TYPE 1: SAE 37
HOSE CUT-OFF FACTOR: 2.47 IN
HEX SIZE 2: 1.1875 IN
