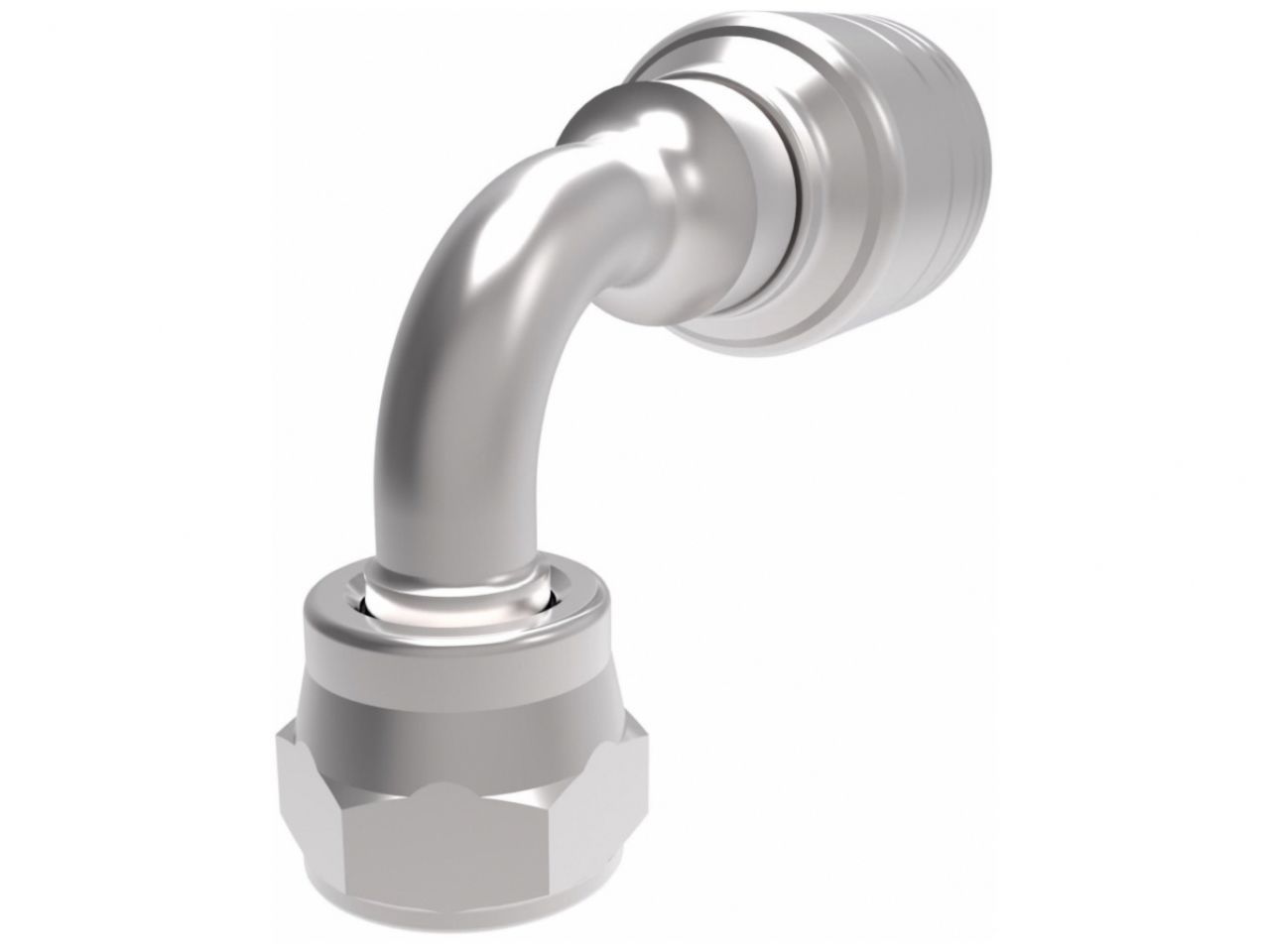

Aeroquip -10AN Hose Size; 90 Deg.; Reusable Female O-Ring Pilot; Nickel-Plated
Aeroquip -10AN Hose Size; 90 Deg.; Reusable Female O-Ring Pilot; Nickel-Plated
sku: 10ZTM | mpn: FBE1734
Regular price
$35.01
Regular price
$64.13
Sale price
$35.01
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
GENERAL SPECIFICATIONS
PRODUCT LENGTH: 3.63 IN
PRODUCT HEIGHT: 1.89 IN
PRODUCT WIDTH: 1.0625 IN
PRODUCT SPECIFICATIONS
COMPATIBLE HOSES: FBF
ITEM TYPE: Fitting Assembly
PRODUCT MATERIAL: Carbon steel
THREAD SEALANT: No
HOSE DASH SIZE: -10
OUTSIDE DIAMETER: 1.0625 IN
FINISH/PLATING: Nickel
ANGLE (SHAPE): 90 Degree
INSIDE DIAMETER: .47 IN
HEX SIZE 1: 1.0625 IN
DROP DIMENSION: 1.89
THREAD SIZE 1: 7/8-14
CONSTRUCTION STYLE: Reusable
END TYPE 2: Line/Hose/Tube
END GENDER 1: Female
END TYPE 1: SAE 37
HOSE CUT-OFF FACTOR: 3.01 IN
HEX SIZE 2: .9375 IN
