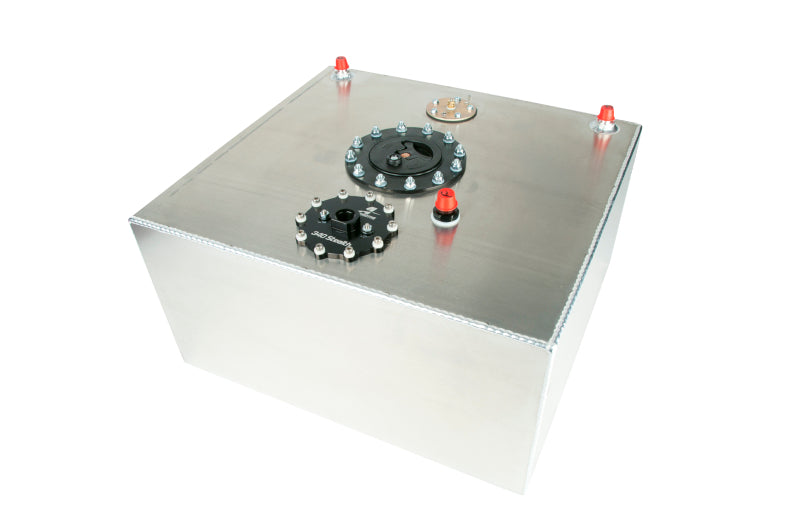

Aeromotive 15 Gallon 340 Stealth Fuel Cell

Aeromotive 15g 340 Stealth Fuel Cell

Stealth Fuel Cells featuring a built-in Aeromotive 340 Stealth Fuel Pump.

Much like our complete line-up of Stealth Fuel Systems, the 340 Stealth Cells feature an internal fuel pump. In this case, its our extremely popular 340 lph Stealth Fuel Pump. Capable of supporting big power in an OE style pump configuration, the 340 Fuel Pump is whisper quiet and provides enough flow for 700+ HP.

If the Stealth Fuel Cells are an option you are considering, the 340 Cell might be perfect for your application. Especially if you are building on a budget. These cells provide a number of performance advantages including; ensuring quiet cool operation for the fuel pump by keeping it submerged through innovative baffling, even in extreme driving conditions. They are also whisper quiet and the ease of installation is unmatched. No drilling or tapping, no bulkheads, sumps or welding required. Simply strap the fuel cell in, hook up your lines and wires and your done. These cells also save you a bundle (space, time and cash) by eliminating all of the pre-pump plumbing usually required to run a fuel cell.

Features:
Aeromotive 340 lph Fuel Pump (Internal) P/N 11140
Pre-pump filter sock assembly
Innovative baffling system
ORB-08 outlet port
(1) AN-08 male return line port
(2) AN-08 vents w/ roll-over valves
0-90 Ohm Universal Fuel Level Sending Unit
15 gallon capacity
Standard flush mount lid assembly
Natural aluminum finish

Dimensions: 18" L x 20" W x 10" H

Note: If running e85, consider P/N 18660
