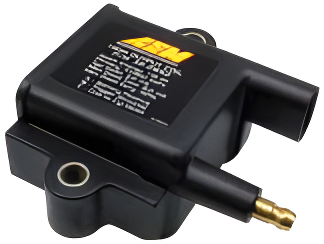

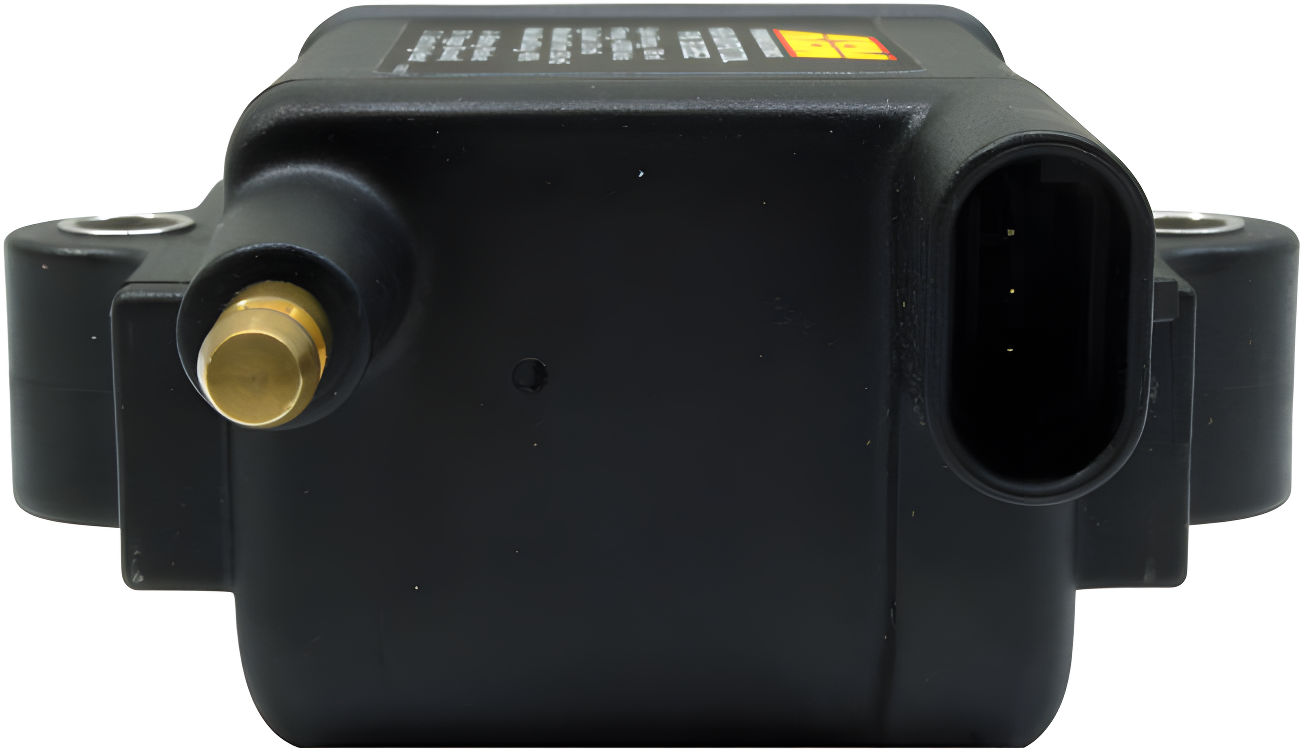

Wiring Specialties SR20DET AEM High Output Inductive Dumb Coil AEM-30-2852

AEM’s High-Output Inductive Coils each deliver over 100mJ of spark energy and a minimum of 40,000 Volts—as much as most CDI systems, without the need for a CDI module! They also provide very long spark duration at full energy, unlike CDI systems and multiple spark systems which fire off small spark events prior to and after their CDI burst to mimic longer spark duration. Available for vehicles with external igniters Massive Spark Energy, up to 118 mJ Incredibly long spark duration, up to 3.2mS Up to 41kV Output Voltage, without a CDI CDI-like spark energy without the need for a CDI Less expensive than aftermarket LS1 coils Robust construction allows them to be mounted almost anywhere Heavy-duty, weatherproof and shockproof design Can be installed directly to engine TECHNICAL SPECIFICATIONS

• Primary Resistance: 0.5 O +/- 10%
• Primary Inductance: 4.8 mH +/- 15%
• Secondary Resistance: 8.5 kO +/- 20%
• Secondary Inductance: 22.5 H +/- 20%
• Output (50pF load): 41 kV +/- 10%
• Output Energy: 118 mJ +/- 7%
• Peak Secondary Current: 100 mA +/- 7%
• Arc Duration: 3.2 mS +/- 10%
• Turns Ratio 71:1
• Maximum Battery Voltage: 17 Volts
• Base Dwell: 3.0 mS
• Max Continuous Dwell: 9 mS but don’t exceed 40% duty cycle
• Max Intermittent Dwell: 80% duty cycle, 5 seconds maximum

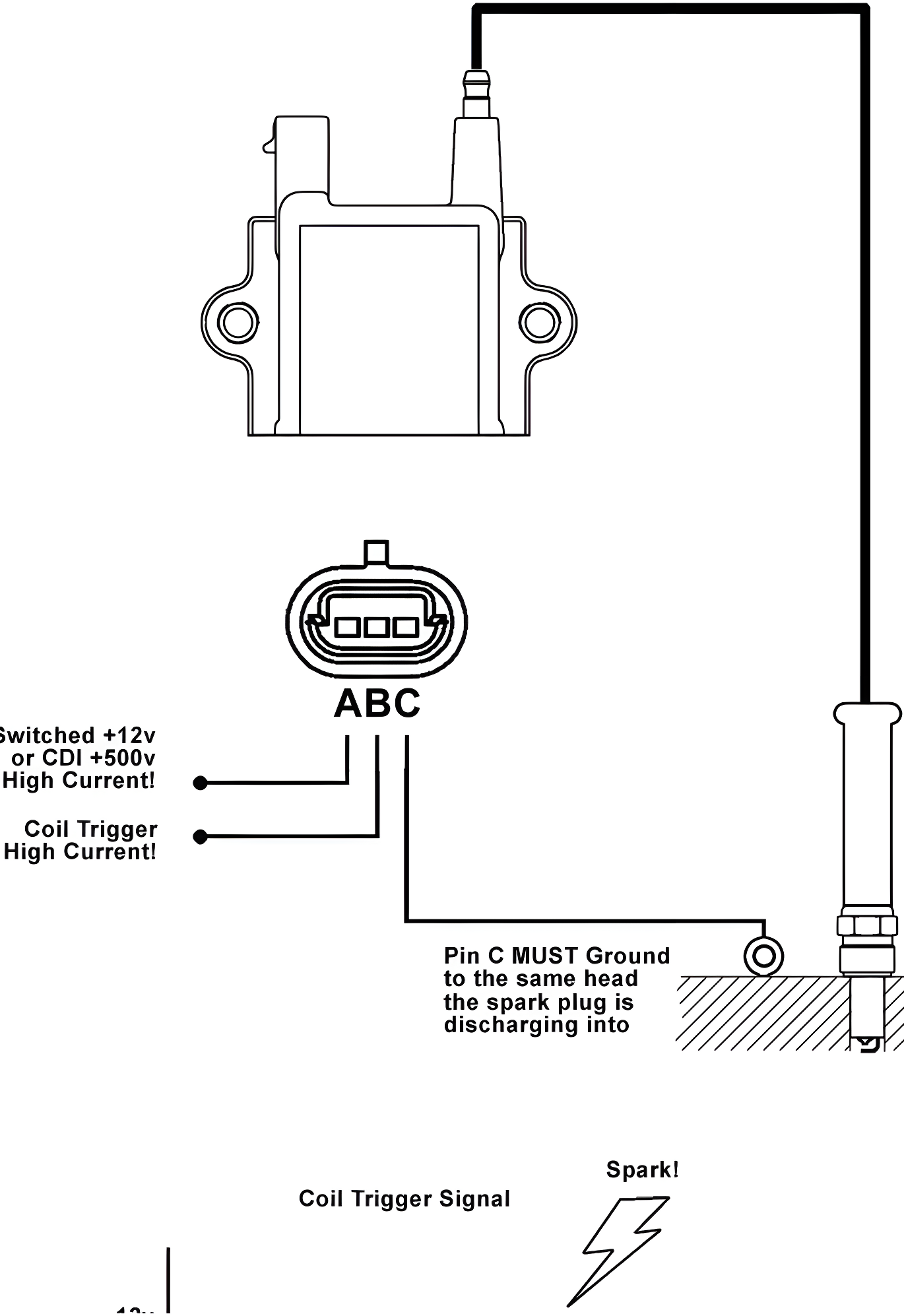

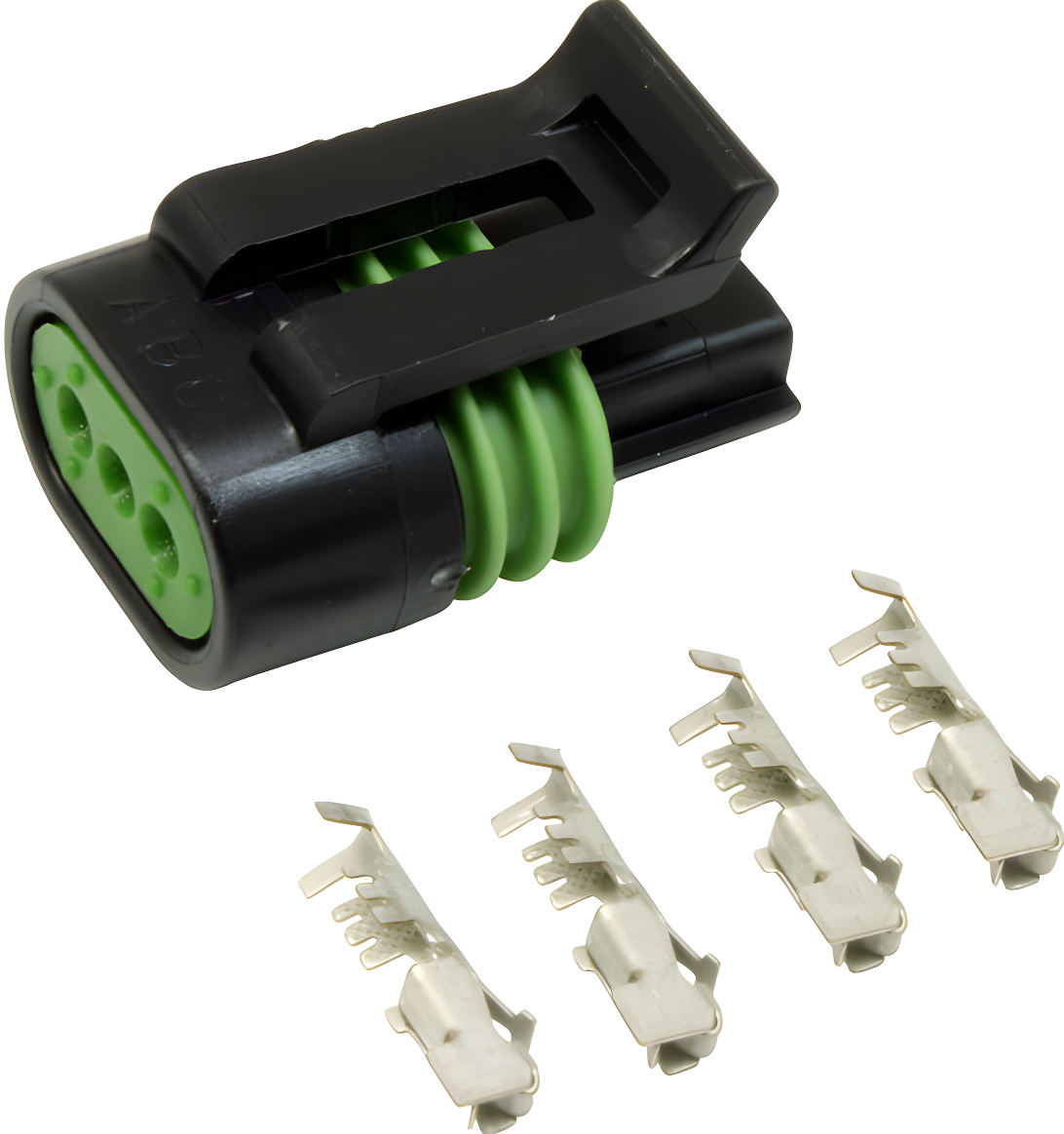

• Mating Connector: Packard/Delphi 12162182 “Pull to Seat”
• Mating Contacts: Packard/Delphi 12124075 “Pull to Seat”
• High Tension Wire Terminal: HEI “spark plug top” Style
