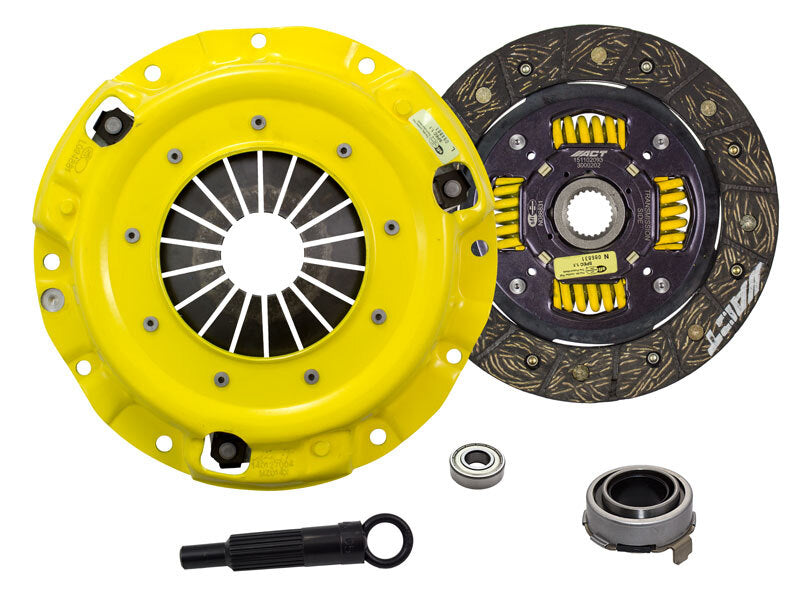

ACT XT/Perf Street Sprung Disc Clutch Kit NA Mazda Miata 1.6L 89-93
ACT XT/Perf Street Sprung Disc Clutch Kit Mazda Miata 1.6L 1990-1993
The ZM1-XTSS kit features an Xtreme pressure plate for the most demanding driver. The ACT Xtreme pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
- Feel - A moderate to stiff pedal feel; smooth engagement with stock to low gear rattle
- Life - Longer clutch life achieved through ACT's exclusive diaphragm design
- Quality - Premium organic friction materials for heat tolerance, faster recovery from overheating and prevents warping of mating surfaces
- Recommended Use - Recommended for street and race use
- ACT Difference - All ACT pressure plates are dynamically computer balanced for smooth operation at high RPM
Specs:
- Torque Capacity (ft/lbs.): 270
- Torque Capacity Over OE: 100%
- Disc Type: Street Disc
- Spline Count: 22
- Spline Size (in.): 15/16
- Disc Diameter (in.): 7.9
- Disc Diameter (mm.): 200
- Pressure Plate Type: Xtreme
- Product Weight (lbs.): 10.9
- Kit Part # Contents: 3000202, AT05, MZ014X, PB1005, RB813
- Warranty (Product Warranty): One (1) Year from Retail Purchase
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1997 | Mazda | Miata | Base |
| 1993 | Mazda | Miata | LE |
| 1994 - 1997 | Mazda | Miata | M Edition |
| 1991 | Mazda | Miata | SE |
| 1997 | Mazda | Miata | STO |
