ACT EVO 10 5-Speed Only Mod Twin XT Street Kit Unsprung Mono-Drive Hub Torque Capacity 875ft/lbs T2S-M07
Clutch Kit

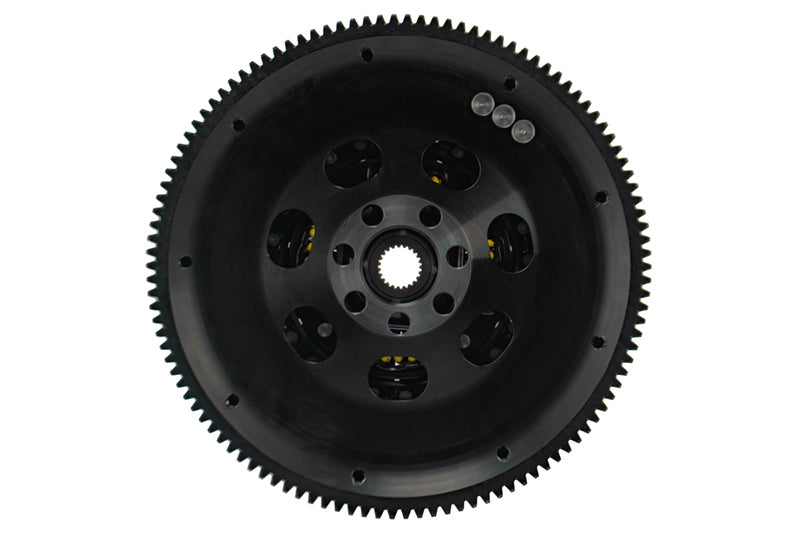

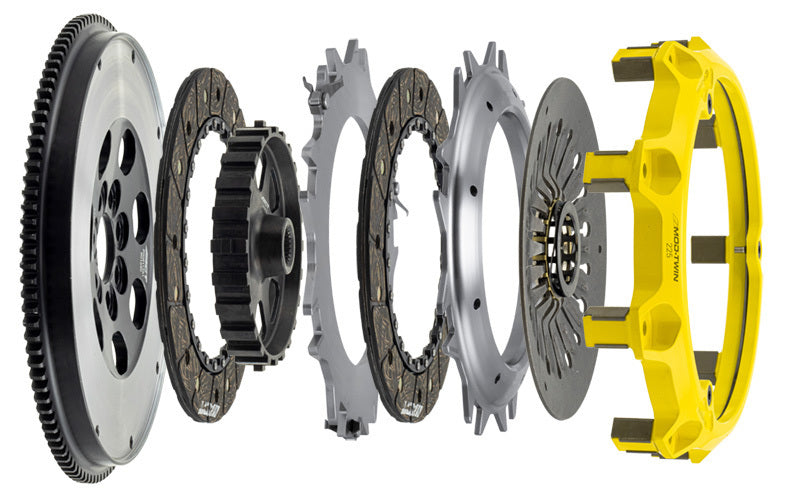

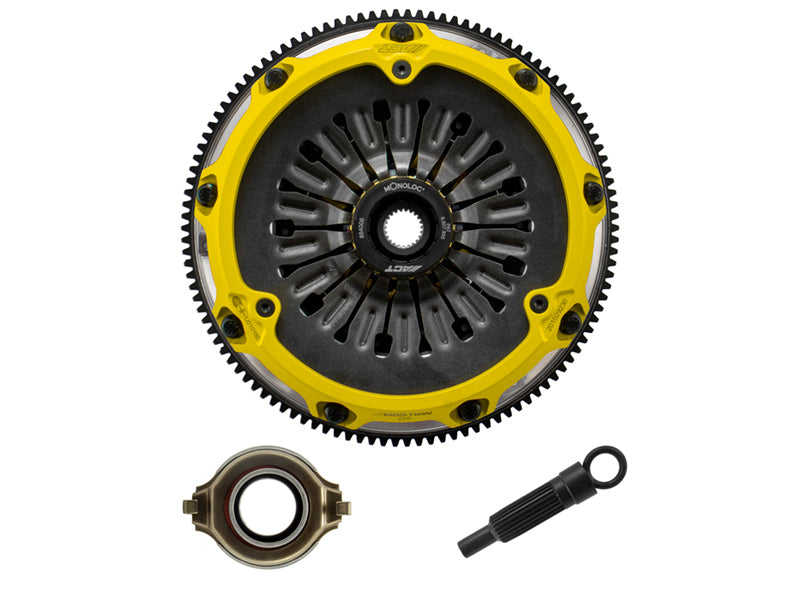

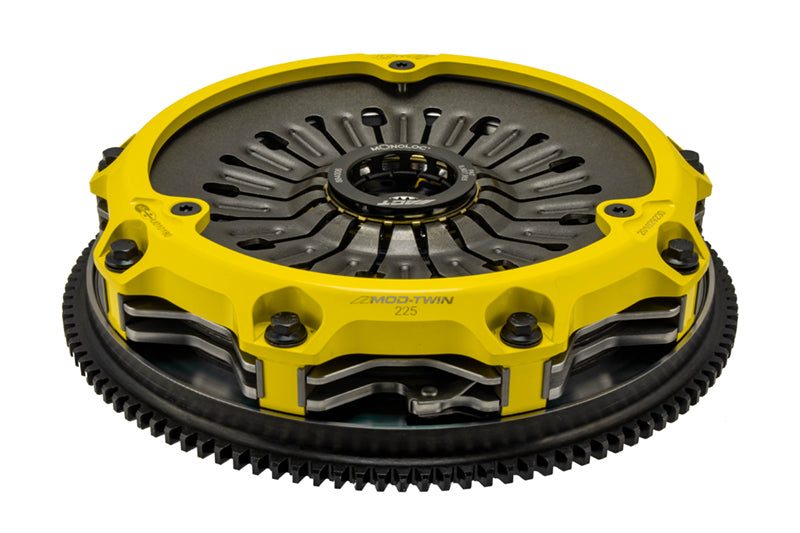

T2S-M07 Mod-Twin 225 XT Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWDs by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Soft progressive engagement, light pedal effort, quick shifting, with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
"Excellence in Performance", backed by the best one-year warranty in the industry!
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition, SE Limited Edition, SE Limited Edition Sportback |
| 2008 - 2015 | Mitsubishi | Lancer | Evolution GSR, DE, Evolution MR, ES, GTS |
| 2010 - 2011 | Mitsubishi | Lancer | Evolution MR Touring, Ralliart Sportback, GTS Sportback |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2011 - 2015 | Mitsubishi | Lancer | GT, GT Sportback, SE Sportback |
| 2014 | Mitsubishi | Lancer | Limited Edition, Evolution |
| 2010 - 2015 | Mitsubishi | Lancer | SE, Ralliart |
