ACT EVO 10 5-Spd Only Mod Twin XX Race Kit Unsprung Hub Torque Cap 1340ft/lbs Not For Street Use T3R-M07

ACT Mod-Twin Kits

Clutch Kit

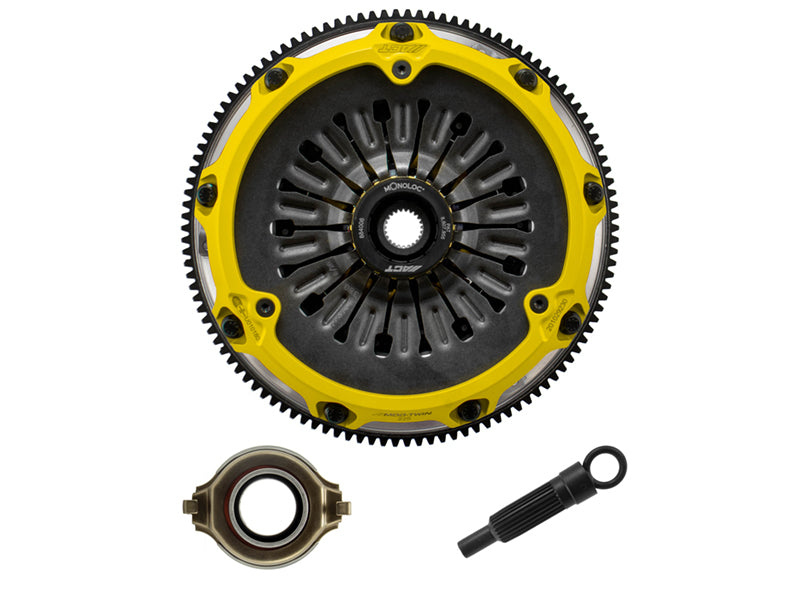

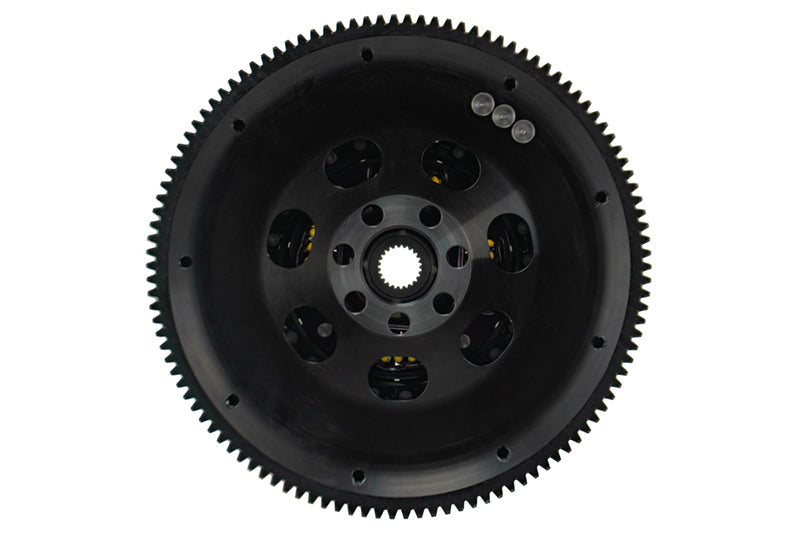

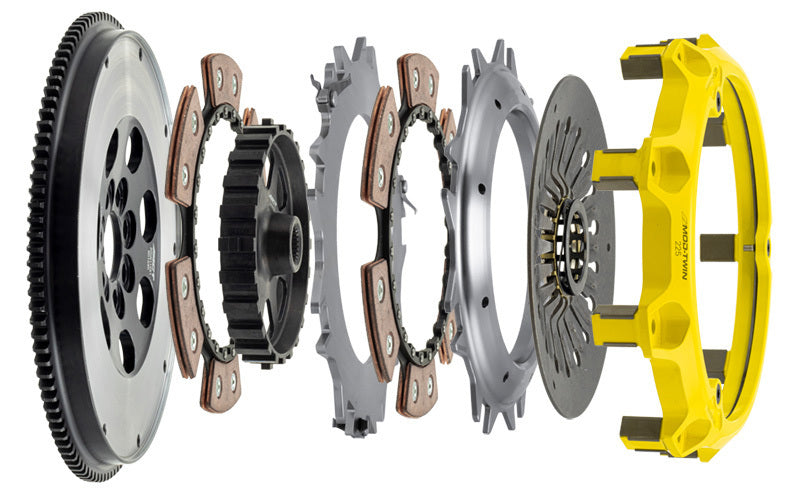

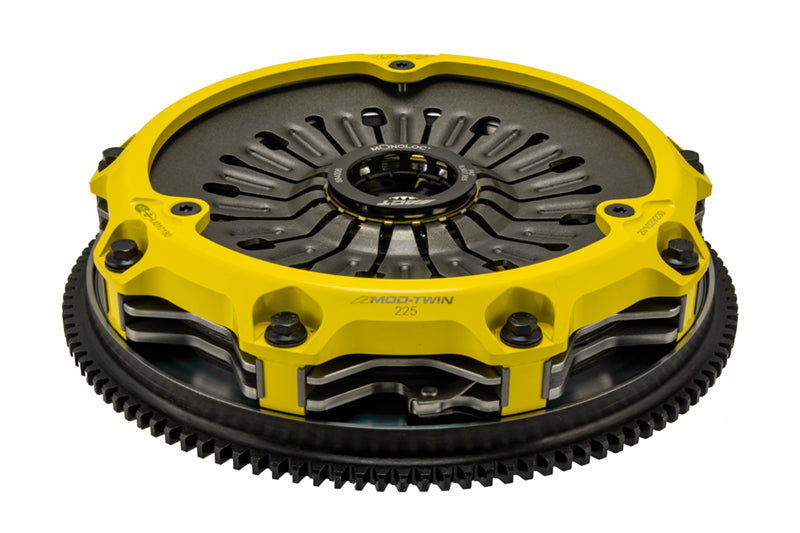

T3R-M07 Mod-Twin 225 XX Rigid Race Kit tackles aggressive launches and rapid shifting of high powered AWDs by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Predictable aggressive engagement, increased pedal effort, quick shifting, possible start-off judder with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

"Excellence in Performance", backed by the best one-year warranty in the industry!

Vehicle Fitments:
