ACT EVO 10 5-Spd Only Mod Twin XT Race Kit Sprung Hub Torque Cap 1120ft/lbs Not For Street Use T2R-M05
Clutch Kit

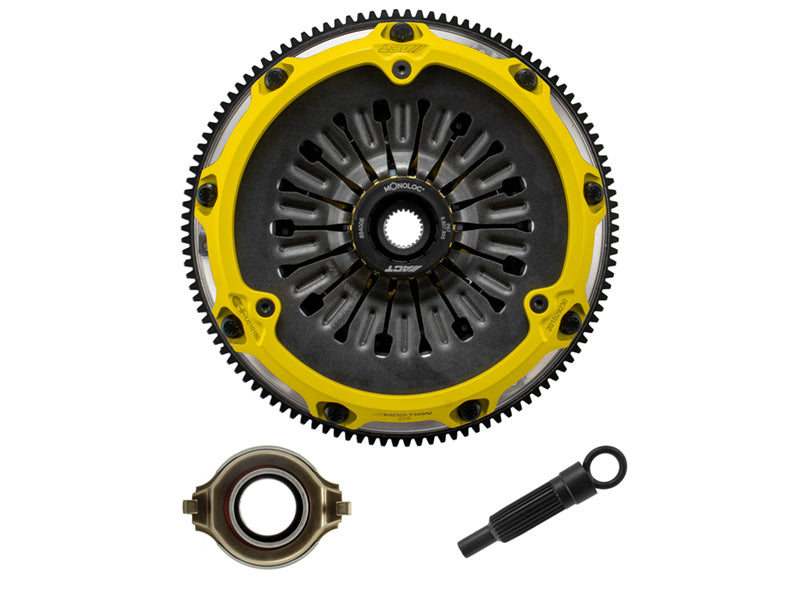

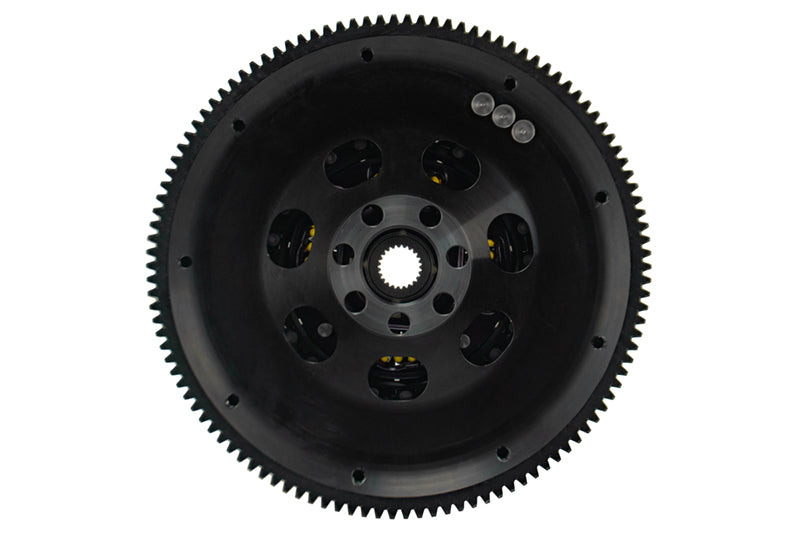

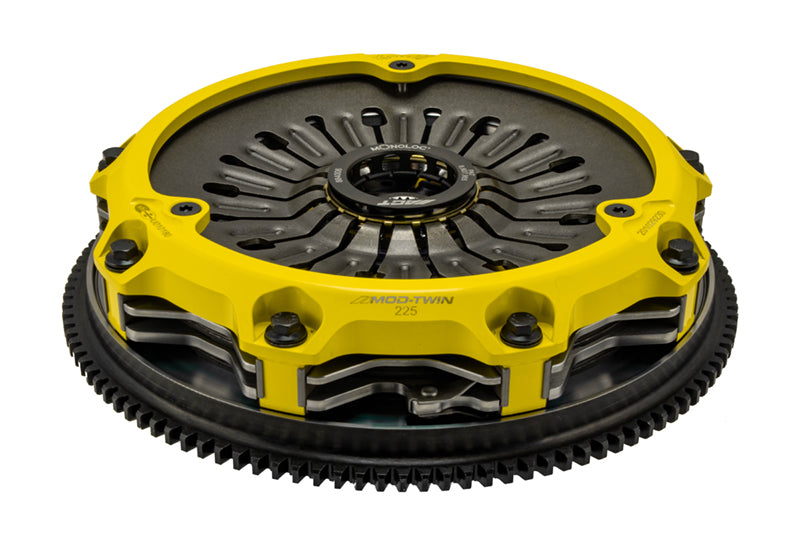

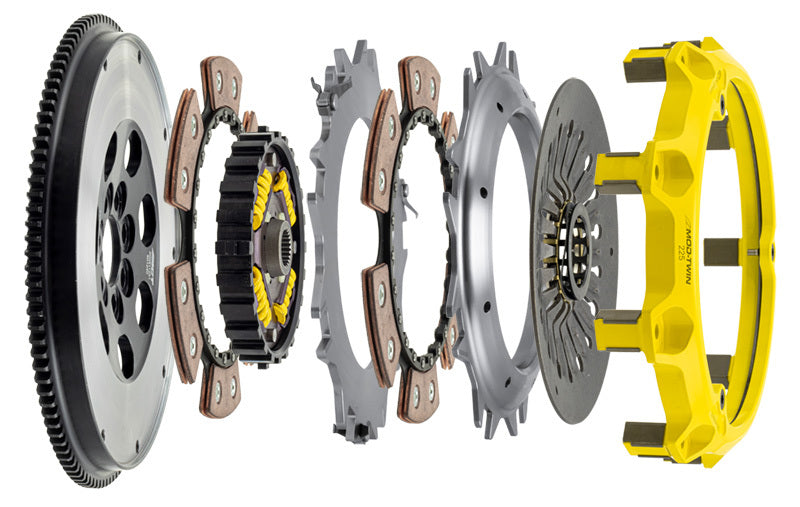

T2R-M05 Mod-Twin 225 XT Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWDs by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Predictable aggressive engagement, light pedal effort, smooth shifting, possible start-off judder with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
"Excellence in Performance", backed by the best one-year warranty in the industry!
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2014 | Mitsubishi | Lancer | ES Sportback |
| 2015 | Mitsubishi | Lancer | Evolution Final Edition, SE Limited Edition, SE Limited Edition Sportback |
| 2008 - 2015 | Mitsubishi | Lancer | Evolution MR, ES, DE, GTS, Evolution GSR |
| 2010 | Mitsubishi | Lancer | Evolution SE |
| 2014 | Mitsubishi | Lancer | Evolution, Limited Edition |
| 2010 - 2011 | Mitsubishi | Lancer | Ralliart Sportback, GTS Sportback, Evolution MR Touring |
| 2011 - 2015 | Mitsubishi | Lancer | SE Sportback, GT, GT Sportback |
| 2010 - 2015 | Mitsubishi | Lancer | SE, Ralliart |
