ACT 14-19 Chevrolet Corvette / 15-19 Chevrolet Corvette Z06 Mod-Twin 10.5 HD Rigid Street Clutch Kit T1S-G11

ACT Mod-Twin Kits

Transmission Clutch Kit

Soft, progressive engagement, lightest pedal effort, smooth shifting with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, and premium friction materials ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

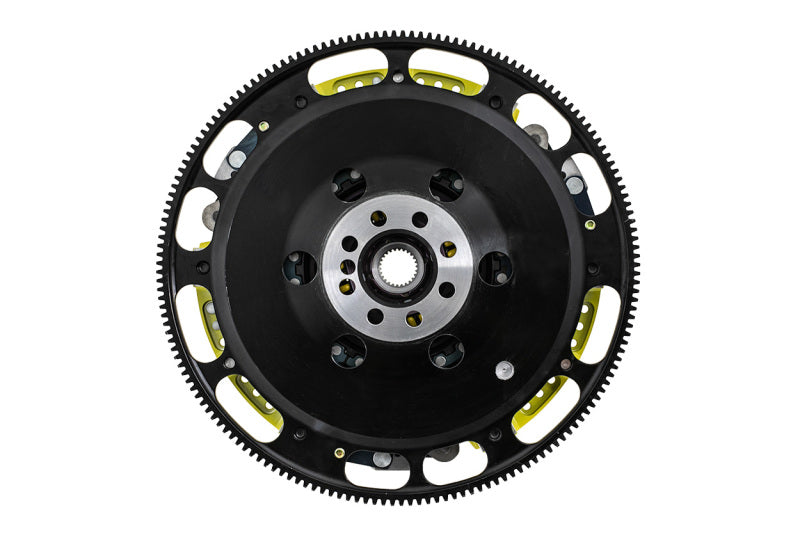

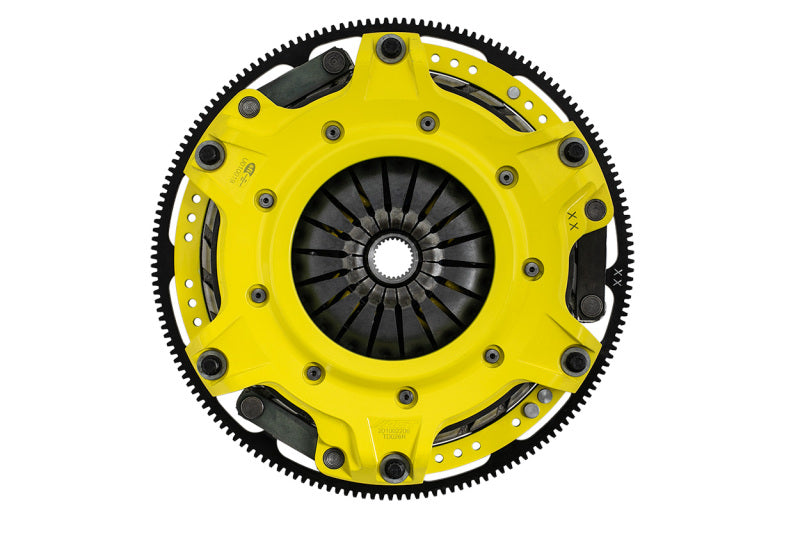

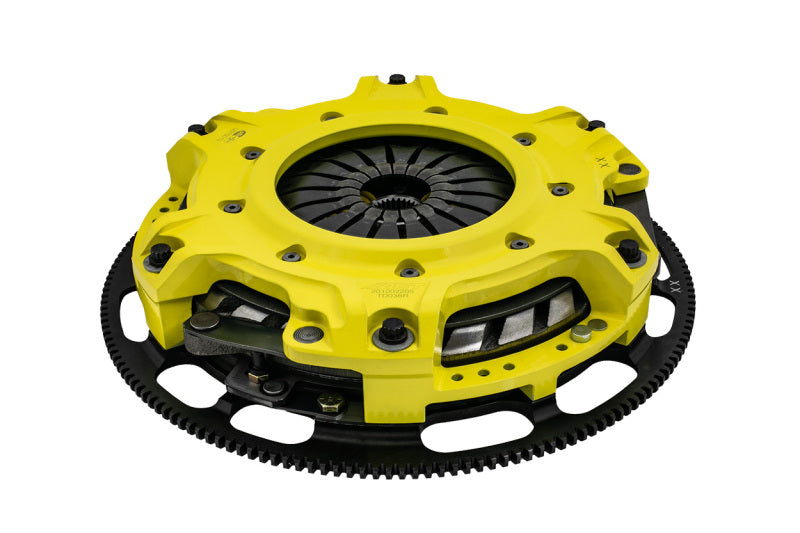

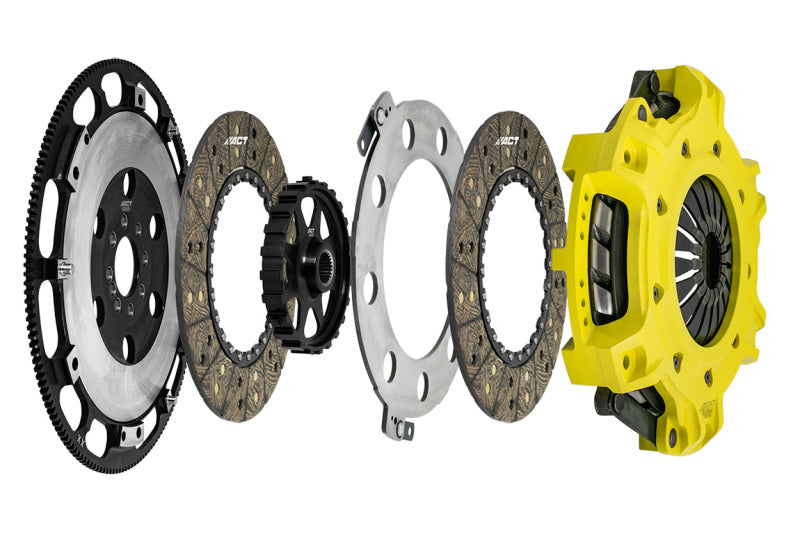

T1S-G11 Mod-Twin 10.5 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high-powered street machines by combining twice the organic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a light and consistent pedal feel. Steel-backed Friction Plates with high quality performance organic friction materials deliver stable friction coefficient, improved heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability, extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.

Mod-Twin 10.5 HD Rigid Street
