ACT 14-19 Chevrolet Corvette / 15-19 Chevrolet Corvette Z06 Mod-Twin 10.5 HD Rigid Race Clutch Kit T1R-G11
ACT Mod-Twin Kits
Transmission Clutch Kit
Predictable, aggressive engagement, lightest pedal effort, quick shifting, possible start-off judder with mild to moderate transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, and premium friction materials ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Drag, Road or Rally Racing; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified

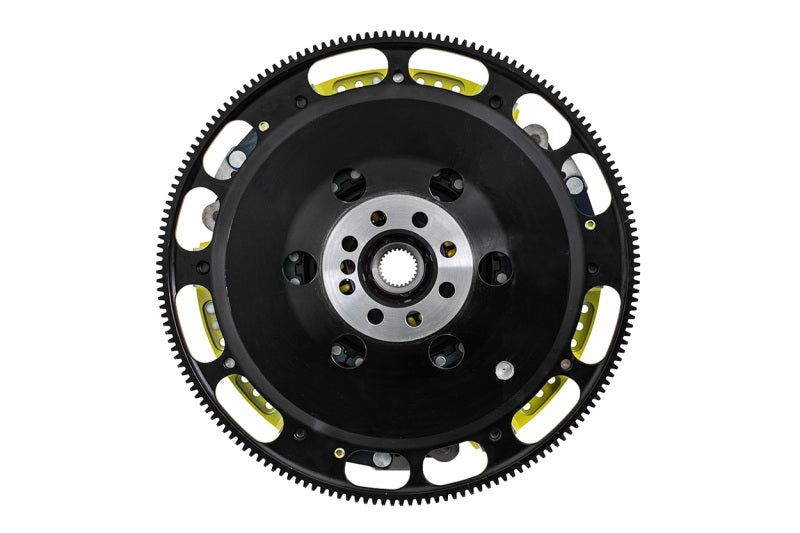

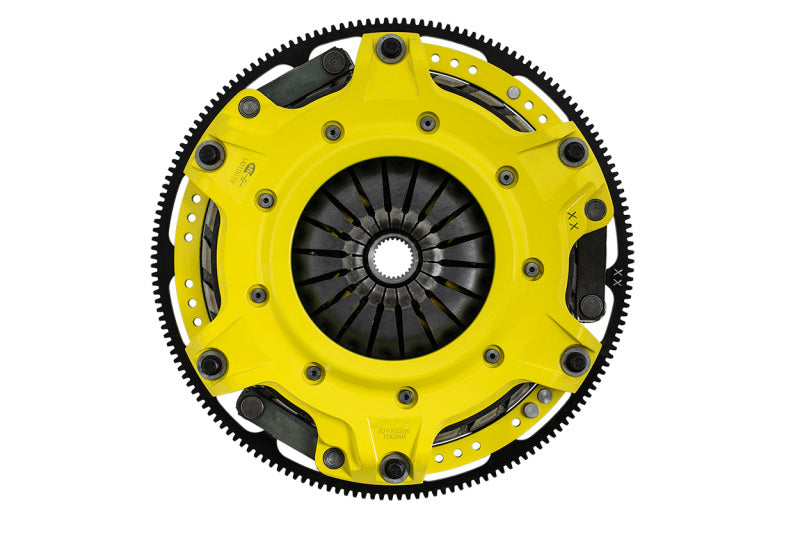

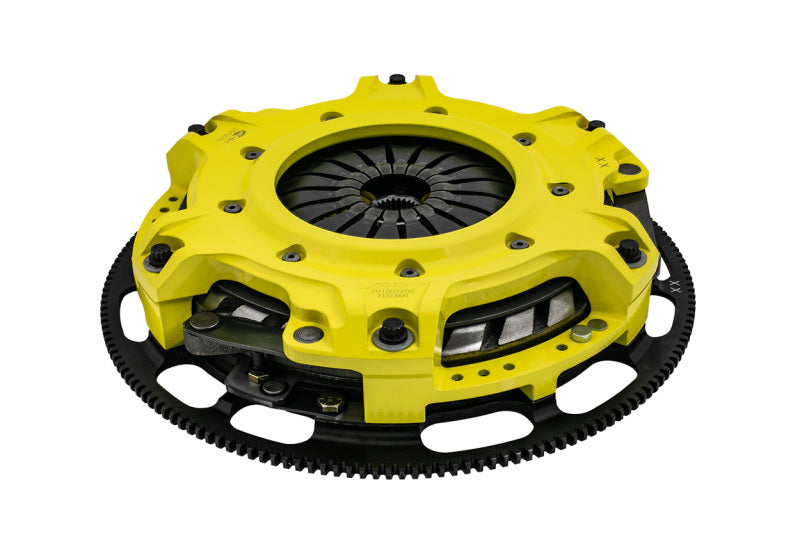

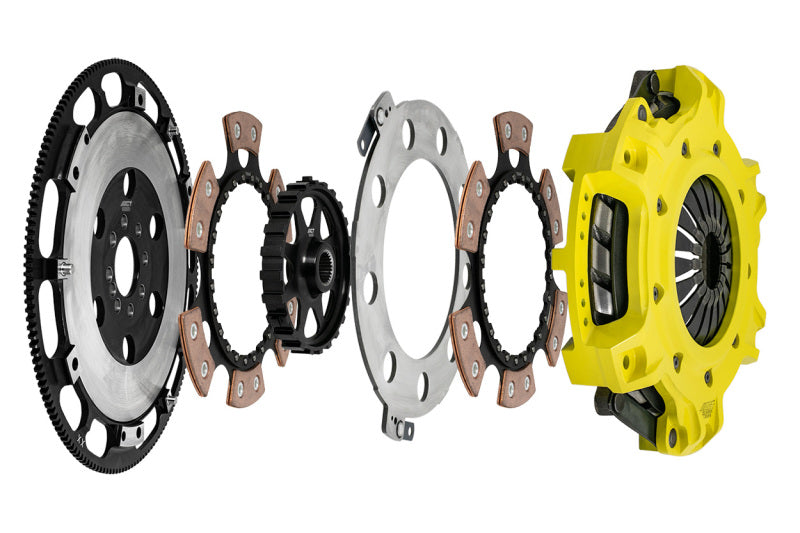

T1R-G11 Mod-Twin 10.5 HD Rigid Race Kit tackles aggressive launches and rapid shifting of high-powered machines by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a light and consistent pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability, extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
Mod-Twin 10.5 HD Rigid Race
