ACL 6B2960H/X Race Rod Bearing Set RB26DETT RB25 DET

SKU: 058MK | MPN:  6B2960H-STD
Only 34 units left

Sale price$55.63 USD


ACL performance race rod bearings for the Nissan RB265DETT & RB25DET engine.  ACL race bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures.  Each ACL race bearing design features the following:

  • Large chamfer to accomodate larger crankshaft fillets
  • 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
  • Incresed crush and tighter wall tolerance for better seating
  • Improved overlay and reduced thickness for increased fatigue strength
  • Hardened steel backing to maintain crush under high loads and temperatures

*** Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE ***

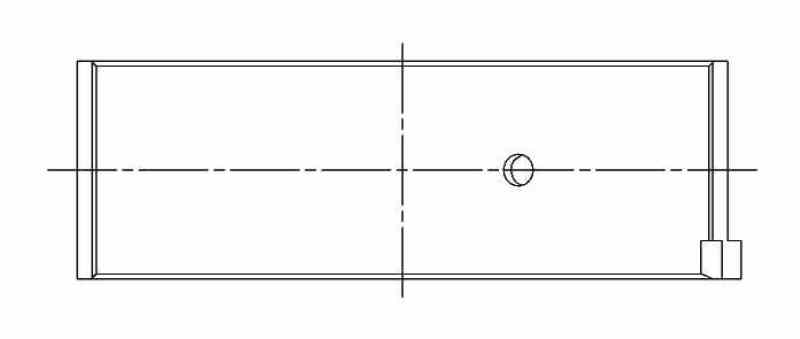

*** Picture shown is reference only, not the RB Rod kit ***



ACL Race Rod Bearings Nissan RB26DETT Detailed Specifications
Part Number 6B2960H 6B2960HX
Available Sizes

STD, 0.025, 0.25

STD

Oil Clearance Standard +0.001" Extra
Half Type Identical Halves Identical Halves
Material Tri-metal hardened steel backs Tri-metal hardened steel backs
Min. Std. Shaft Size 1.8880" / 47.956mm 1.8880" / 47.956mm
Max. Std. Shaft Size 1.8887" / 47.974mm 1.8887" / 47.974mm
Min. Std. Tunnel Size 2.0079" / 51.000mm 2.0079" / 51.000mm
Max. Std. Tunnel Size 2.0084" / 51.013mm 2.0084" / 51.013mm
Max Wall at Crown 0.0592" / 1.503mm 0.0587" / 1.490mm
Max. Overall Length 0.6732" / 17.10mm 0.752" / 19.10mm
Notes -


Vehicle Fitments:

Year Make Model Submodel
1989 - 1998 Nissan 240SX Base, SE
1991 - 1998 Nissan 240SX LE
1989 - 1990 Nissan 240SX XE
1997 - 1998 Nissan Skyline 2.8 Nismo 400R
2001 - 2003 Nissan Skyline 250GTe, 300GT, 250GT Four, 250GT
1998 - 2001 Nissan Skyline 25GT-X Turbo, 25GT-X Four, 25GT, 25GT-V, 25GT Turbo, 25GT Four, GT-SE, GT, 25GT-X
2003 Nissan Skyline 350GT
2002 - 2003 Nissan Skyline 350GT-8, 250GTm
1995 - 2002 Nissan Skyline GT-R, V-Spec
1995 Nissan Skyline GTS25 Type-G SE, GTS Type-G, GTS25 Type-G, GTS Urban Runner S, GTS25t Type-G, GTS25, GTS Urban Runner, GTS25t Type-M, GTS25t Type-M AERO, GTS-4 Type-G
1996 - 1998 Nissan Skyline GTS25 Type-X, GTS-4 Type-X, GTS Type-S, GTS Type-X, GTS25 Type-SS, GTS25t Type-M Spec-I, GTS25t Type-M Spec-II
1995 - 1998 Nissan Skyline GTS25t Type-M ACTIVE LSD, GTS, GTS25 Type-S, GTS-4
2001 - 2002 Nissan Skyline M-Spec
2002 Nissan Skyline Nur Spec II, Nur Spec
1999 - 2002 Nissan Skyline V-Spec II N1
