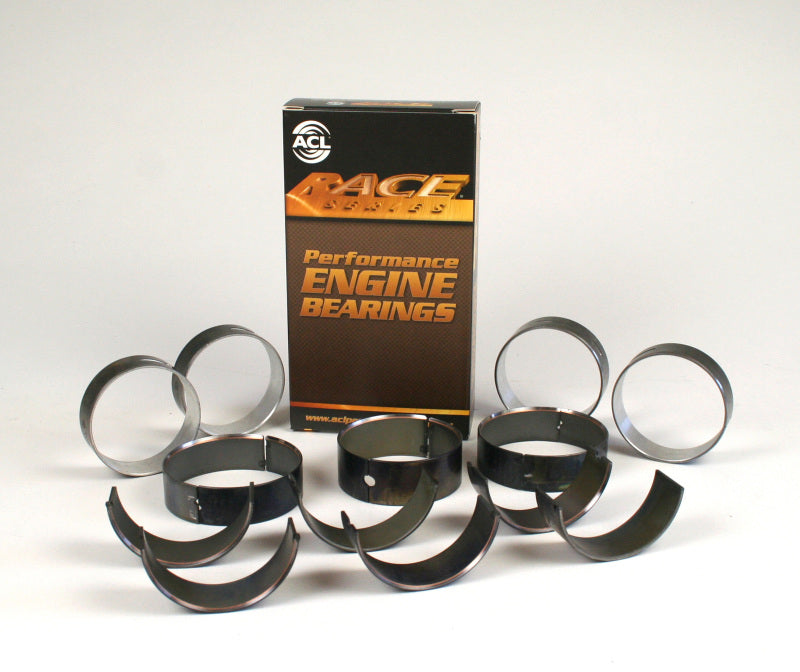

• ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD 5M1644HX-STD Photo - Primary
  • ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD 5M1644HX-STD Photo - Primary

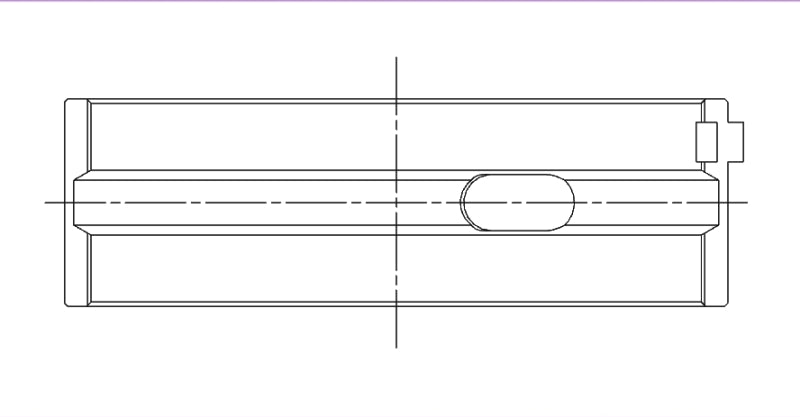

  • ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD 5M1644HX-STD Technical Drawing
  • ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD 5M1644HX-STD Technical Drawing
1 4
ACL Authorized Dealer

ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD

ACL Race Series Main Bearings VW 1595-1781-1984cc Size: STD

sku: 01BFY | mpn: 5M1644HX-STD
$95.54
$95.54
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures.  Each ACL race bearing design features the following:

  • Large chamfer to accomodate larger crankshaft fillets
  • 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
  • Incresed crush and tighter wall tolerance for better seating
  • Improved overlay and reduced thickness for increased fatigue strength
  • Hardened steel backing to maintain crush under high loads and temperatures
  • Size: STD

Note: Pictures may not be actual product.



HX Series Bearings are .0005" thinner per half to give .001" extra clearance for standard sized cranks.
