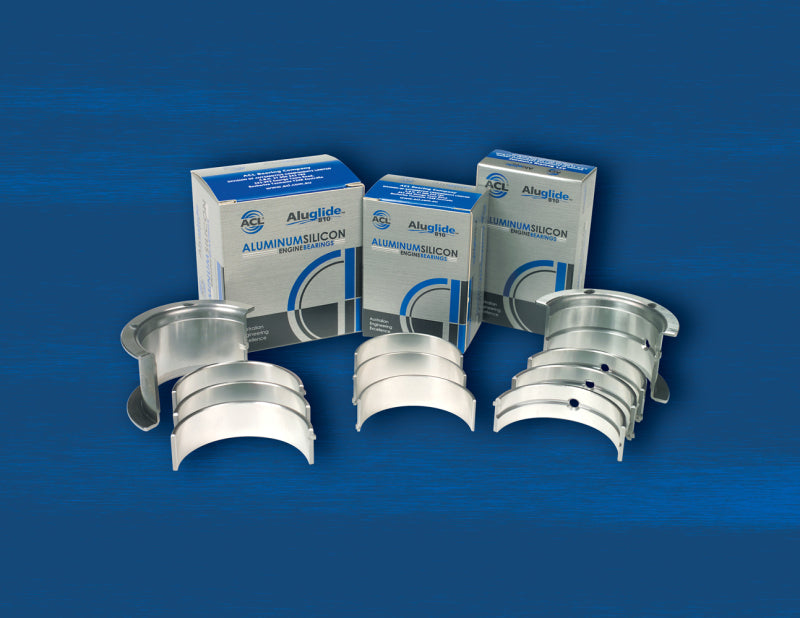

ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75
ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75
Aluglide rod and main bearings were developed for OEM engines and have the inherent physical properties perfectly suited for replacement applications. The proprietary composition is comprised of aluminum, tin and silicon. This metallurgy mix, combined with a steel backing, provides excellent characteristics such as strength, anti-seizure, anti-wear, embeddability and anti-corrosion.
Please measure your engine clearances and order bearing size accordingly to standard shaft size!
* Notes:
- Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE. Images may be generic and may not represent actual product.
| PART NUMBER | 4B2746A | |
|---|---|---|
| AVAILABLE SIZES | STD, 0.25, 0.50, 0.75, 1.0 |
|
| OIL CLEARANCE | Standard | |
| HALF TYPE | Identical Halves | |
| MATERIAL | Aluminum, Tin and Silicon | |
| MIN. STD. SHAFT SIZE | 1.9670" / 49.961mm | |
| MAX. STD. SHAFT SIZE | 1.9675" / 49.974mm | |
| MIN. HOUSING BORE | 2.0866" / 53.000mm | |
| MAX. HOUSING BORE | 2.0871" / 53.013mm | |
| MAX BEARING THICKNESS | 0.0594" / 1.508mm | |
| MAX. OVERALL LENGTH | 0.787" / 20.00mm | |
| NOTES | Fits KA24E or KA24DE engines | |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1998 | Nissan | 240SX | Base, SE |
| 1991 - 1998 | Nissan | 240SX | LE |
| 1989 - 1990 | Nissan | 240SX | XE |
ACL Aluglide Rod Bearing Set Nissan KA24E/KA24DE Size: 0.75
Sale price$10.44 USD
