Accel Ignition Coil - SuperCoil - GM Vortec engine 1996-2001 5.0/5.7/7.4L
IGNITION COIL - SUPERCOIL - GM VORTEC ENGINE 1996-2001 5.0/5.7/7.4L

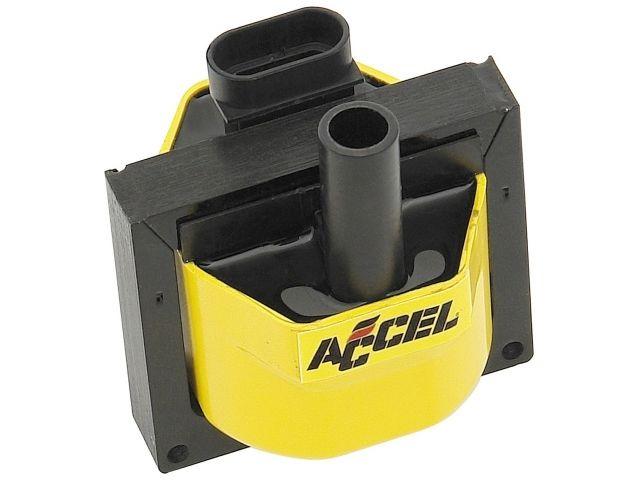

This ACCEL GM HEI remote mount ignition coil is compatible with late model computer controlled remote mount HEI systems.
Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model GM computer controlled remote mount HEI systems. Direct bolt-in, plug-in replacement. Can also work with CD ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer and resists corrosion better than aluminum. Comes complete with new mounting hardware. High dielectric strength ACCEL Yellow over molded housing. Output is 48,000 volts with 0.2 ohms resistance.
Features:
- 10-15% More Energy
- Direct Plug In Replacement Direct OE Fit
- Advanced Bobbin Technology
- Highly Specialized Silicone Magnetic Steel Cores
- Standard Motor Products SMP Dr-49
- MSD 8231
specifications:
- Application: GM
- Brand: ACCEL
- Color :Yellow
- Emission Code: 3
- Maximum Voltage: 48,000 volts
- Peak Increase in Energy vs. OE: 11%
- Primary Resistance: 0.2 Ohms
- Product Type: Ignition Coils
- Quantity: 1
- Quantity Per Pkg.: 1
- Secondary Resistance :6.7 k Ohms
- Turns Ratio: 92:1
