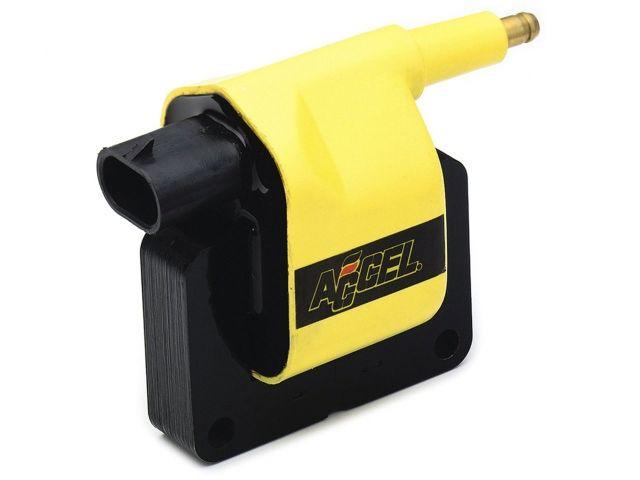

Accel Ignition Coil

GNITION COIL - SUPERCOIL - FOR DODGE/JEEP MAGNUM 1990-1997 REMOTE

This ACCEL SuperCoil ignition coil fits Dodge Magnum Truck / Jeep 1990-97.

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel C-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, crisper throttle response and more high RPM power. Compatible with late model Dodge/Jeep J-TEC computer controlled ignition system and MOPAR Performance ignition computers. Direct bolt-in, plug-in replacement. Can also work with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition systems. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy transfer efficiency and resists corrosion better than aluminum. High dielectric strength "ACCEL Yellow" over molded housing. Features:

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Standard Motor Products SMP Uf-198
• MSD 8228

Application Chrysler

• Dodge
• Jeep

SPECIFICATIONS:

• Brand ACCEL
• Color Yellow
• Emission Code 3
• Maximum Voltage 42,000 Volts
• Peak Increase in Arc Duration vs. OE 23%
• Peak Increase in Current vs. OE 17%
• Peak Increase in Dwell vs. OE 36%
• Primary Resistance 1.0 Ohms
• Product Type Ignition Coils
• Quantity 1
• Quantity Per Pkg. 1
• Secondary Resistance 12.7 k Ohms
• Turns Ratio 76:1
• Warranty Limited 90 Day Warranty
• Weight 1.0000
