Fabtech 8" Radius Arm System w/ Dirt Logic 4.0 Coilovers & Rear Dirt Logic

8" Radius Arm System w/ Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks
Description

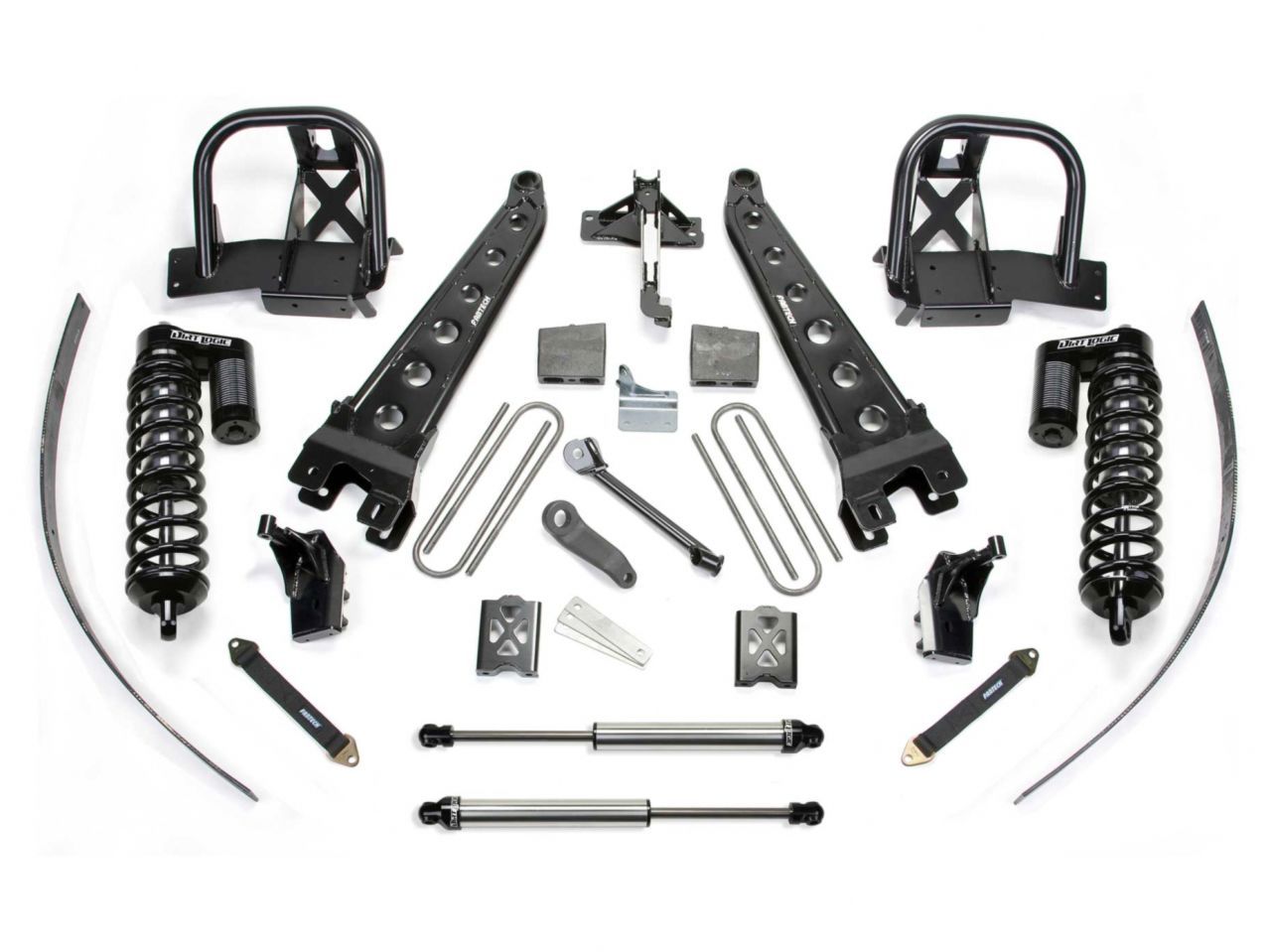

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is an add-a-leaf and a block & u-bolt kit.
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Add-a-leafs
- Rear Block & U-bolt Kit
Additional Information
MODEL: F250
SYSTEMS: RADIUS ARM SYSTEM
MAKE: FORD
LIFT: 8"
DRIVE: 4WD
YEAR: 2005, 2006, 2007
Included Shocks
FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0? OD Stainless Steel Body
- 3 5/8? OD Billet Aluminum Piston
- 1 1/4? NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4? Spherical Ball Mounting Ends
