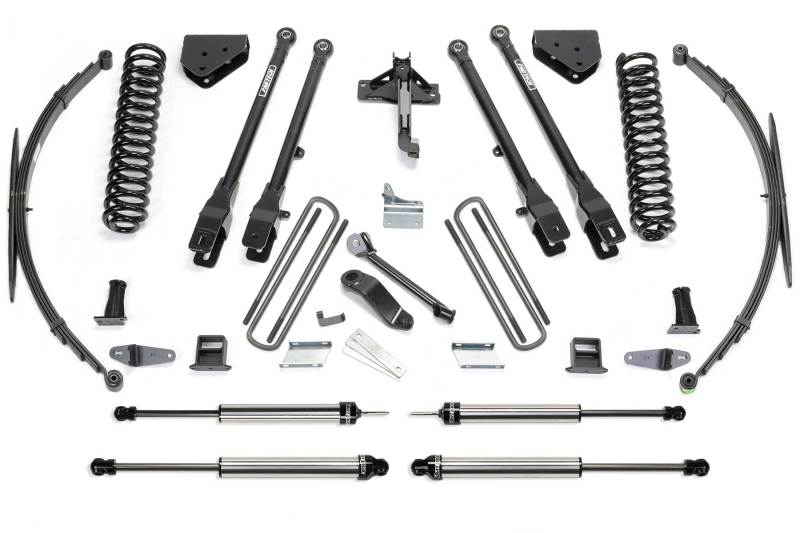

Fabtech 8" 4 Link System w/ Dirt Logic Shocks
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is replacement Leaf Springs & u-bolt kit.
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear U-bolt Kit
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.253 OD Stainless Steel Body
- 2.03 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2015 - 2016 | Ford | F-250 Super Duty | Base |
2009 - 2010 | Ford | F-250 Super Duty | Cabela's |
2008 - 2014 | Ford | F-250 Super Duty | FX4 |
2008 - 2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
2013 - 2016 | Ford | F-250 Super Duty | Platinum |
2008 - 2016 | Ford | F-250 Super Duty | XL, XLT, King Ranch, Lariat |
2009 - 2010 | Ford | F-350 Super Duty | Cabela's |
2008 - 2009 | Ford | F-350 Super Duty | FX4 |
2008 - 2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
2013 - 2016 | Ford | F-350 Super Duty | Platinum |
2008 - 2016 | Ford | F-350 Super Duty | XL, King Ranch, XLT, Lariat |
