Fabtech 7" 4 Link System w/Coil Spring & Front Dual Stealth Shocks & Rear
This cutting edge system converts the factory front Radius Arm suspension to a smooth riding 4 Link configuration. The advantages of a 4 Link are well known. Less caster change, a smoother ride quality with superior articulation and this system delivers all of it and then some.
Heavy duty 1/4? thick steel brackets bolt to the bottom of the frame and transmission crossmember and are offset for wide tire clearance while providing a secure mounting for the 4 Links.
The Links are constructed of thick wall 2? OD DOM tubing that feature Fabtech's proven 5 Ton 1? Uniball bearings for maximum articulation and strength. The Links are a straight tube design to eliminate possible bending under aggressive offroad impacts.
The front and rear Trac bars on 2500's are relocated with 1/4? thick steel brackets. Super stout and gusseted bump stop extension brackets control the travel in rough driving conditions.
To further improve the ride Fabtech includes their exclusive front straight Coil Springs and patent pending Angle Mounts to completely transform the ride quality of the vehicle. On the rear of 2500's dual rate Coil Springs are provided for load capacity and a smooth ride. The combination of Fabtech's front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

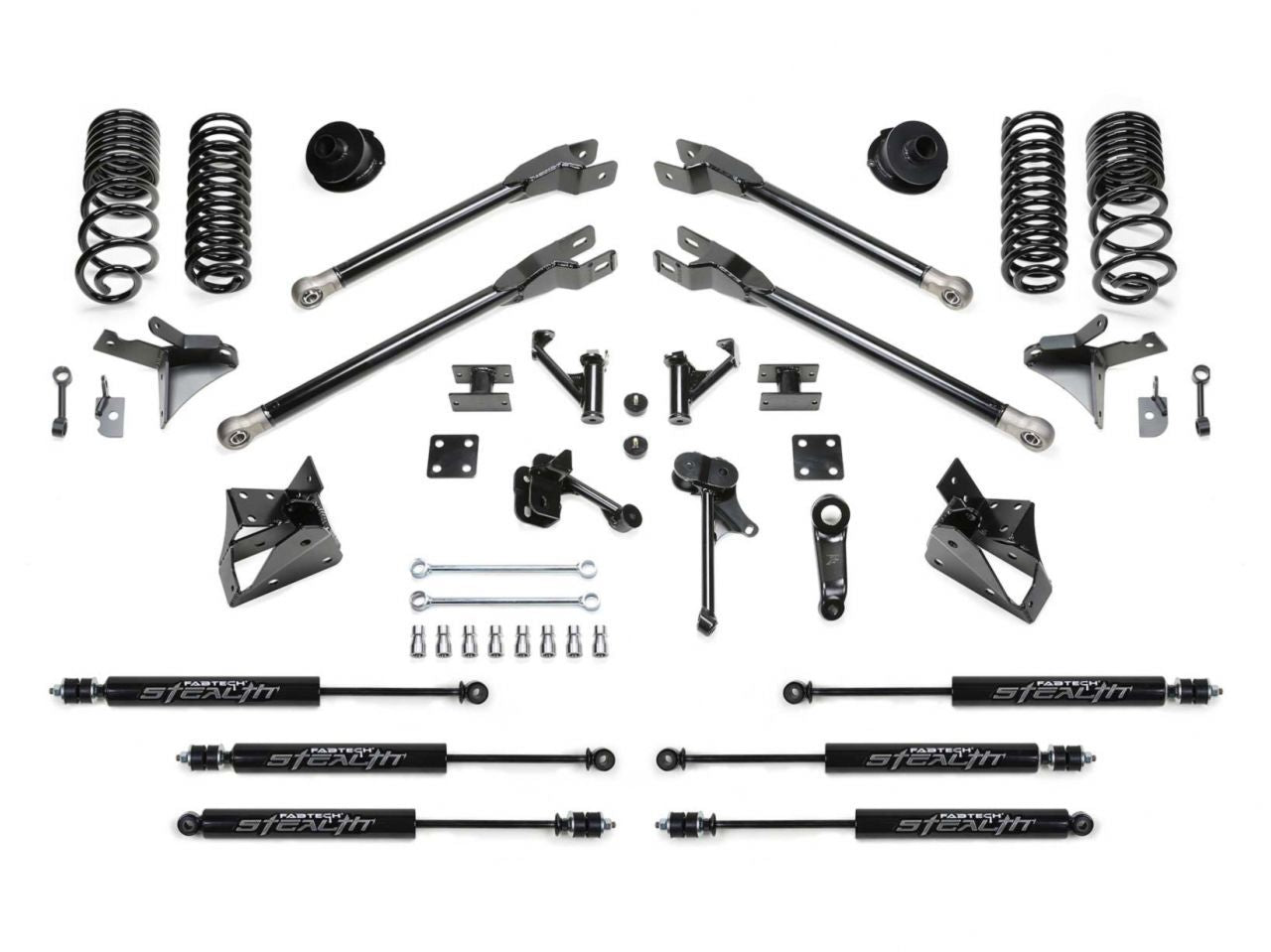

- Front Straight Coil Springs
- Front Angled Spring Mounts
- Fabtech 2? OD Link Arms
- Front & Rear Steel Bump Stop Extensions
- Front & Rear Track Bar Brackets
- Pitman Arm
- Rear Dual Rate Coil Springs
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
