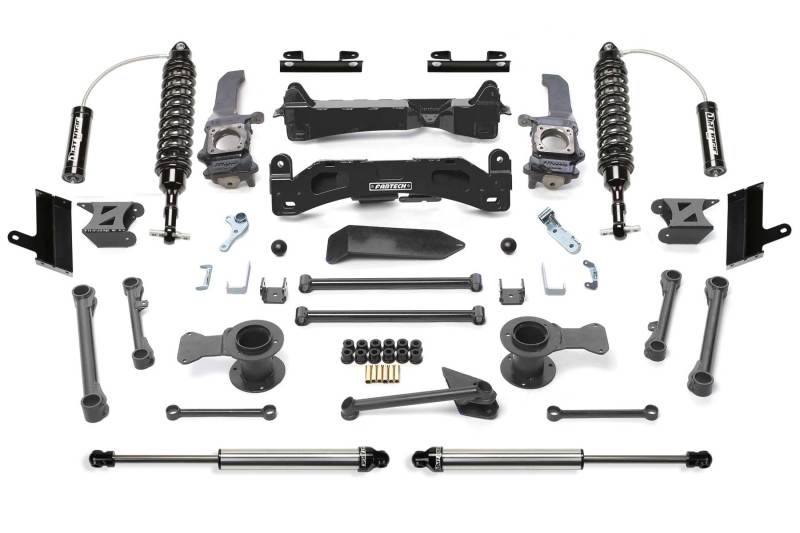

Fabtech 6In. Performance System w/ Front Dirt Logic 2.5 Resi Coilovers

2015-17 TOYOTA 4RUNNER 4WD

This Toyota 4Runner suspension system features Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain for offroad use.

The front suspension is controlled with Fabtechs legendary stainless steel Dirt Logic 2.5 Resi Coilovers for outstanding damping capacity with a superior highway ride.

Rear lift is accomplished with steel coil spring spacers that retain the Toyota 4Runner coil springs for a smooth ride. Heavy duty Fabtech control link arms replace the factory arms to re-position the tire in the wheel well with the additional ride height. A stout 1/4" thick steel bracket relocates the rear Track Bar to keep the vehicle tracking proper. Rear shocks include the Dirt Logic 2.25.

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.53 OD Stainless Steel Body
• 2.253 OD Billet Aluminum Piston
• 7/83 NitroSteel® Black Piston Rod
• Cold Wound Coil Springs
• Adjustable Coilover Construction
• 5/83 Spherical Ball Mounting Ends
• 2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

Vehicle Fitments:
