Fabtech 6" RTS System W/ Performance Shocks
6? RTS System W/ Performance Shocks
Fabtech's cutting edge RTS® system has now been developed for the all new GM HD platform. The 6" RTS® utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.

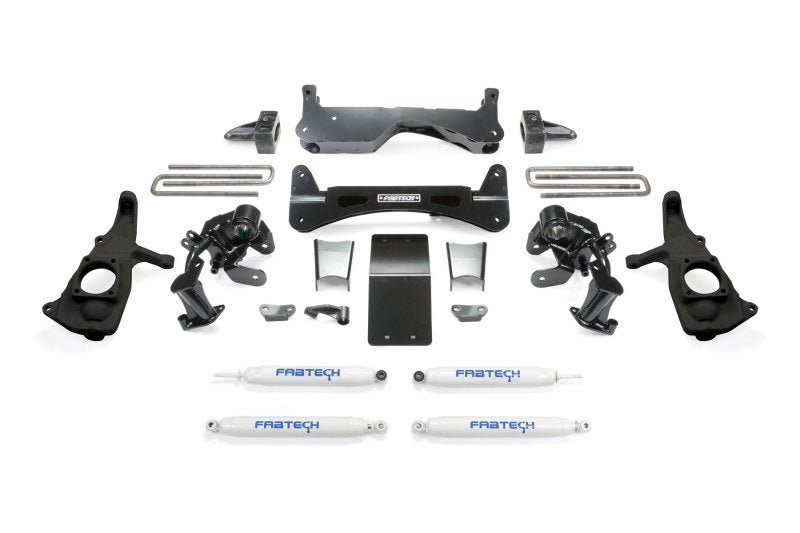

- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- RTS® Torsion Bar Brackets
- Billet Sway Bar End Links
- Rear Block & U-bolt Kit
Included Shocks
Performance Twin Tube Shock
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Additional Information
| YEAR | 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
|---|---|
| MAKE | GM |
| MODEL | C2500HD, K2500HD |
| DRIVE | 2WD, 4WD |
| SYSTEMS | RTS SYSTEM |
| LIFT | 6" |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2018 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2018 | Chevrolet | Silverado 2500 HD | LT, WT, LTZ |
| 2015 - 2018 | Chevrolet | Silverado 3500 HD | High Country |
| 2014 - 2018 | Chevrolet | Silverado 3500 HD | WT, LTZ, LT |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | SLE, Denali, SLT |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2014 - 2019 | GMC | Sierra 3500 HD | SLT, Denali, SLE |
| 2014 | GMC | Sierra 3500 HD | WT |
