Fabtech 6" Performance System w/ Performance Shocks

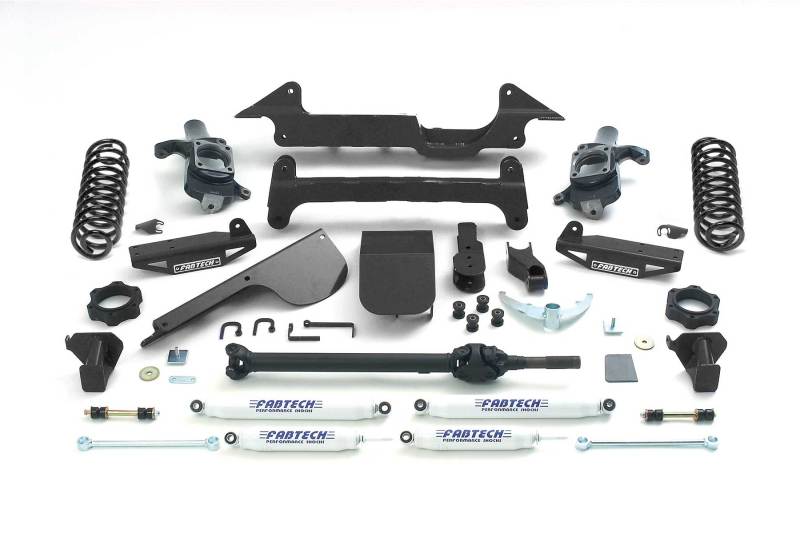

Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2's fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4" thick skid plates, one for the front differential and one for the transfer case. Rear lift comes from replacement coil springs that are driver and passenger specific.
- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Two 1/4" Thick Skid Plates
- Front CV Driveshaft
- Rear Coil Springs
Systems: Performance System
Make: Hummer
Drive: 4WD
Lift: 6"
Year: 2003-2008
- Tire Size - 37/12.50R17 Wheel Size - 17×10 w/ 4 5/8in BS w/minor trimming
- Tire Size - 37/13.50R20 Wheel Size - 20×10 w/ 5in BS w/minor trimming
- Tire Size - 38/15.50R18 Wheel Size - 18×10 w/ 5in BS w/minor trimming
- Tire Size - 40/13.50R17 Wheel Size - 17×10 w/ 4 5/8in BS w/minor trimming
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2008 | Hummer | H2 | Base |
| 2005 - 2008 | Hummer | H2 | Luxury, Adventure |
| 2007 | Hummer | H2 | Special Edition |
