Fabtech 6? Performance System w/ Front Stealth Shocks & Rear Standard Shocks
6? Performance System w/ Front Stealth Shocks & Rear Standard Shocks
Lift is accomplished via one-piece ductile iron drop down steering knuckles attaching to heavy duty 1/4" thick, high arched lower control arm crossmembers. Fabtech's combination of steering knuckles and high arched crossmembers provides superior ground clearance for the true offroader. The front differential is relocated with a cradle style bracket using bushings at just the proper angle to allow the use of the factory front driveshaft, without vibration on AutoTrac models. Solid steel billet sway bar end links with urethane bushings retain the factory front sway bar angle. The stock upper control arms and steering centerlink are retained in the factory position and do not have to be removed for installation. The front suspension is completed with crossmember impact struts and torsion bar drop down brackets.

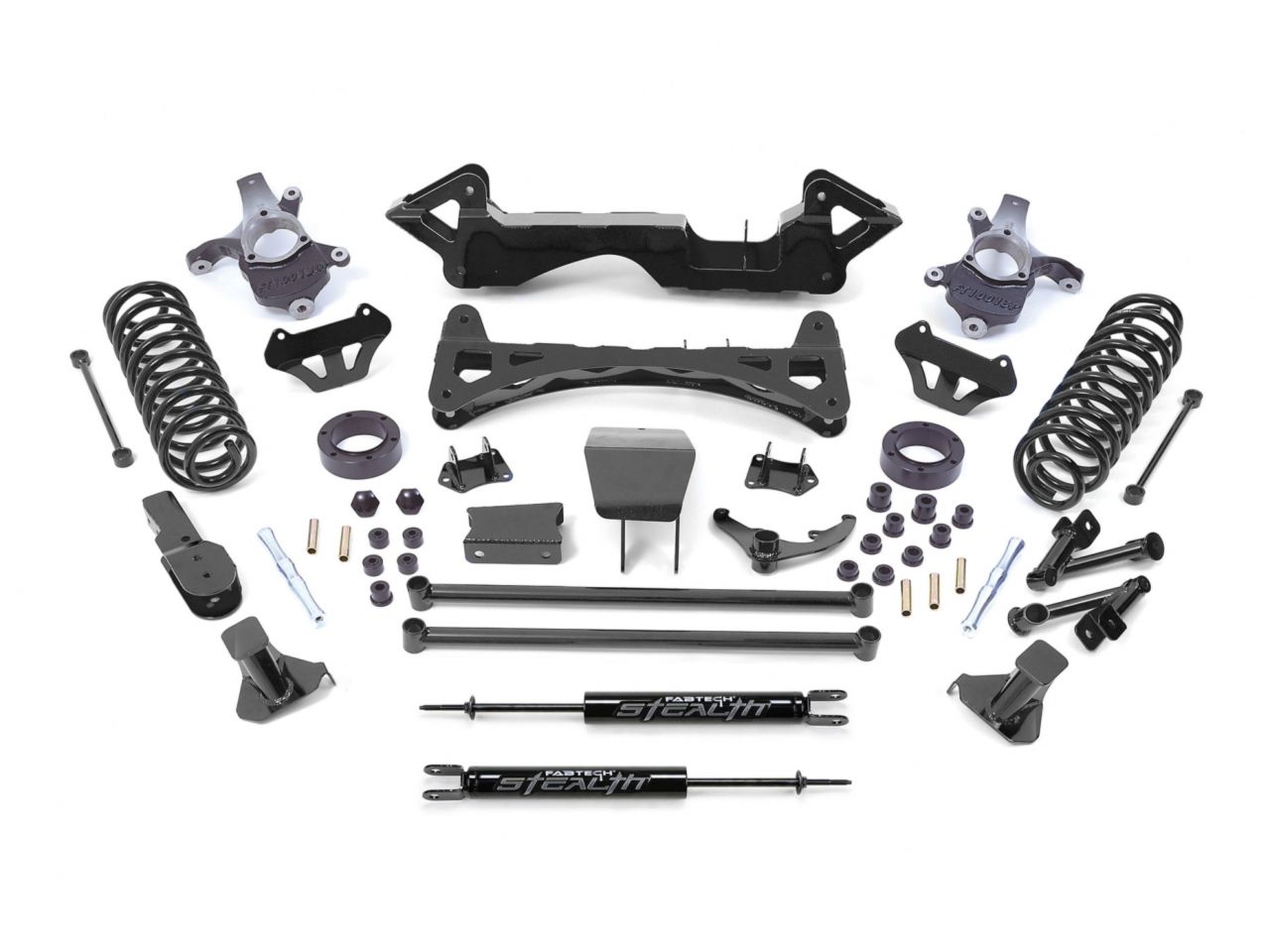

- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Impact Struts
- Billet Sway Bar End Links
- Rear Coil Springs
Included Shocks
Stealth Monotube Shock
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Additional Information
| MAKE | GM |
|---|---|
| MODEL | K1500 SUT, K1500 SUV |
| DRIVE | 4WD |
| YEAR | 2000, 2001, 2002, 2003, 2004, 2005, 2006 |
| SYSTEMS | PERFORMANCE SYSTEM |
| LIFT | 6" |
