Fabtech 6" Performance System w/ Front Performance Shocks & Rear Load Leveling
Fabtech 6" Performance System w/ Front Performance Shocks & Rear Load Leveling
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policy6" Performance System w/ Front Performance Shocks & Rear Load Leveling Shocks
Description

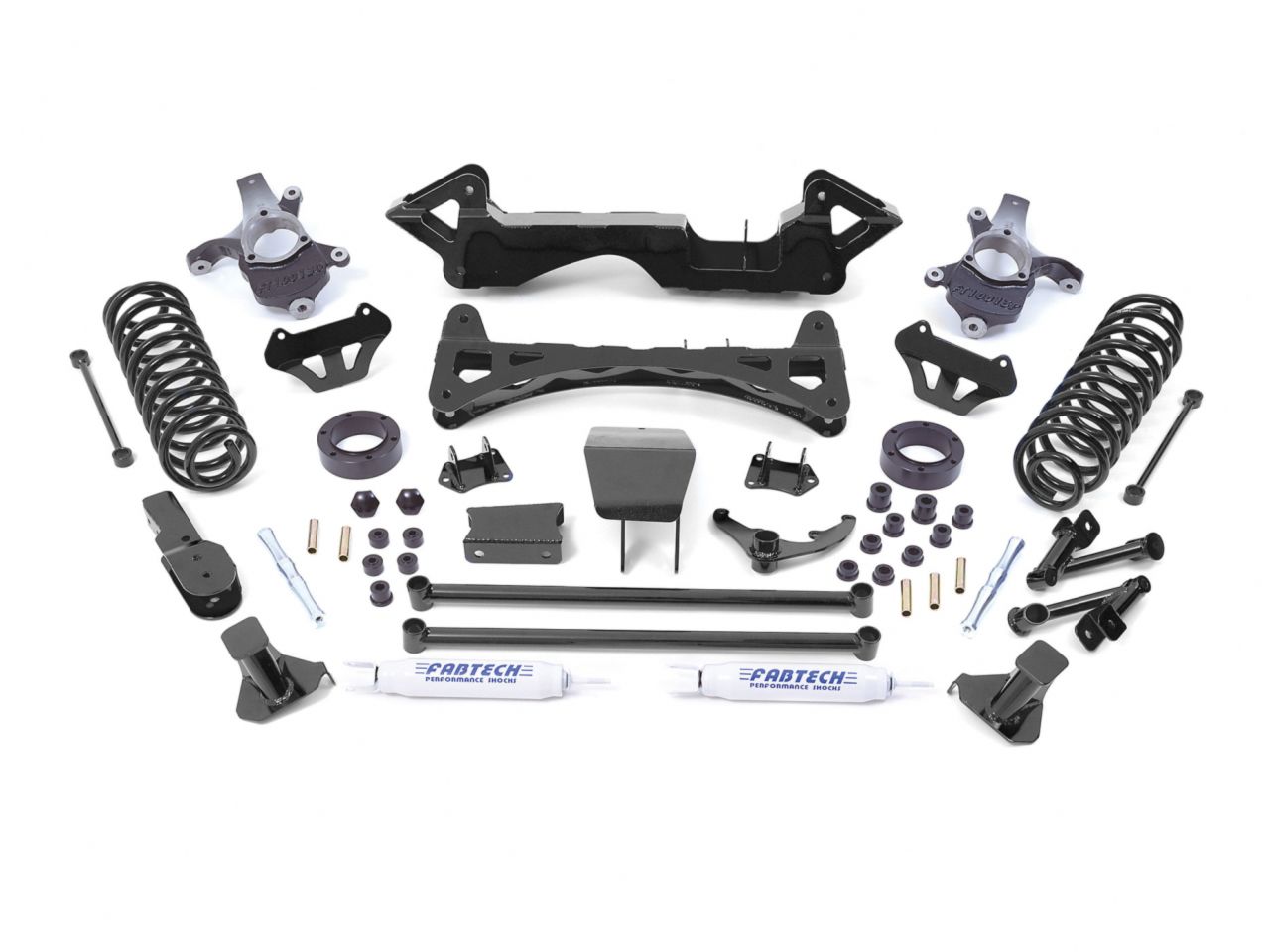

Lift is accomplished via one-piece ductile iron drop down steering knuckles attaching to heavy duty 1/4" thick, high arched lower control arm crossmembers. Fabtech's combination of steering knuckles and high arched crossmembers provides superior ground clearance for the true offroader. The front differential is relocated with a cradle style bracket using bushings at just the proper angle to allow the use of the factory front driveshaft, without vibration on AutoTrac models. Solid steel billet sway bar end links with urethane bushings retain the factory front sway bar angle. The stock upper control arms and steering centerlink are retained in the factory position and do not have to be removed for installation. The front suspension is completed with crossmember impact struts and torsion bar drop down brackets.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Impact Struts
- Billet Sway Bar End Links
- Rear Coil Springs
Additional Information
MAKE: GM
MODEL: K1500 SUT, K1500 SUV
DRIVE: 4WD
YEAR: 2000, 2001, 2002, 2003, 2004, 2005, 2006
SYSTEMS: PERFORMANCE SYSTEM
LIFT: 6"
Included Shocks
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
