Fabtech 6" Performance System w/ Front Dirt Logic 4.0 Coilovers & Rear Dirt
6" Performance System w/ Front Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks

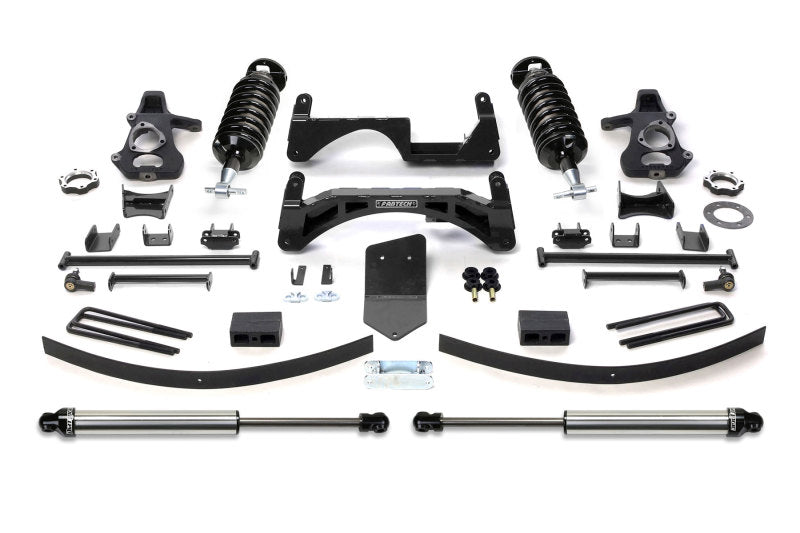

Our 6" Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35" tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4" thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. The Performance system offers Dirt Logic 4.0 Adjustable Coilover shock in place of the factory front coilover assembly. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle's computer.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Impact Struts
- Rear Add-a-leaf
- Rear Block & U-bolt Kit
Additional Information:
MAKE: GM
MODEL: K1500
DRIVE: 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013
SYSTEMS: PERFORMANCE SYSTEM
LIFT: 6"
Included Shocks:
FRONT DIRT LOGIC 4.0 COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0? OD Stainless Steel Body
- 3 5/8? OD Billet Aluminum Piston
- 1 1/4? NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4? Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
| 2007 - 2013 | Chevrolet | Silverado 1500 | LS, WT, Base, LT, LTZ |
| 2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
| 2009 - 2013 | GMC | Sierra 1500 | Hybrid |
| 2007 - 2013 | GMC | Sierra 1500 | SLE, Denali, WT, SL, SLT |
| 2010 - 2013 | GMC | Sierra 1500 | XFE |
