Fabtech 6" Performance System w/ Front Dirt Logic 2.5 Resi Coilovers
Our Ram 1500 6" system features Fabtech's proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain.
The Performance system features Dirt Logic 2.5 Resi Coilover shocks providing superior damping control for the aggressive driver.
Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle.

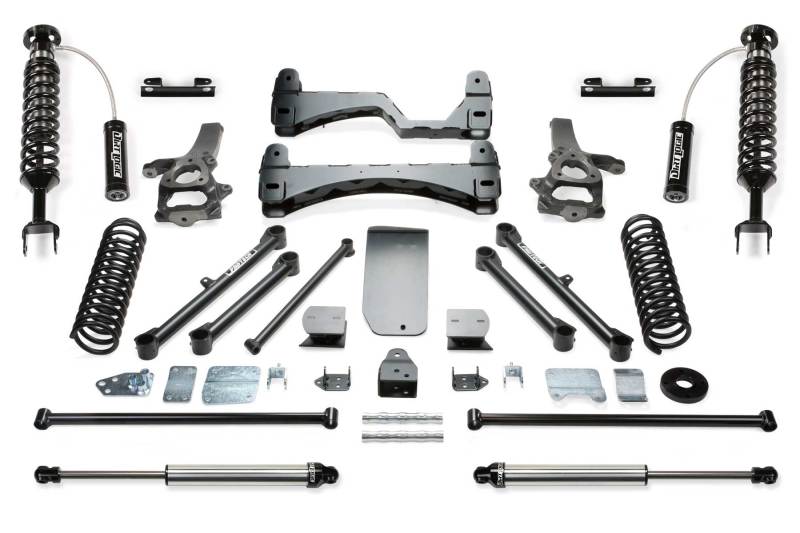

- 1/4" Thick High Arched Crossmembers
- Extended Length Ductile Iron Spindles
- 1/4" Thick Differential Skid Plate
- Front Dirt Logic 2.5 Resi Coilovers
- Impact Struts
- Rear Coil Springs
- Rear Upper & Lower Link Arms
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009 - 2010 | Dodge | Ram 1500 | Laramie, SLT, TRX, ST, Sport, TRX4 |
| 2011 | Ram | 1500 | Outdoorsman, Tradesman, SXT, SLT, Laramie Longhorn, Sport, Laramie, ST, Big Horn |
