Fabtech 6" Performance System w/ Front Dirt Logic 2.5 Resi Coilovers & Rear
6" Performance System w/ Front Dirt Logic 2.5 Resi Coilovers & Rear Dirt Logic Shocks
Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Performance system includes our Dirt Logic 2.5 Resi Coilover shocks for aggressive offroad use with a good highway ride and utilizes a 3" block and u-bolt system for rear lift.

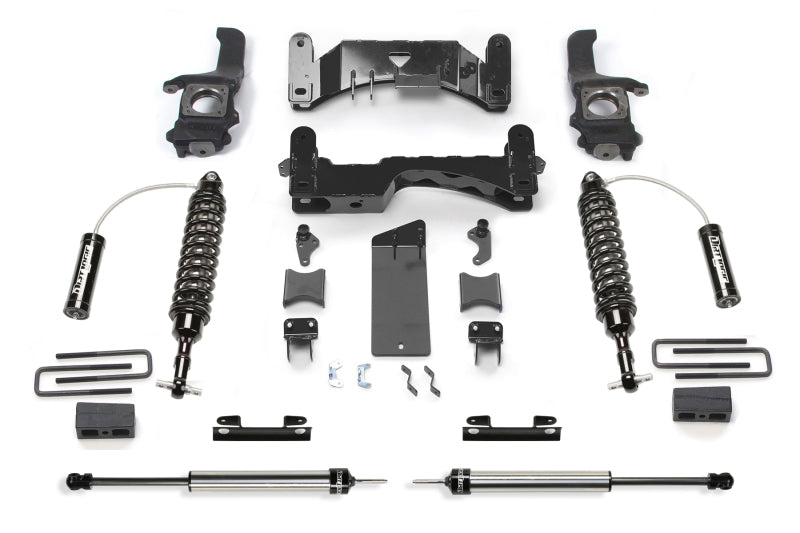

- Heavy Duty 1/4? Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4? Thick Steel Skid Plate
- Front Dirt Logic 2.5 Resi Coilovers
- Impact Struts
- Rear Block & U-bolt Kit
Included Shocks:
Front Dirt Logic 2.5 Resi Coilover
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
- 2.50? OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
Rear Dirt Logic 2.25 Shock
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 | Toyota | Tundra | Ltd |
| 2020 | Toyota | Tundra | TRD Off-Road, Base, TRD Sport, SX |
| 2016 - 2020 | Toyota | Tundra | TRD Pro, 1794 Edition, SR, SR5, Platinum, Limited |
