Fabtech 6" Performance System w/ Front Dirt Logic 2.5 Resi Coilovers

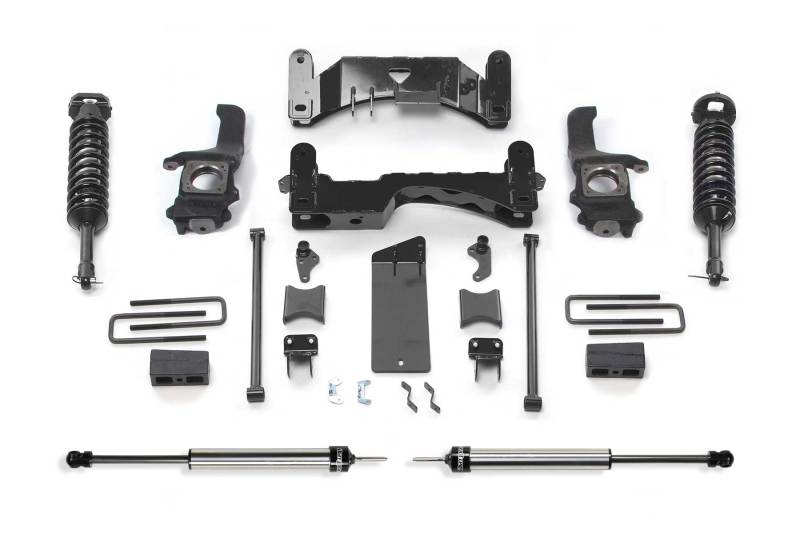

Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Performance system includes our Dirt Logic 2.5 Coilover shocks for aggressive offroad use with a good highway ride and utilizes a 3" block and u-bolt system for rear lift.
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4? Thick Steel Skid Plate
- Front Dirt Logic 2.5 Coilovers
- Impact Struts
- Rear Block & U-bolt Kit
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2013 | Toyota | Tundra | Base |
| 2007 - 2015 | Toyota | Tundra | Limited, SR5 |
| 2009 - 2015 | Toyota | Tundra | Platinum |
| 2014 - 2015 | Toyota | Tundra | SR, 1794 Edition |
| 2015 | Toyota | Tundra | TRD Pro |
