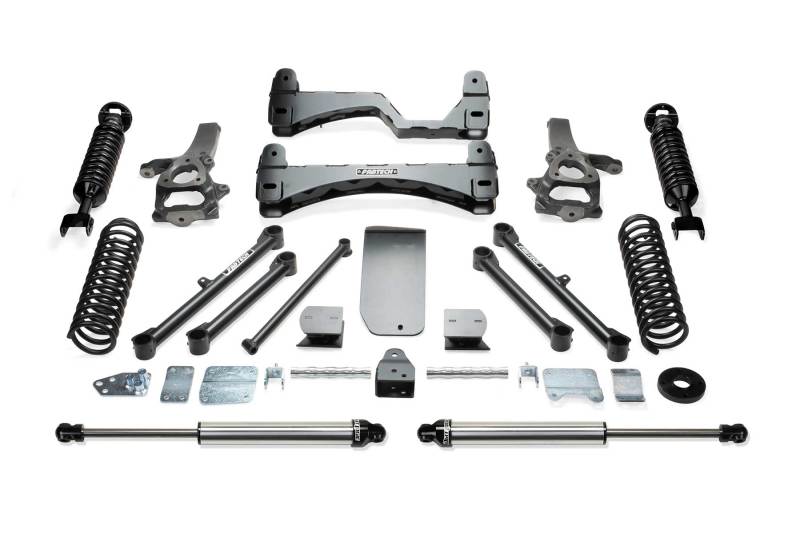

Fabtech 6? Performance System w/ Front Dirt Logic 2.5 Coilovers

SKU: 1FZ2L | MPN:  K3055DL
Usually Ships in 10-14 Days
Sale price$5,711.45 USD

Our Ram 1500 6" system features Fabtech's proven IFS technology with extended length steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain.

In the Basic system lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle.

Rear lift is accomplished with replacement performance coil springs along with new upper and lower link arms for the proper pinion angle.

Features:

  • 1/4" Thick High Arched Crossmembers
  • Extended Length Ductile Iron Spindles
  • 1/4" Thick Differential Skid Plate
  • Coilover Shock Spacers
  • Impact Struts
  • Rear Coil Springs
  • Rear Upper & Lower Link Arms

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

  • 2.5? OD Stainless Steel Body
  • 2.25? OD Billet Aluminum Piston
  • 7/8? NitroSteel® Black Piston Rod
  • Cold Wound Coil Springs
  • Adjustable Coilover Construction
  • 5/8? Spherical Ball Mounting Ends


Vehicle Fitments:

Year Make Model Submodel
2014 - 2018 Ram 1500 Lone Star, Special Service, Laramie Limited
2013 Ram 1500 R/T
2015 - 2018 Ram 1500 Rebel, Limited
2013 - 2018 Ram 1500 SXT, HFE
2012 Ram 1500 Tradesman HD
2012 - 2018 Ram 1500 Tradesman, Sport, Laramie, Laramie Longhorn, Big Horn, Outdoorsman, SLT, ST, Express
